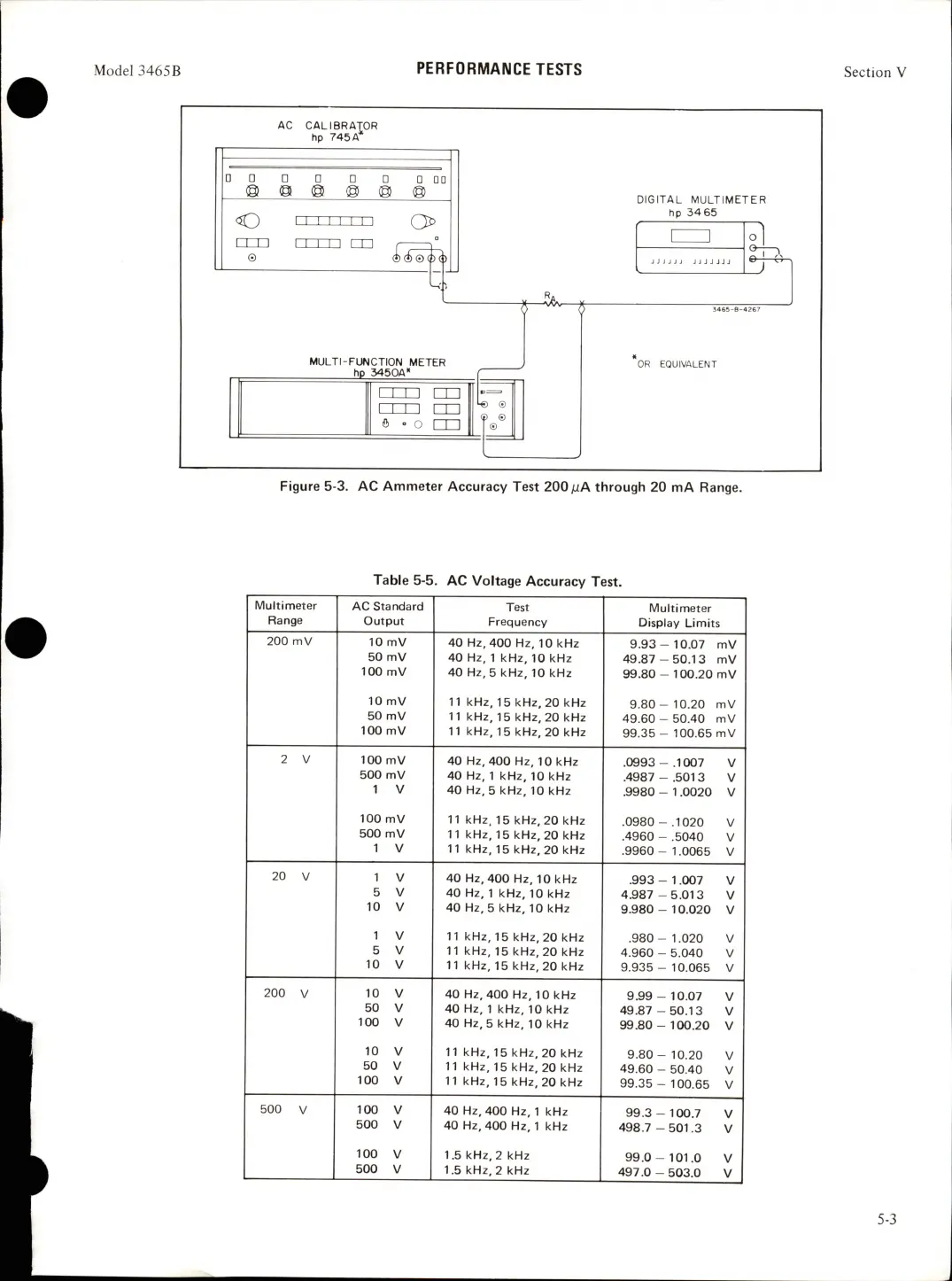

HP 3465B - Page 28

Model 3465B PERFORMANCE TESTS
Section V
AC CALIBRATOR
hp 745 A*
0 □ D
□ □ □ QD
<0 I I I I I I □ Qs
i)(^e
n~n I I I I I m
©
DIGITAL MULTIMETER
hp 34 65
j j j j j j j j j j jj j
MULTI-FUNCTION METER
hp 3450A*
m
rm m
-ft » o m
^ ©
© ©
©
3465-8-4267
OR EQUIVALENT
Figure 5-3. AC Ammeter Accuracy Test 200/tA through 20 mA Range.
Table 5-6. AC Voltage Accuracy Test.
Multimeter
AC Standard
Test
Multimeter
Range
Output
Frequency
Display Limits
200 mV
10 mV
40 Hz, 400 Hz, 10 kHz
9.93- 10.07 mV
50 mV
40 Hz, 1 kHz, 10 kHz
49.87 - 50.13 mV
100 mV
40 Hz, 5 kHz, 10 kHz
99.80 - 100.20 mV
10 mV
11 kHz, 15 kHz, 20 kHz
9.80- 10.20 mV
50 mV
11 kHz, 15 kHz, 20 kHz
49.60 - 50.40 mV
100 mV
11 kHz, 15 kHz, 20 kHz
99.35 - 100.65 mV
2 V
100 mV
40 Hz, 400 Hz, 10 kHz
.0993-.1007 V
500 mV
40 Hz, 1 kHz, 10 kHz
.4987 - .501 3 V
1 V
40 Hz, 5 kHz, 10 kHz
.9980 - 1.0020 V
100 mV
11 kHz, 15 kHz, 20 kHz
.0980-.1020 V
500 mV
11 kHz, 15 kHz, 20 kHz
.4960 - .5040 V
1 V
11 kHz, 15 kHz, 20 kHz
.9960 - 1.0065 V
20 V
1 V
40 Hz, 400 Hz, 10 kHz
.993 - 1.007 V
5 V
40 Hz, 1 kHz, 10 kHz
4.987-5.013 V
10 V
40 Hz, 5 kHz, 10 kHz
9.980- 10.020 V
1 V
11 kHz, 15 kHz, 20 kHz
.980 - 1.020 V
5 V
11 kHz, 15 kHz, 20 kHz
4.960 - 5.040 V
10 V
11 kHz, 15 kHz, 20 kHz
9.935- 10.065 V
200 V
10 V
40 Hz, 400 Hz, 10 kHz
9.99- 10.07 V
50 V
40 Hz, 1 kHz, 10 kHz
49.87 - 50.13 V
100 V
40 Hz, 5 kHz, 10 kHz
99.80- 100.20 V
10 V
11 kHz, 15 kHz, 20 kHz
9.80- 10.20 V
50 V
11 kHz, 15 kHz, 20 kHz
49.60 - 50.40 V
100 V
11 kHz, 15 kHz, 20 kHz
99.35 - 100.65 V
500 V
100 V
40 Hz, 400 Hz, 1 kHz
99.3-100.7 V
500 V
40 Hz, 400 Hz, 1 kHz
498.7 - 501.3 V
100 V
1.5 kHz, 2 kHz
99.0-101.0 V
500 V
1.5 kHz, 2 kHz
497.0-503.0 V
