Model 3465B
PERFORMANCE TESTS
Section V
DC STANDARD
hp 740B*
@
®
"OR EQUIVALENT
o
OUTPUT CABLE
hp I I055B
© ©
DIGITAL MULTIMETER
hp 3465
IOMiO.1%
\vv-—X
3465-0-4271

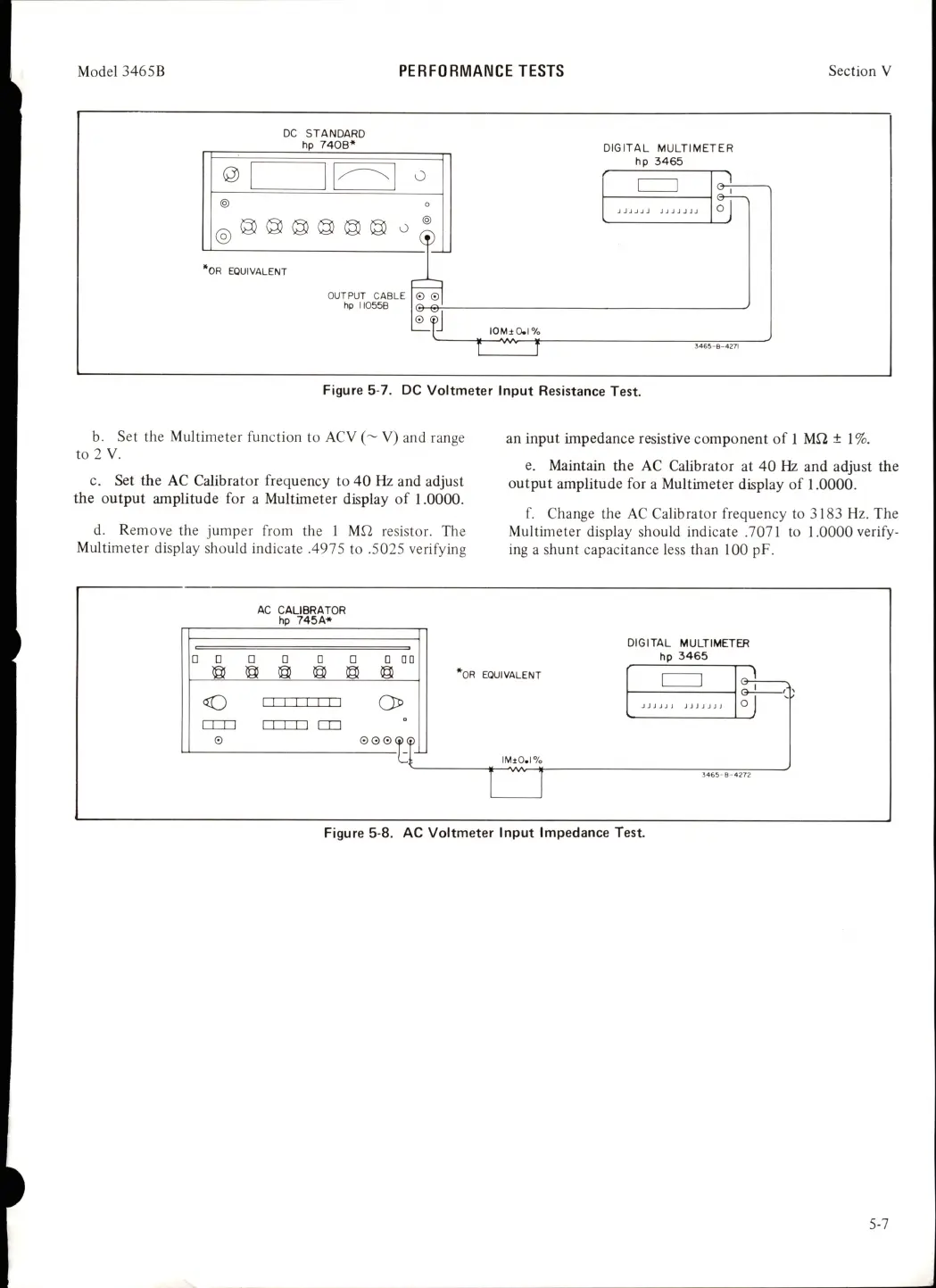

Figure 5-7. DC Voltmeter Input Resistance Test.
b. Set the Multimeter function to ACV (~ V) and range
to 2 V.
c. Set the AC Calibrator frequency to 40 Hz and adjust
the output amplitude for a Multimeter display of 1.0000.
d. Remove the jumper from the 1 Mf2 resistor. The
Multimeter display should indicate .4975 to .5025 verifying
an input impedance resistive component of 1 Mf2 ± 1%.
e. Maintain the AC Calibrator at 40 Hz and adjust the
output amplitude for a Multimeter display of 1.0000.
f. Change the AC Calibrator frequency to 3183 Hz. The
Multimeter display should indicate .7071 to 1.0000 verify
ing a shunt capacitance less than 100 pF.
AC CALIBRATOR
hp 745A*
□ □
□ D □ D 00
<sQ I I I I I 1 I I Qp
© 0©^^
-m I I I I I m
©
'OR EQUIVALENT
IM±O.I%
—vw
DIGITAL MULTIMETER
hp 3465
5465-6-4272
Figure 5-8. AC Voltmeter Input Impedance Test.
5-7
