HP 3465B - Page 41

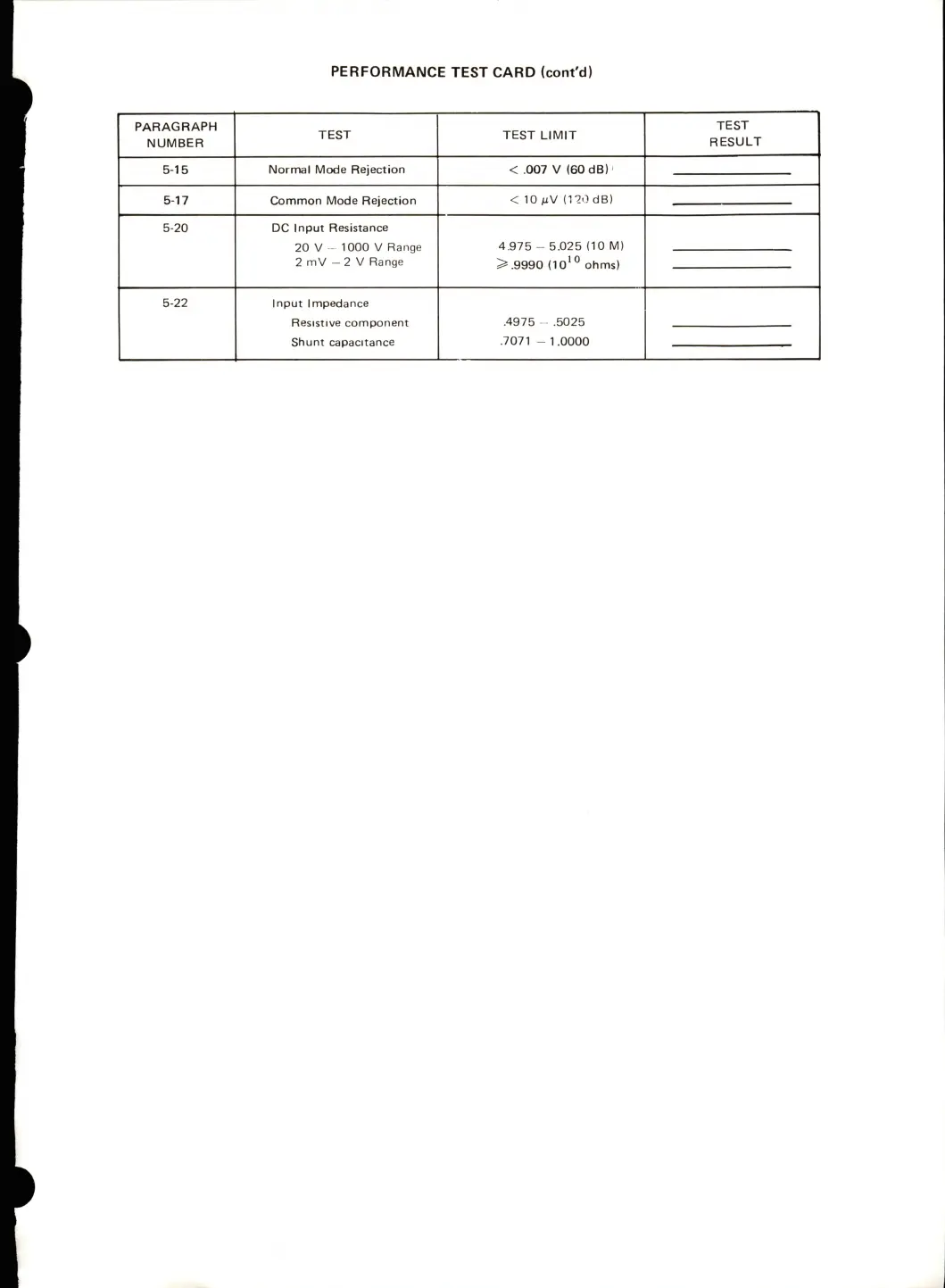

PERFORMANCE TEST CARD (cont'd)
PARAGRAPH
NUMBER
TEST
TEST LIMIT
TEST
RESULT
5-15
Normal Mode Rejection
< .007 V (60 dB) '
5-17 Common Mode Rejection
< 10 mV (1?0dB)
5-20 DC Input Resistance
20 V -- 1000 V Range
2 mV — 2 V Range
4.975 - 5.025 (10 M)
>.9990 (10'° ohms)
5-22
Input Impedance
Resistive component
Shunt capacitance
.4975 - .5025
.7071 - 1.0000
