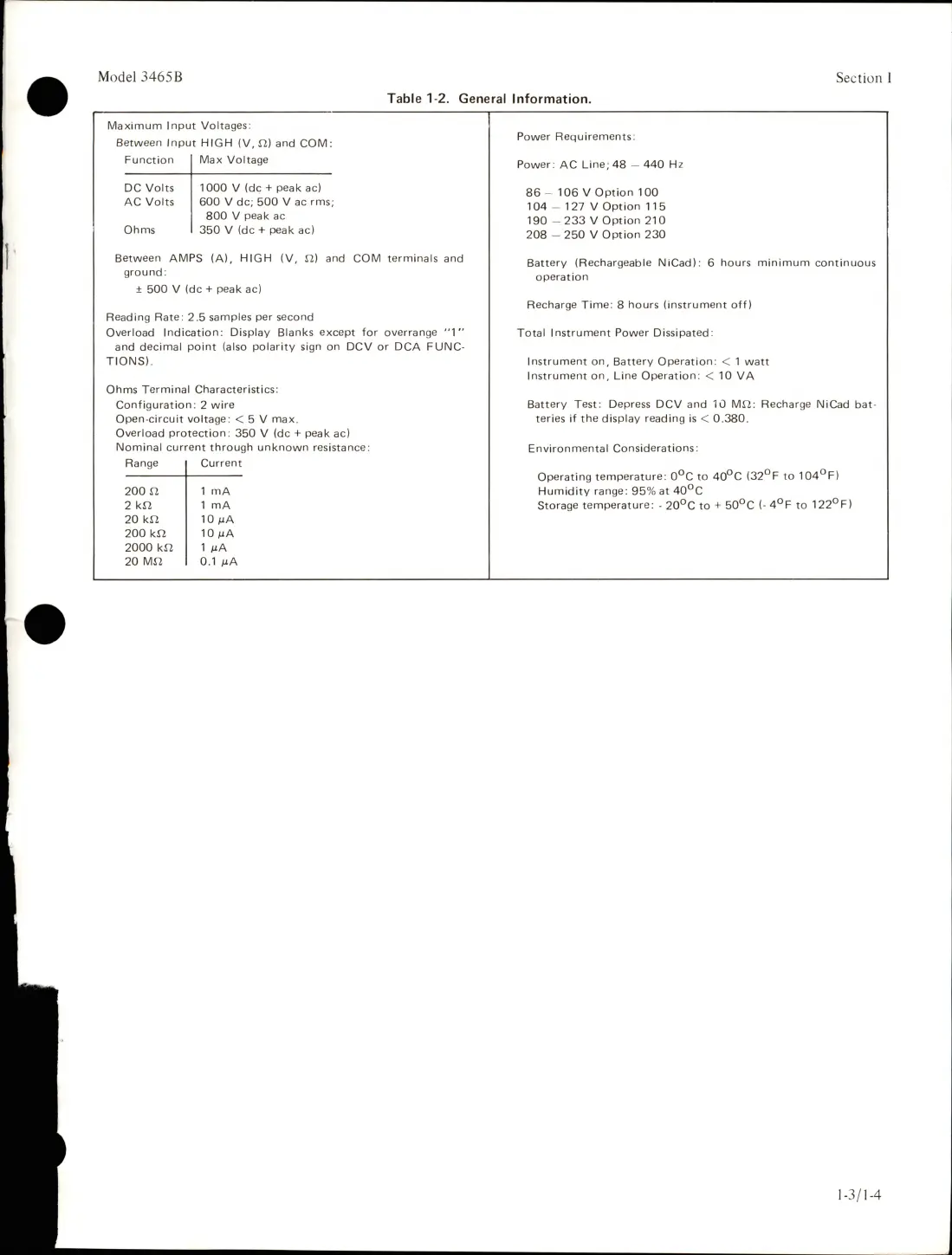

Table 1-2. General Information.
Maximum Input Voltages:
Between Input HIGH (V, H.) and COM:
Function Max Voltage
DC Volts
1000 V (dc -1- peak ac)
AC Volts 600 V dc; 500 V ac rms;
800 V peak ac
Ohms 350 V (dc + peak ac)
Between AMPS (A), HIGH (V, and COM terminals and
ground:
± 500 V (dc + peak ac}
Reading Rate: 2.5 samples per second
Overload Indication: Display Blanks except for overrange "1"
and decimal point (also polarity sign on DCV or DCA FUNC
TIONS).
Ohms Terminal Characteristics:
Configuration: 2 wire
Open-circuit voltage: < 5 V max.
Overload protection; 350 V (dc + peak ac)
Nominal current through unknown resistance:
Range
Current
200 n 1 mA
2 kJ2 1 mA
20 kii
10 mA
200 ka
IOmA
2000 kn
1 juA
20 Mn 0.1 mA
Power Requirements:
Power: AC Line; 48 — 440 Hz
86 - 106 V Option 100
104 - 127 V Option 115
190 -233 V Option 210
208 -250 V Option 230
Battery (Rechargeable NiCad): 6 hours minimum continuous
operation
Recharge Time: 8 hours (instrument off)
Total Instrument Power Dissipated:
Instrument on, Battery Operation: < 1 watt
Instrument on, Line Operation: < 10 VA
Battery Test: Depress DCV and 10 Mf2: Recharge NiCad bat
teries if the display reading is < 0.380.
Environmental Considerations:
Operating temperature: 0®C to 40°C (32°F to 104'^F)
Humidity range: 95% at 40°C
Storage temperature: - 20°C to + 50°C (-4°F to 122°F)
