HP 3PAR StoreServ 7450 - Drive PCM Leds; Drive PCM LED Descriptions

Table 3 PCM LED Descriptions (continued)
IndicatesAppearanceLEDIcon
Present and chargedOn
GreenBattery Good
Charging or disarmedFlashing
Drive PCM LEDs

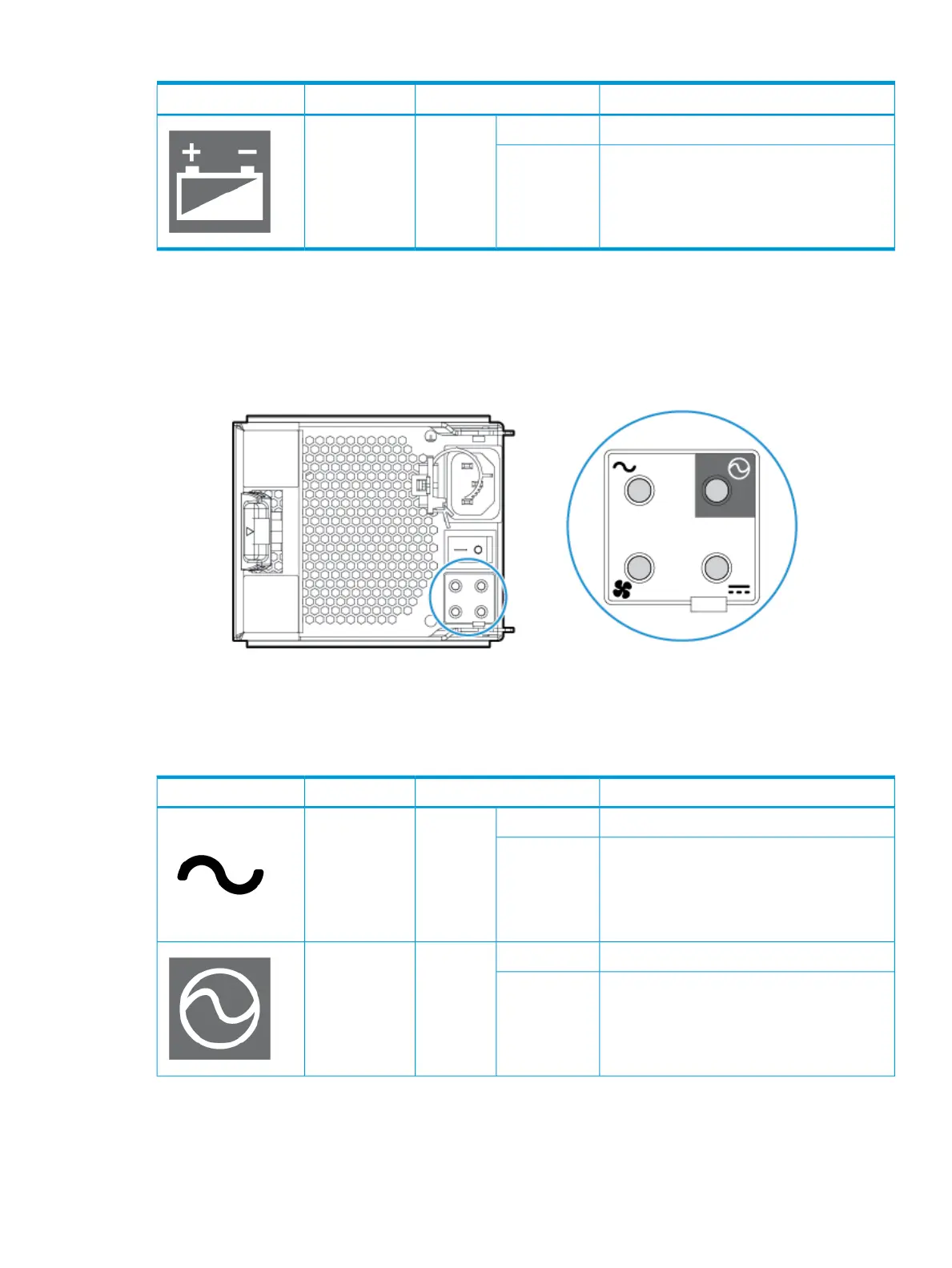

The following figure shows the drive enclosure PCM LEDs.
Figure 4 Drive PCM LEDs
The next table describes the drive PCM LED states.
Table 4 Drive PCM LED Descriptions
IndicatesAppearanceLEDIcon
No AC power or PCM faultOn
AmberAC input fail
FiPartner PCM Faulty/Off or Firmware
Download
Flashing
AC Present and PCM On / OKOn
GreenPCM OK
Standby modeFlashing
Storage System Component LEDs 11
