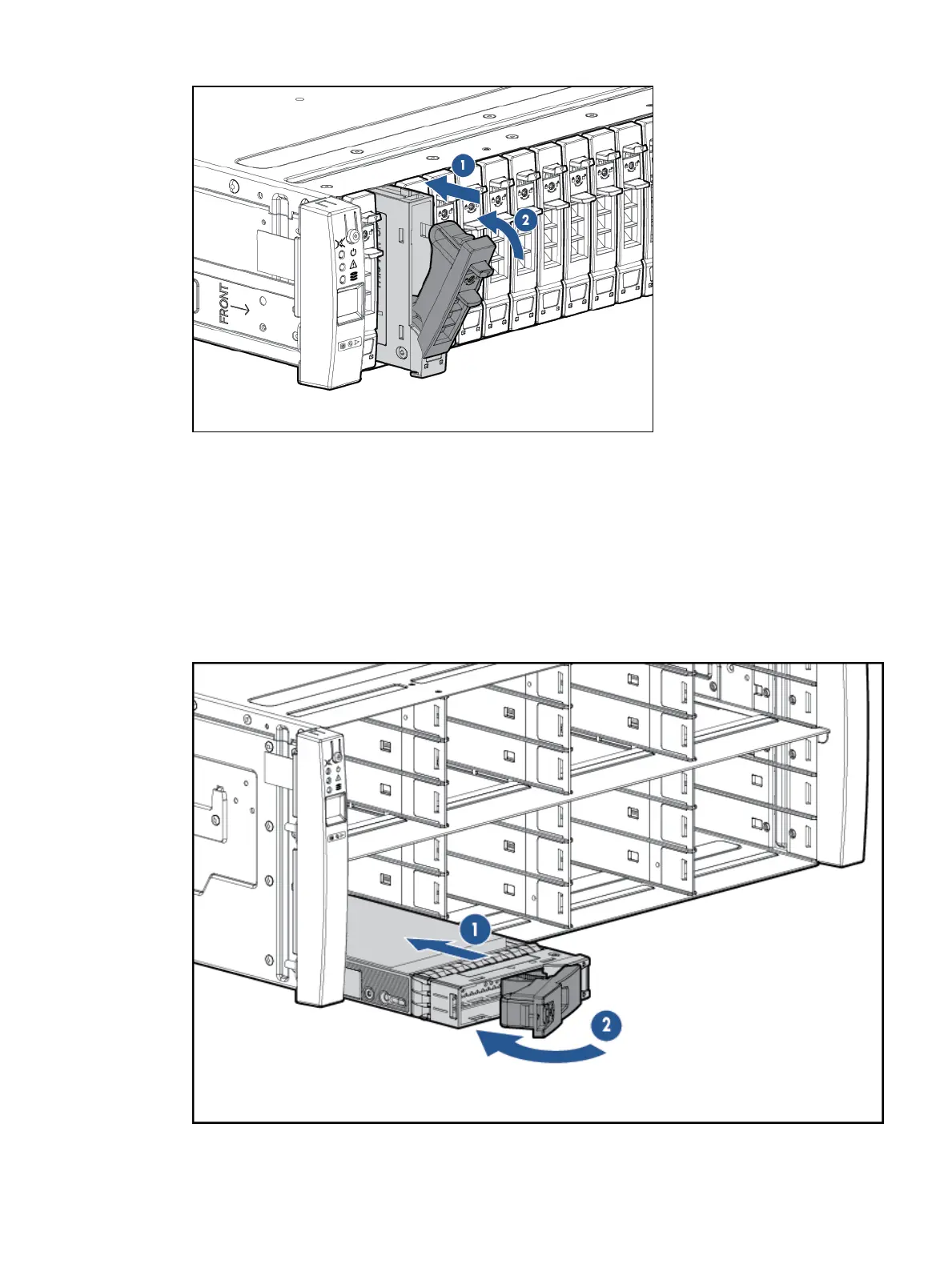

Figure 39 Installing a 2.5 inch disk drive
4. Observe the newly installed disk drive for 60 seconds to verify the amber LED turns off and
remains off for 60 seconds.
Installing a 3.5 inch disk drive (LFF)
1. Press the handle latch to open the handle.
2. Position the disk drive so the handle opens from the left and slide it into the enclosure.
3. Push firmly until the handle fully engages and clicks.
Figure 40 Installing a 3.5 inch disk drive
Repairing a Disk Drive 37
