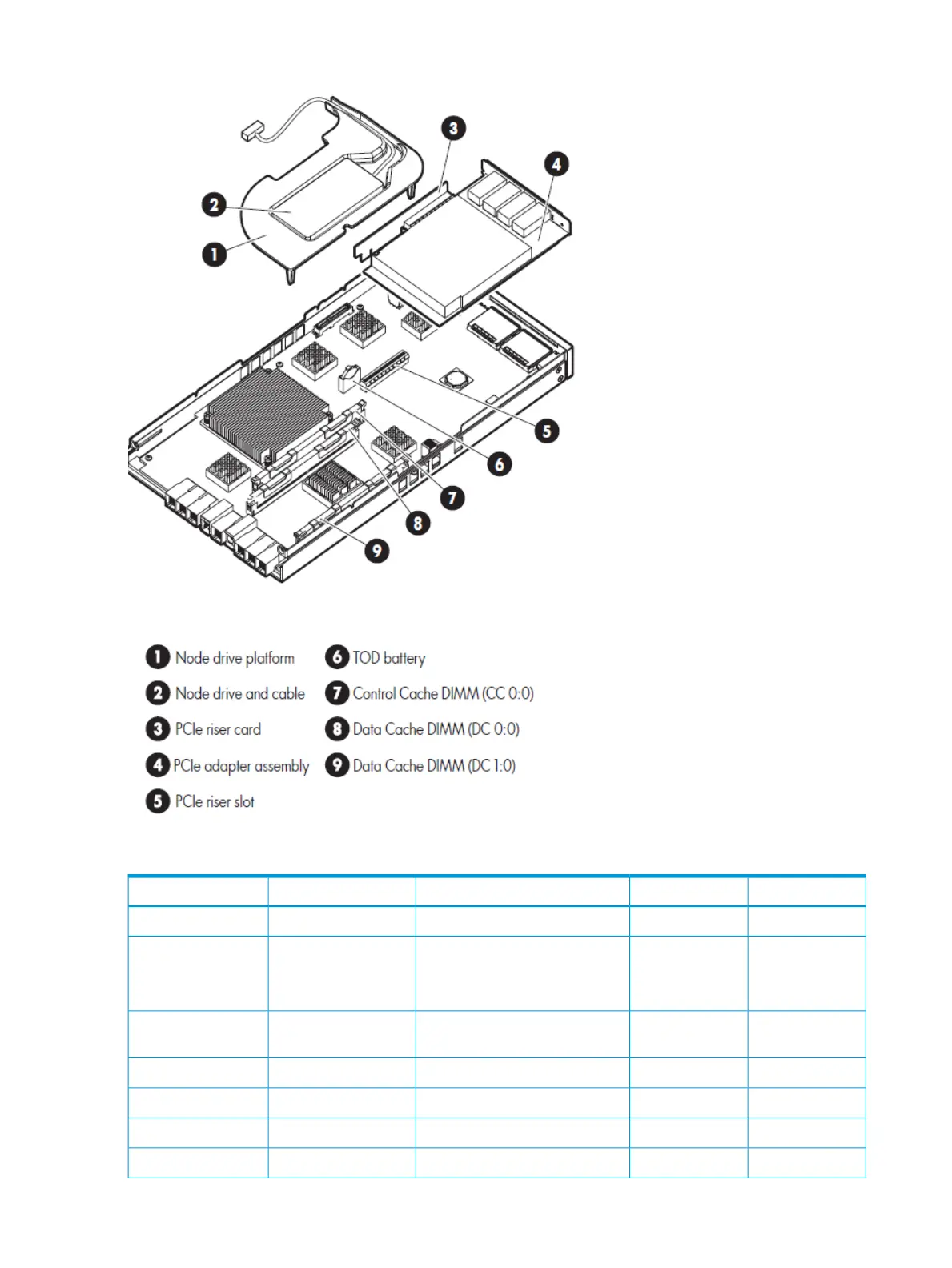

Figure 62 Internal Node Components
Figure 63 Internal Node Components
Table 28 Internal Node Components
CSR TypeQty.DescriptionPart NumberCallout
1Node drive locationN/A1
Not1SPS-Cable Node Drive SATA683807-0012
SPS-Cable Boot Drive (Node
drive cable)
683250-001
Not1SPS-Boot Drive SS 128GB SATA
SDX110
756821-0012
Not1SPS-PCIe Riser Assy683247-0013
N/AN/AN/AN/A4
N/AN/AN/AN/A5
Not1SPS-Battery Coin (TOD battery)683249-0016
68 Illustrated Parts Catalog
