Section V
Paragraph 5-25
Model 4262A
ADJUSTMENT
5-25. 10kHz MEASUREMENT ACCURACY ADJUSTMENT.
PURPOSE:
This adjustment eliminates measurement error due to stray capacitances on A12 and
A13 board assemblies and maximizes measurement accuracies at 10kHz measure-
ment.
Note
Each of the following adjustments are inter-
related. To achieve correct adjustments, do
not change adjustment procedure or sequence.
] (a) (b)
Q-

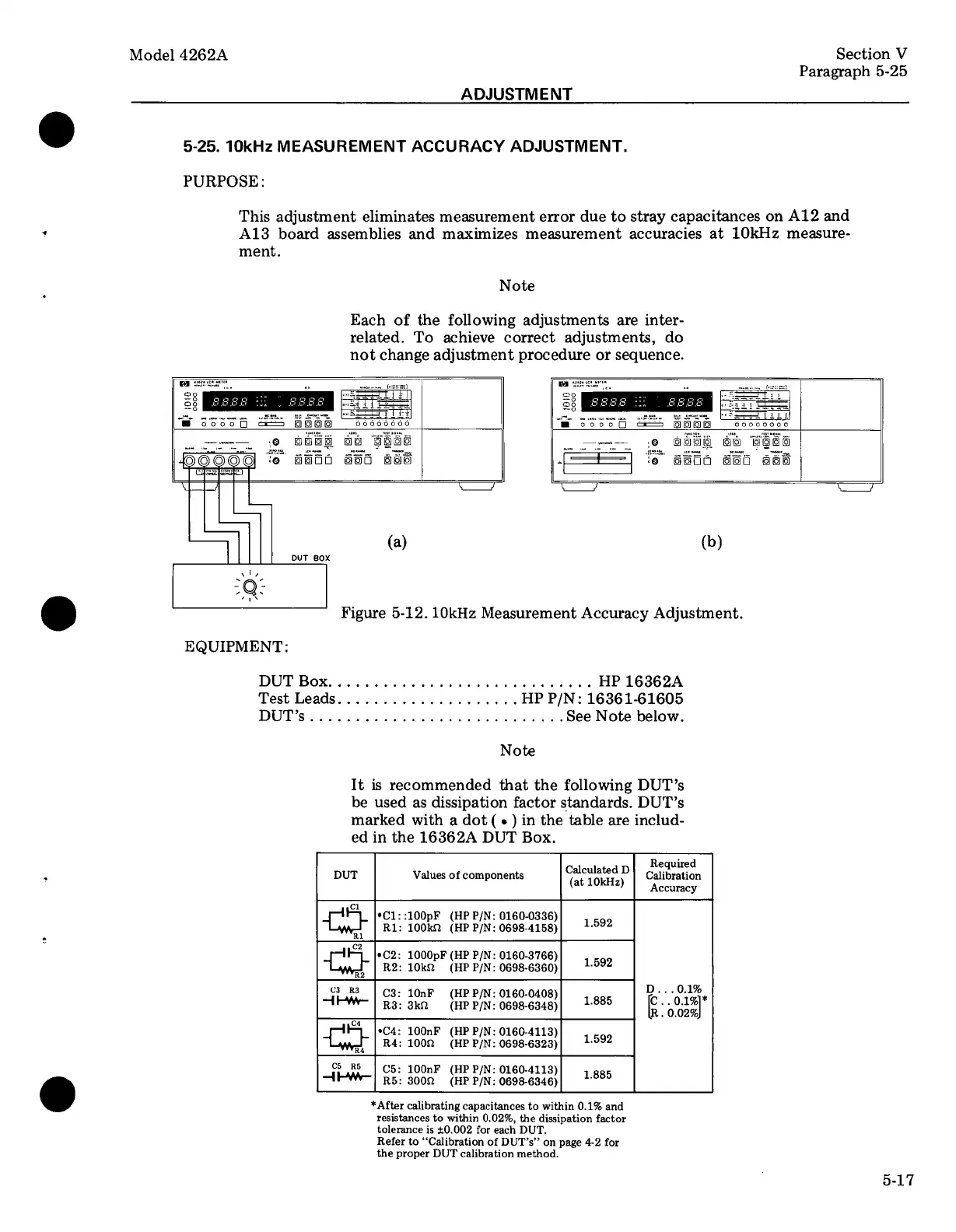

Figure 5-12. 10kHz Measurement Accuracy Adjustment.
EQUIPMENT:
DUTBOX. ..ot ittt it it i aineaeae e HP 16362A
TestLeads.................... HP P/N: 1636161605
B 1 See Note below.
Note
It is recommended that the following DUT’s
be used as dissipation factor standards. DUT’s
marked with a dot (s ) in the table are includ-
ed in the 16362A DUT Box.
Required
DUT Values of components ?f:‘;g‘ktf{c;;) Calibration
Accuracy
C1
*C1::100pF (HPP/N:0160-0336)| | oo
™ | R1: 100k (HP P/N: 0698-4158) ‘
C2
_ [+C2: 1000pF (HP P/N: 0160-3766)| | oo
1™ | R2: 10k (HP P/N: 0698-6360) .
¢a k3 | 03 10nF (HP P/N: 0160-0408) D...0.1%
—HW— | R3. 3k (HP P/N: 0698-6348)| 1-885 [g'bod;?*
. . 0,
C4
*C4: 100nF (HPP/N:0160-4113)| | (o
™| R4: 1002 (HP P/N: 0698-6323) .
¢s Rs | C5: 100nF (HP P/N: 0160-4113)
—HW— RS 3000 (HP P/N: 0698-6346)| 1885
*After calibrating capacitances to within 0.1% and
resistances to within 0.02%, the dissipation factor
tolerance is £0.002 for each DUT.
Refer to ‘“‘Calibration of DUT’s” on page 4-2 for
the proper DUT calibration method.
