Model 4262A Section IV
Paragraph 4-17
PERFORMANCE TESTS
4-17. HP-IB INTERFACE TEST (OPTION 101 ONLY).
DESCRIPTION:
This test verifies that the HP-IB circuitry has the capability to correctly communi-
cate between external HP-IB devices and the 4262A through the interface bus cable.
HP 98034A
HP 9825A
cboe == [___jr___}fij
. DS 28 DODG OO Dkl [
OOD OO ‘e dB8OO OO 866 5882 535 5553 2588
S
L
GLL
LG,
5000
N/
T
dddduddad
aui
..J.qu:
Jddddddaddud [W XS pS b
— S [ 'S W )
| e er——

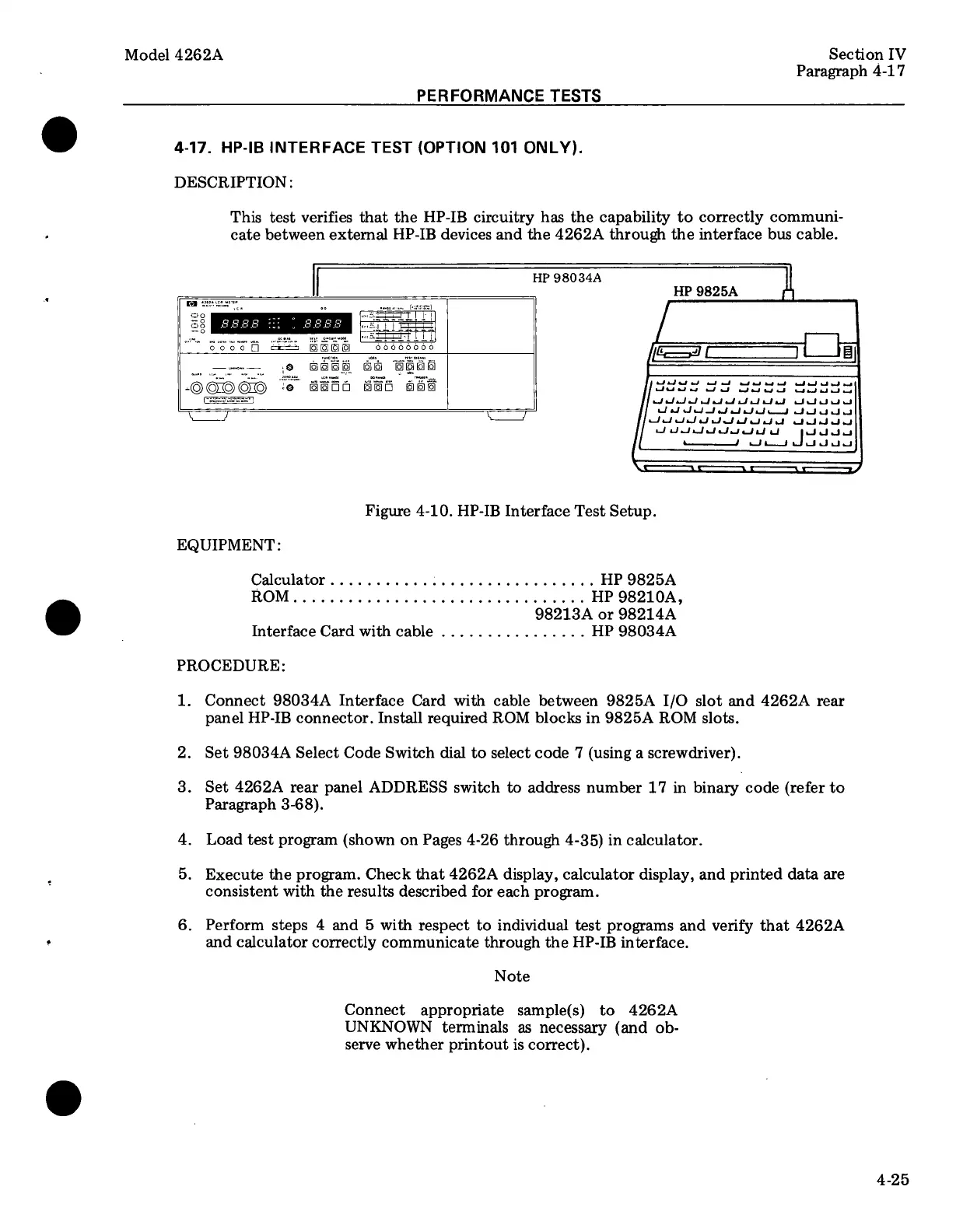

Figure 4-10. HP-IB Interface Test Setup.
EQUIPMENT:
Calculator . .............. ... vt HP 9825A
ROM . ... it i i et e i i ieen HP 98210A,
98213A or 98214A
Interface Card withcable ................ HP 98034A
PROCEDURE:
1. Connect 98034A Interface Card with cable between 9825A I/O slot and 4262A rear
panel HP-IB connector. Install required ROM blocks in 9825A ROM slots.
2. Set 98034A Select Code Switch dial to select code 7 (using a screwdriver).
3. Set 4262A rear panel ADDRESS switch to address number 17 in binary code (refer to
Paragraph 3-68).
4. Load test program (shown on Pages 4-26 through 4-35) in calculator.
5. Execute the program. Check that 4262A display, calculator display, and printed data are
consistent with the results described for each program.
6. Perform steps 4 and 5 with respect to individual test programs and verify that 4262A
and calculator correctly communicate through the HP-IB interface.
Note
Connect appropriate sample(s) to 4262A
UNKNOWN terminals as necessary (and ob-
serve whether printout is correct).
4-25
