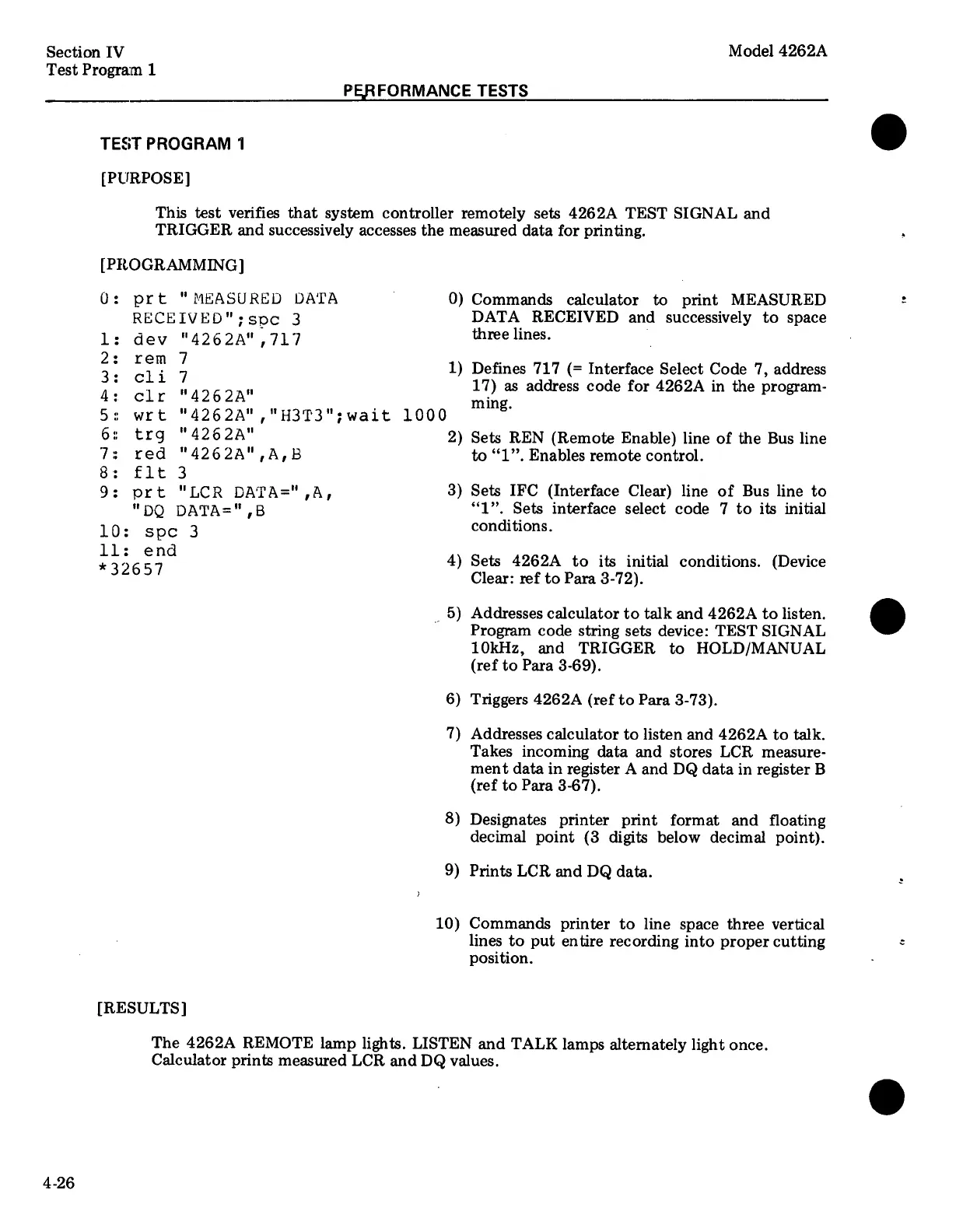

HP 4262A User Manual

Section IV Model 4262A
Test Program 1
PERFORMANCE TESTS
TEST PROGRAM 1
[PURPOSE]
This test verifies that system controller remotely sets 4262A TEST SIGNAL and
TRIGGER and successively accesses the measured data for printing.
[PROGRAMMING]
0: prt "MEASURED DATA ' 0) Commands calculator to print MEASURED
RECEIVED";spc 3 DATA RECEIVED and successively to space
1: dev "4262A",717 three lines. |
2: rem 7 1 . _ ad
3: cli 7 ) Defines 717 (= Interface Select Code 7, address
) " “ 17) as address code for 4262A in the program-
4: clr "4262A ming.
5: wrt "4262A" ,"H3T3";wait 1000
6:
trg
"4262A"
2)
Sets
REN
(Remote
Enable)
line
of
the
Bus
line
7: red "4262A",A,B to “1”. Enables remote control.
8: £1t 3
9: prt "LCR DATA=",A, 3) Sets IFC (Interface Clear) line of Bus line to
"DQ DATA=",B “1”, Sets interface select code 7 to its initial
10: spc 3 conditions,
}113.26 E;Id 4) Sets 4262A to its initial conditions. (Device
Clear: ref to Para 3-72).
_ 5) Addresses calculator to talk and 4262A to listen.
Program code string sets device: TEST SIGNAL
10kHz, and TRIGGER to HOLD/MANUAL
(ref to Para 3-69).
6) Triggers 4262A (ref to Para 3-73).
7) Addresses calculator to listen and 4262A to talk.
Takes incoming data and stores LCR measure-
ment data in register A and DQ data in register B
(ref to Para 3-67).
8) Designates printer print format and floating
decimal point (3 digits below decimal point).
9) Prints LCR and DQ data.
10) Commands printer to line space three vertical
lines to put entire recording into proper cutting
position.
[RESULTS]
The 4262A REMOTE lamp lights. LISTEN and TALK lamps alternately light once.
Calculator prints measured LCR and DQ values.
