HP 4262A User Manual

Model 4262A Section II
Figure 2-3
. Kit X
Option Part Number Parts Included Part Number Q’ty Remarks
907 Handle Kit Front Handle @ 5060-9899 2
5061-0089 Trim Strip () 5060-8896 2
#8-32 x 3/8 Screw 2510-0195 6 9.525mm
908 Rack Flange Kit Rack Mount Flange @ 5020-8862 2
4 5061-0077 #8-32 x 3/8 Screw 2510-0193 6 9.525mm
909 Rack Flange & Front Handle @ 5060-9899 2
Handle Kit Rack Mount Flange (5) 5020-8874 2
5061-0083 #8-32 x 3/8 Screw 2510-0194 6 15.875mm
. Remove adhesive-backed trim strips (1) from
side at right and left front of instrument.
.HANDLE INSTALLATION: Attach front
handle (3) to sides at right and left front of in-
strument with screws provided and attach
trim (4) to handle.
.RACK MOUNTING: Attach rack mount
flange (2) to sides at right and left front of in-
strument, with screws provided.
.HANDLE AND RACK MOUNTING: Attach
front handle (3) and rack mount flange
together to sides at right and left front of in-
strument with screws provided.
. When rack mounting (3 and 4 above), remove
all four feet (lift bar at inner side of foot, and
slide foot toward the bar).

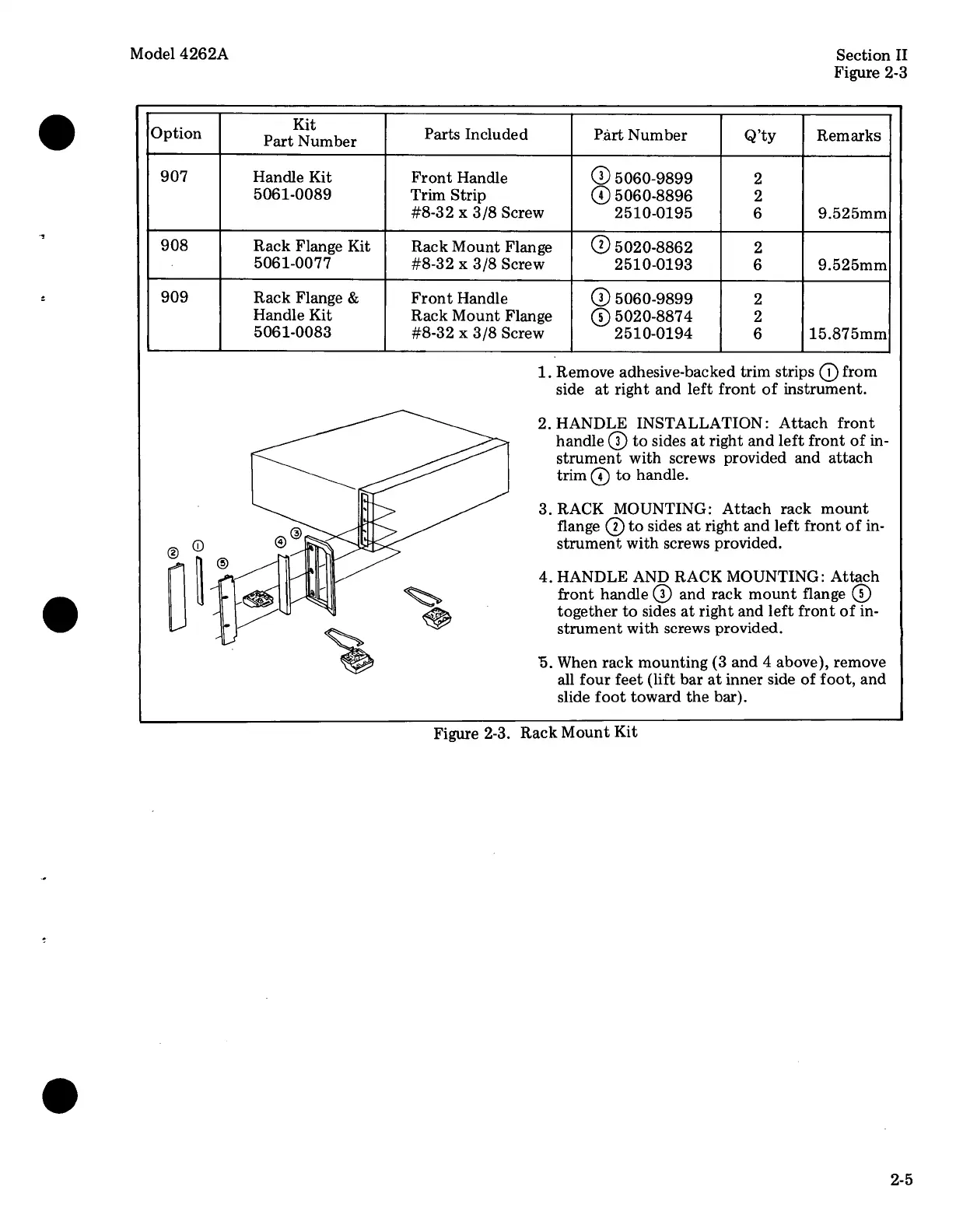

Figure 2-3. Rack Mount Kit
2-5
