HP 4262A User Manual

Model 4262A
Section III
Paragraphs 3-1 to 3-6

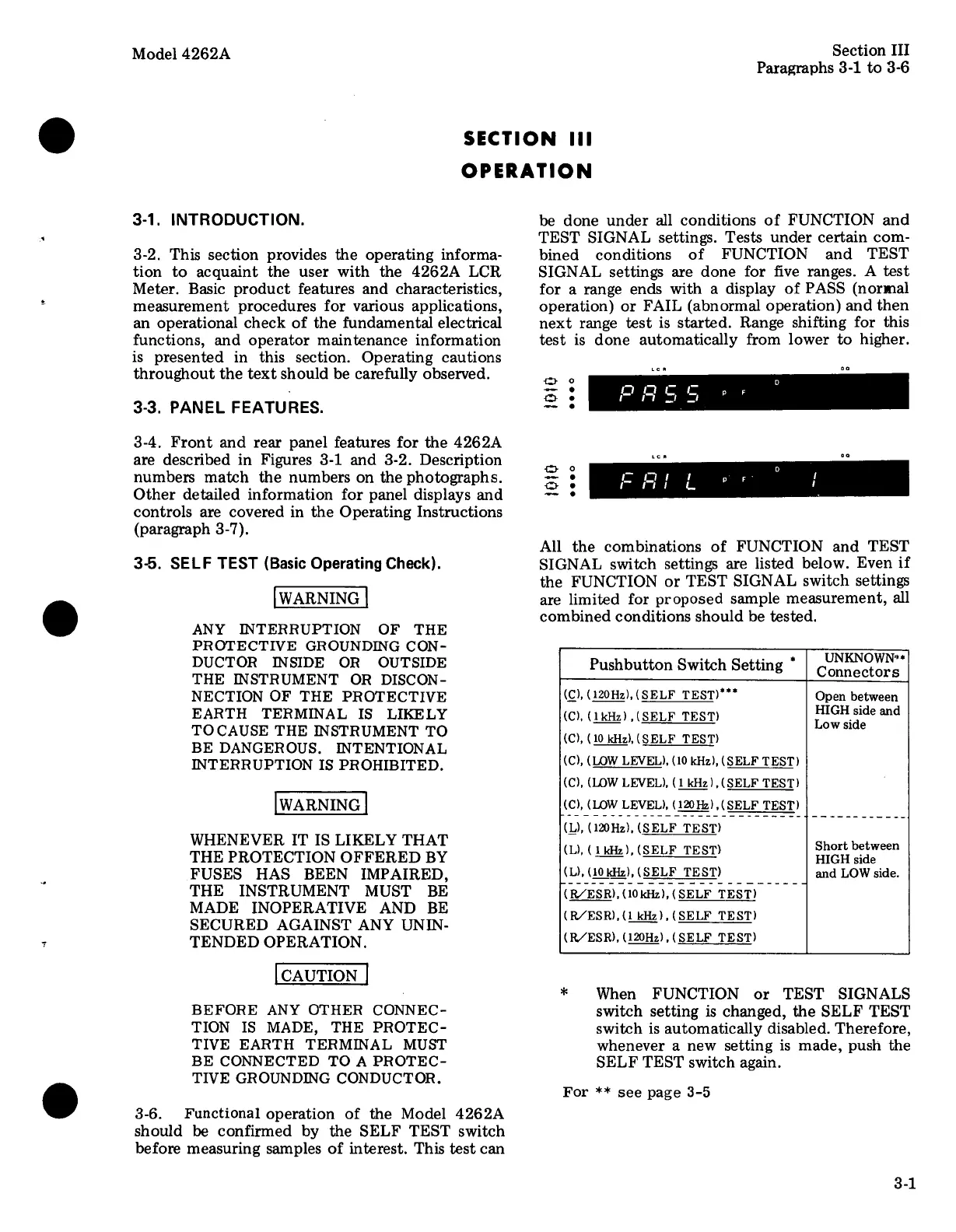

SECTION 111
OPERATION
3-1. INTRODUCTION.
3-2. This section provides the operating informa-
tion to acquaint the user with the 4262A LCR
Meter. Basic product features and characteristics,
measurement procedures for various applications,
an operational check of the fundamental electrical
functions, and operator maintenance information
is presented in this section. Operating cautions
throughout the text should be carefully observed.
3-3. PANEL FEATURES.
3-4. Front and rear panel features for the 4262A
are described in Figures 3-1 and 3-2. Description
numbers match the numbers on the photographs.
Other detailed information for panel displays and
controls are covered in the Operating Instructions
(paragraph 3-7).
35. SELF TEST (Basic Operating Check).
ANY INTERRUPTION OF THE
PROTECTIVE GROUNDING CON-
DUCTOR INSIDE OR OUTSIDE
THE INSTRUMENT OR DISCON-
NECTION OF THE PROTECTIVE
EARTH TERMINAL IS LIKELY
TOCAUSE THE INSTRUMENT TO
BE DANGEROUS. INTENTIONAL
INTERRUPTION IS PROHIBITED.
WHENEVER IT IS LIKELY THAT
THE PROTECTION OFFERED BY
FUSES HAS BEEN IMPAIRED,
THE INSTRUMENT MUST BE
MADE INOPERATIVE AND BE
SECURED AGAINST ANY UNIN-
TENDED OPERATION.
BEFORE ANY OTHER CONNEC-
TION IS MADE, THE PROTEC-
TIVE EARTH TERMINAL MUST
BE CONNECTED TO A PROTEC-
TIVE GROUNDING CONDUCTOR.
3-6. Functional operation of the Model 4262A
should be confirmed by the SELF TEST switch
before measuring samples of interest. This test can
be done under all conditions of FUNCTION and
TEST SIGNAL settings. Tests under certain com-
bined conditions of FUNCTION and TEST
SIGNAL settings are done for five ranges. A test
for a range ends with a display of PASS (normal
operation) or FAIL (abnormal operation) and then
next range test is started. Range shifting for this
test is done automatically from lower to higher.
Lch oo
<r o _ - o
EE IDI':'r':l": POF
1010
All the combinations of FUNCTION and TEST
SIGNAL switch settings are listed below. Even if
the FUNCTION or TEST SIGNAL switch settings
are limited for proposed sample measurement, all
combined conditions should be tested.
UNKNOWN?+
Pushbutton Switch Setting * | connectors
(C), (120Hz), (SELF TEST)***
(C), (1kHz) ,(SELF TEST)
(C), (10 kHz), (SELF TEST)
(C), (LOW LEVEL), (10 kHz), (SELF TEST)
(C), (LOW LEVEL), (1 kHz), (SELF TEST)
(C), (LOW LEVEL), (1201z), (SELF TEST)
(L), 120Hy), (SELF TESD |
(L), (1 kHz), (SELF TEST)
(L), (10 kHz), (SELF TEST)
(RZESR), (10kHz), (SELF TEST) |
(RZESR), (1 kHz), (SELF _TEST)
(RZESR), (120Hz), (SELF TEST)
Open between
HIGH side and
Low side
Short between
HIGH side
and LOW side.
* When FUNCTION or TEST SIGNALS
switch setting is changed, the SELF TEST
switch is automatically disabled. Therefore,
whenever a new setting is made, push the
SELF TEST switch again.
For ** see page 3-5
3-1
