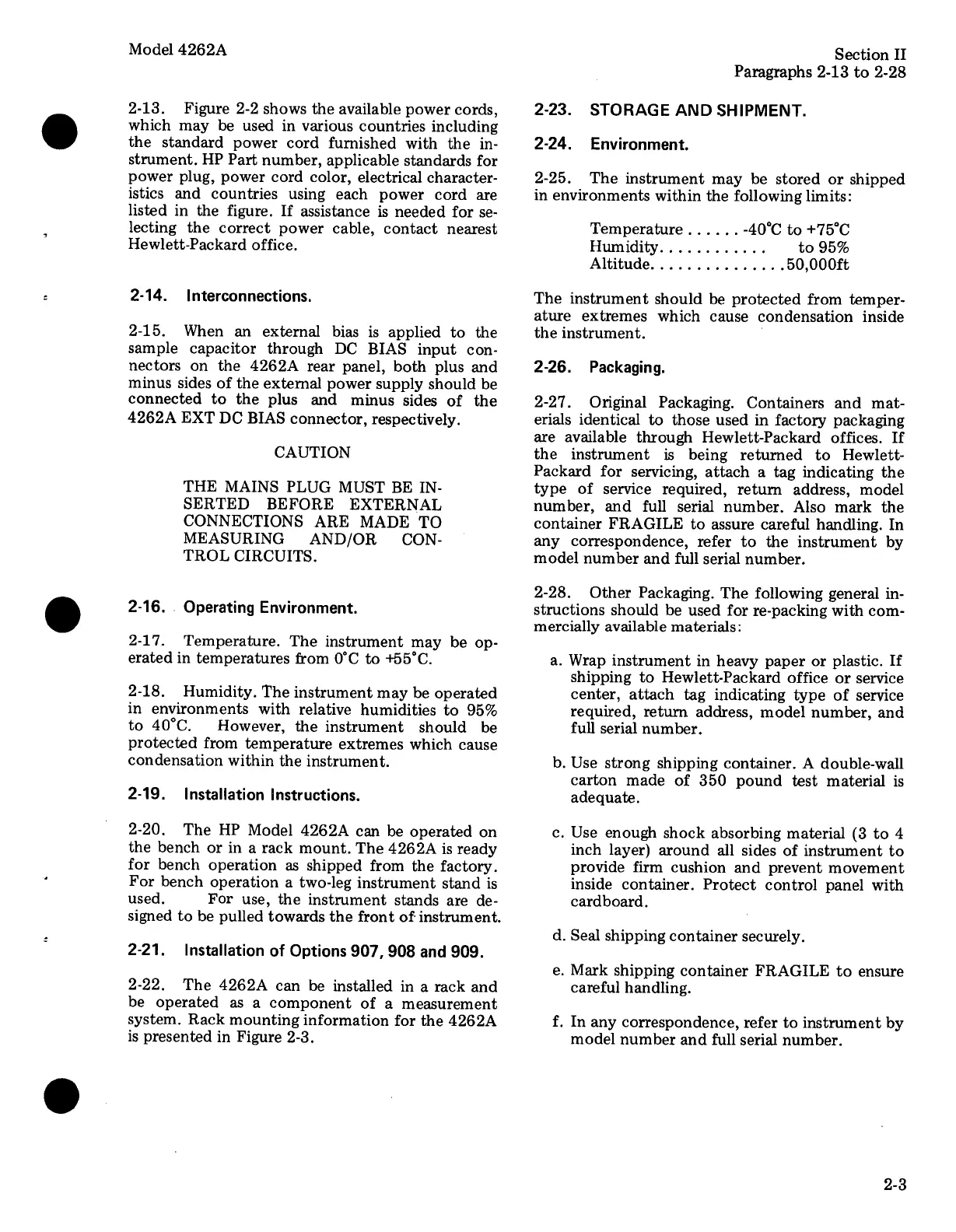

Model
4262A
2-13.
Figure
2-2
shows
the
available
power
cords,
which
may
be
used
in
various
countries
including
the
standard
power
cord
furnished
with
the
in-
strument.
HP
Part
number,
applicable
standards
for
power
plug,
power
cord
color,
electrical
character-
istics
and
countries
using
each
power
cord
are
listed
in
the
figure.
If
assistance
is
needed
for
se-
lecting
the
correct
power
cable,
contact
nearest
Hewlett-Packard
office.
2-14.
Interconnections.
2-15.
When
an
external
bias
is
applied
to
the
sample
capacitor
through
DC
BIAS
input
con-
nectors
on
the
4262A
rear
panel,
both
plus
and
minus
sides
of
the
external
power
supply
should
be
connected
to
the
plus
and
minus
sides
of
the
4262A
EXT
DC
BIAS
connector,
respectively.
CAUTION
THE
MAINS
PLUG
MUST
BE
IN-
SERTED
BEFORE
EXTERNAL
CONNECTIONS
ARE
MADE
TO
MEASURING
AND/OR
CON-
TROL
CIRCUITS.
2-16.
Operating
Environment.
2-17.
Temperature.
The
instrument
may
be
op-
erated
in
temperatures
from
0°C
to
+55°C.
2-18.
Humidity.
The
instrument
may
be
operated
in
environments
with
relative
humidities
to
95%
to
40°C.
However,
the
instrument
should
be
protected
from
temperature
extremes
which
cause
condensation
within
the
instrument.
2-19.
Installation
Instructions.
2-20.
The
HP
Model
4262A
can
be
operated
on
the
bench
or
in
a
rack
mount.
The
4262A
is
ready
for
bench
operation
as
shipped
from
the
factory.
For
bench
operation
a
two-leg
instrument
stand
is
used.
For
use,
the
instrument
stands
are
de-
signed
to
be
pulled
towards
the
front
of
instrument.
2-21.
Installation
of
Options
907,
908
and
909.
2-22.
The
4262A
can
be
installed
in
a
rack
and
be
operated
as
a
component
of
a
measurement
system.
Rack
mounting
information
for
the
4262A
is
presented
in
Figure
2-3.
Section
II
Paragraphs
2-13
to
2-28
2-23.
STORAGE
AND
SHIPMENT.
2-24.
Environment.
2-25.
The
instrument
may
be
stored
or
shipped
in
environments
within
the
following
limits:
Temperature
.
...
..
-40°C
to
+75°C
Humidity............
to
95%
Altitude.
.
.............
50,0001t
The
instrument
should
be
protected
from
temper-
ature
extremes
which
cause
condensation
inside
the
instrument.
2-26.
Packaging.
2-27.
Original
Packaging.
Containers
and
mat-
erials
identical
to
those
used
in
factory
packaging
are
available
through
Hewlett-Packard
offices.
If
the
instrument
is
being
returned
to
Hewlett-
Packard
for
servicing,
attach
a
tag
indicating
the
type
of
service
required,
return
address,
model
number,
and
full
serial
number.
Also
mark
the
container
FRAGILE
to
assure
careful
handling.
In
any
correspondence,
refer
to
the
instrument
by
model
number
and
full
serial
number.
2-28.
Other
Packaging.
The
following
general
in-
structions
should
be
used
for
re-packing
with
com-
mercially
available
materials:
a.
Wrap
instrument
in
heavy
paper
or
plastic.
If
shipping
to
Hewlett-Packard
office
or
service
center,
attach
tag
indicating
type
of
service
required,
return
address,
model
number,
and
full
serial
number.
b.
Use
strong
shipping
container.
A
double-wall
carton
made
of
350
pound
test
material
is
adequate.
c.
Use
enough
shock
absorbing
material
(3
to
4
inch
layer)
around
all
sides
of
instrument
to
provide
firm
cushion
and
prevent
movement
inside
container.
Protect
control
panel
with
cardboard.
d.
Seal
shipping
container
securely.
e.
Mark
shipping
container
FRAGILE
to
ensure
careful
handling.
f.
In
any
correspondence,
refer
to
instrument
by
model
number
and
full
serial
number.
2-3
