HP 4262A User Manual

Model 4262A Section IV
Test Program 2

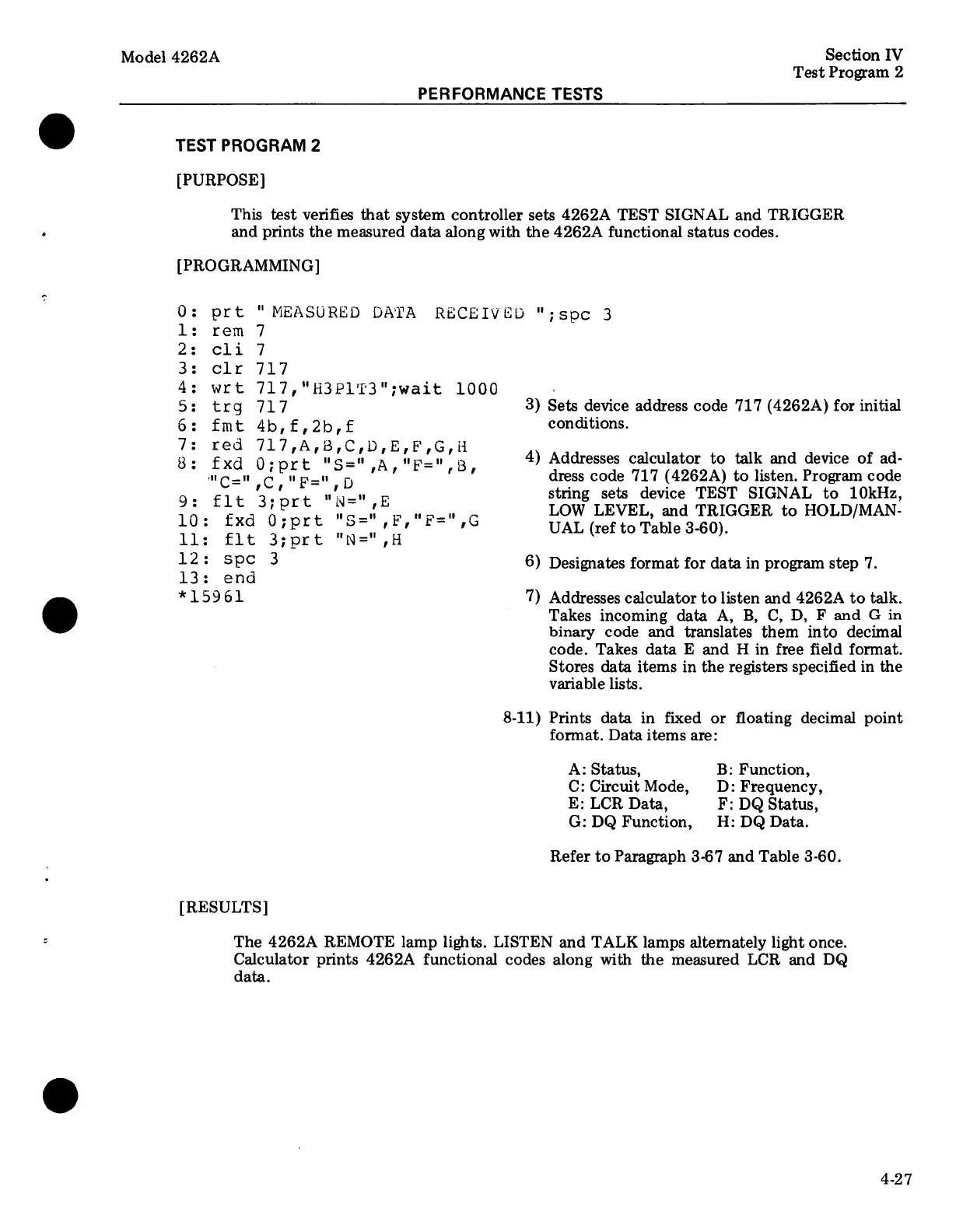

PERFORMANCE TESTS
TEST PROGRAM 2
[PURPOSE]
This test verifies that system controller sets 4262A TEST SIGNAL and TRIGGER
and prints the measured data along with the 4262A functional status codes.
[PROGRAMMING]
0:
prt
"
MEASURED
DATA
RECEIVEDL
";
spc
3
l: rem 7
2: cli 7
3: clr 717
4: wrt 717,"H3P1T3";wait 1000 ,
5: trg 717 3) Sets device address code 717 (4262A) for initial
6: fmt 4b,f,2b,f conditions.
Z; §ig g%;;i'fég.’. ?A?.’.;;S:g 4) Addresses calculator to talk and device of ad-
me=",C,"F=", D ! dress code 717 (4262A) to listen. Program code
9: flt 3;prt "N=",E string sets device TEST SIGNAL to 10kHz,
LOW LEVEL, and TRIGGER to HOLD/MAN-
10:
fxd
O;prt
"s=",F,"F=",G
UAL
(ref
to
Table
3-60).
11: flt 3;prt "n=",H
12: spc 3 6)
13: end
*15961 T) Addresses calculator to listen and 4262A to talk.
Takes incoming data A, B, C, D, F and G in
binary code and translates them into decimal
code. Takes data E and H in free field format.
Stores data items in the registers specified in the
variable lists.
Designates format for data in program step 7.
8-11) Prints data in fixed or floating decimal point
format. Data items are:
A: Status, B: Function,
C: Circuit Mode, D: Frequency,
E: LCR Data, F: DQ Status,
G: DQ Function, H: DQ Data.
Refer to Paragraph 3-67 and Table 3-60.
[RESULTS]
The 4262A REMOTE lamp lights. LISTEN and TALK lamps alternately light once.
Calculator prints 4262A functional codes along with the measured LCR and DQ
data.
4-27
