Table 6-3

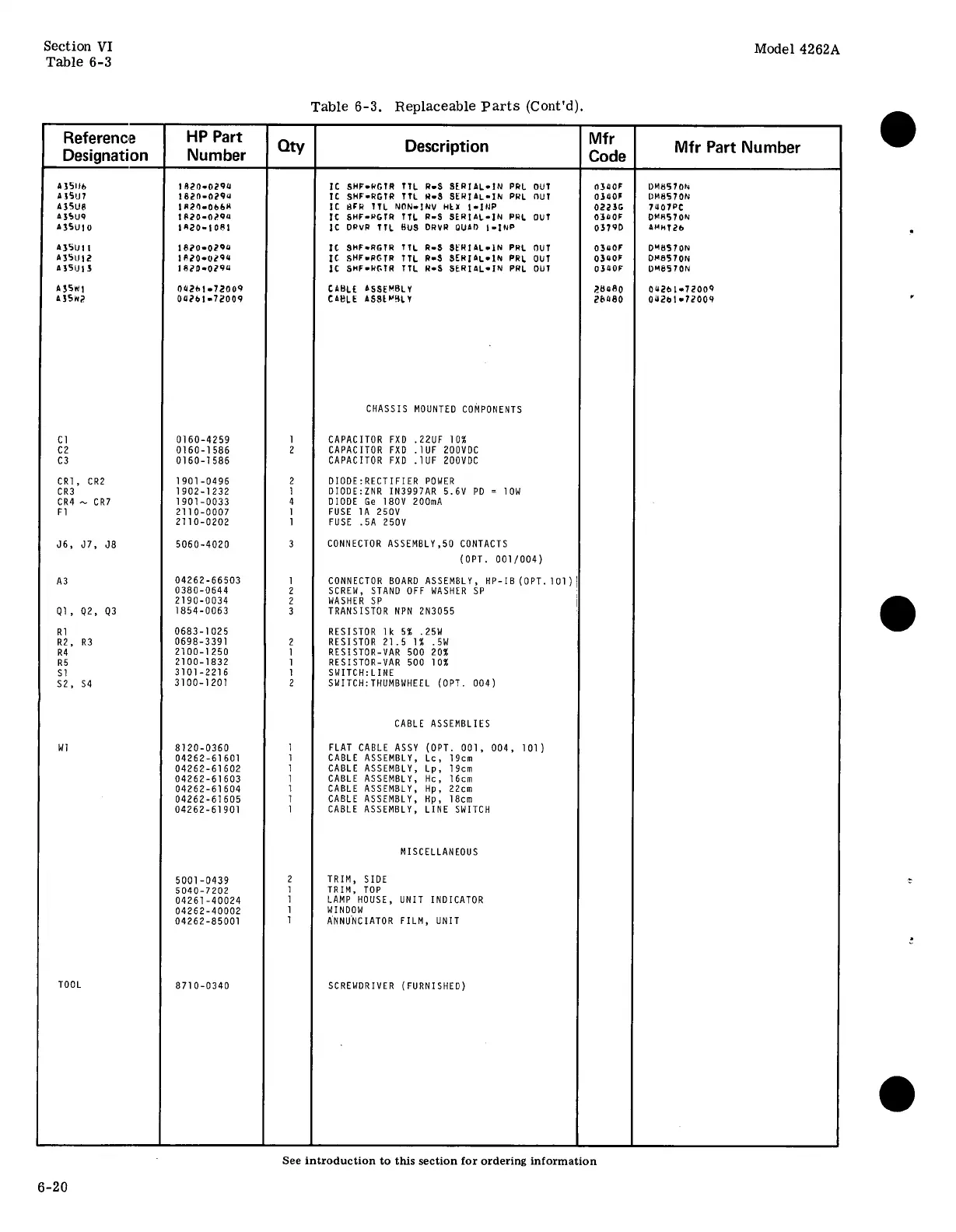

Table 6-3. Replaceable Parts (Cont'd).
Reference HP Part Q Descrioti Mfr
- . escription Mfr Part Number
Designation Number ty P Code
A3516 182002%4 IC SHFeRGIR TIL ReS SERIALeIN PRL OUT 0340F DMBS 70N
A3507 1820=0294 IC SHFeRGTR TTL Re$ SERIAL=IN PRL OUT 0340F DMBSTON
A3Sys 1R20e06bR IC BFR TYL NONeINV HEX {e]NP 02236 7407PC
4359 18200294 IC SHF=RGTR TTL Re$ SERIALe]N PRL OQUT 03u0F DMBS 70N
A35U10 1A20=1081 1C DRVR TTL BUS DRVR QUAD f=INP 03790 AMBY 2O
A3SUI1 18200294 IC SHF«RGIR TIL Re8 SERIALeIN PRL OUT 0340F DMBS7ON
A3SUL2 1R20<0294 IC SHF=RGTIR TYL R=8 SERJALeIN PRL OUT 0340F DMBSTON
[%3:1158 18200294 §C SHFeRGYIR TTL ReS SERIALeIN PRL OUT 0340F OMESTON
A3Sw) NU26172009 CABLE BSSEMBLY 28480 Q4261272000
43Sk 04261=72009 CABLE ASSEMALY 2busdo 0426172009
CHASSIS MOUNTED COMPONENTS
€1 0160-4259 1 CAPACITOR FXD .22UF 10%
€2 0160-1586 2 CAPACITOR FXD .1UF 200vDC
c3 0160-1586 CAPACITOR FXD .1UF 200vVDC
CRT1, CR2 1901-0496 2 DIODE:RECTIFIER POWER
CR3 1902-1232 1 DIODE:ZNR IN3997AR 5.6V PD = 10W
CR4
~ CR7 1901-0033 4 DIODE Ge 180V 200mA
F1 2110-0007 1 FUSE 1A 250V
2110-0202 1 FUSE .5A 250V
Jé, J7, J8 5060-4020 3 CONNECTOR ASSEMBLY,50 CONTACTS
(OPT. 001/004)
A3 04262-66503 1 CONNECTOR BOARD ASSEMBLY, HP-IB(OPT.]O]){
0380-0644 2 SCREW, STAND OFF WASHER SP
2190-0034 2 WASHER SP i
Q1, Q2, Q3 1854-0063 3 TRANSISTGR NPN 2N3055
R1 0683-1025 RESISTOR 1k 5% .25W
R2, R3 0698-3391 2 RESISTOR 21.5 1% .5W
R4 2100-1250 1 RESISTOR-VAR 500 20%
R5 2100-1832 1 RESISTOR-VAR 500 10%
S1 3101-2216 1 SWITCH:LINE
s2, S4 3100-1201 2 SWITCH: THUMBWHEEL (OPT. 004)
CABLE ASSEMBLIES
Wi 8120-0360 1 FLAT CABLE ASSY (OPT. 001, 004, 101)
04262-61601 1 CABLE ASSEMBLY, Lc, 19cm
04262-61602 1 CABLE ASSEMBLY, Lp, 19cm
04262-61603 1 CABLE ASSEMBLY, Hc, lé6cm
04262-61604 1 CABLE ASSEMBLY, Hp, 22c¢cm
04262-61605 1 CABLE ASSEMBLY, Hp, 18cm
04262-61901 1 CABLE ASSEMBLY, LINE SWITCH
MISCELLANEOUS
5001-0439 2 TRIM, SIDE
5040-7202 1 TRIM, TOP
04261-40024 1 LAMP HOUSE, UNIT INDICATOR
04262-40002 1 NINDQN
04262-85001 1 ANNUNCIATOR FILM, UNIT
TOOL 8710-0340 SCREWDRIVER {FURNISHED)
See introduction to this section for ordering information
