‘Model 4262A
Table 6-3

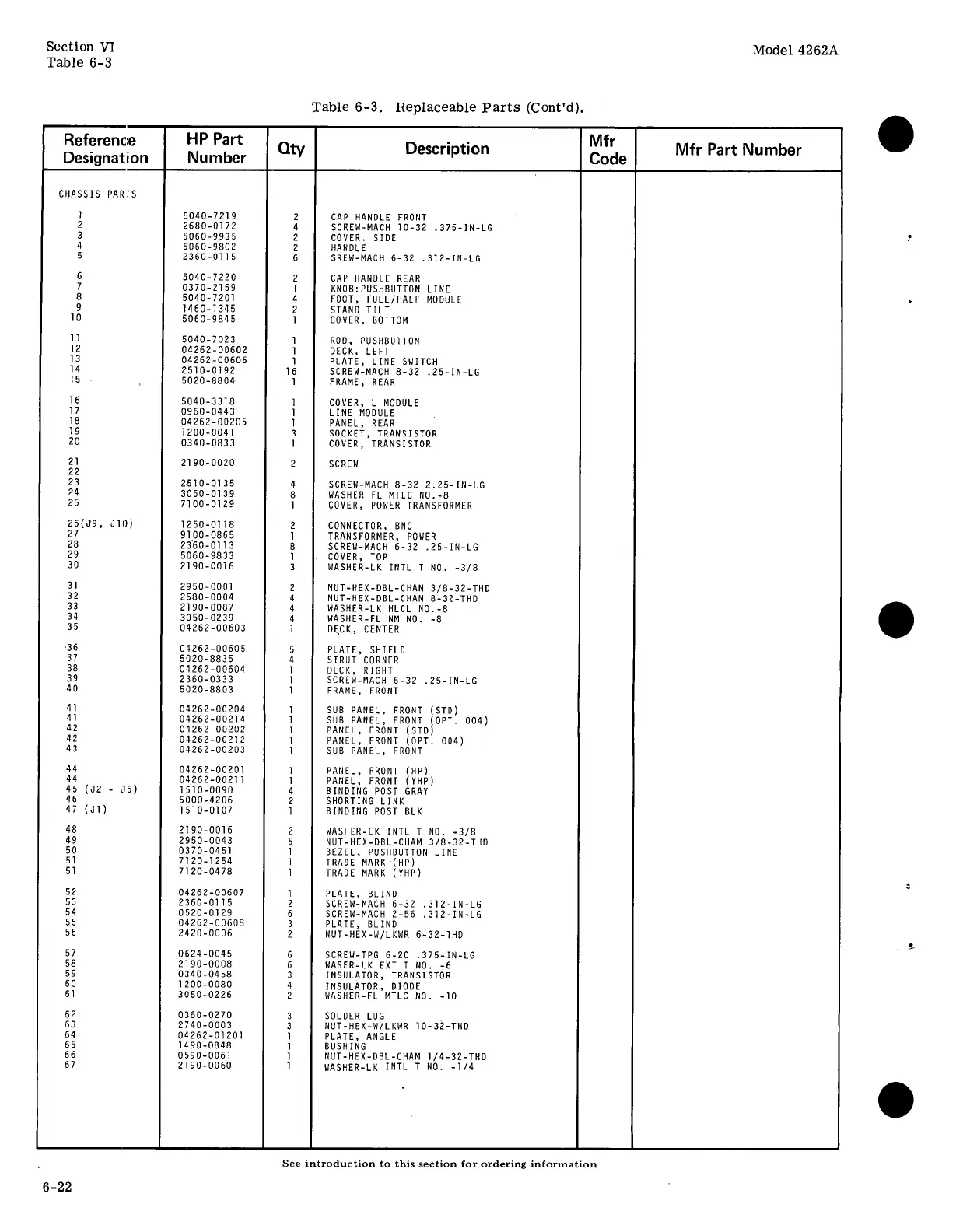

Table 6-3. Replaceable Parts (Cont'd).
:
_
Mfr
Reference HP Part Qty Description Mfr Part Number
Designation Number Code
CHASSIS PARTS
1 5040-7219 2 CAP HANDLE FRONT
2
2680-0172
4
SCREW-MACH
10-32
.375-IN-LG
3 5060-9935 2 COVER. SIDE
4 5060-9802 2 HANDLE
5 2360-0115 6 SREW-MACH 6-32 .312-IN-LG
6 5040-7220 2 CAP HANDLE REAR
7 0370-2159 1 KNOB:PUSHBUTTON LINE
8 5040-7201 4 FOOT, FULL/HALF MODULE
9 1460-1345 2 STAND TILT
10 5060-9845 1 COVER, BOTTOM
11 5040-7023 1 ROD, PUSHBUTTON
12 04262-00602 1 DECK, LEFT
13 04262-00606 1 PLATE, LINE SWITCH
14
2510-0192
16
SCREW-MACH
8-32
.25-IN-LG
15 5020-8804 1 FRAME, REAR
16 5040-3318 1 COVER, L MODULE
17 0960-0443 1 LINE MODULE
18 04262-00205 1 PANEL, REAR
19 1200-0041 3 SOCKET, TRANSISTOR
20 0340-0833 1 COVER, TRANSISTOR
21 2190-0020 2 SCREW
22
23 2510-0135 4 SCREW-MACH 8-32 2.25-IN-LG
24 3050-0139 8 WASHER FL MTLC NO.-8
25 7100-0129 1 COVER, POWER TRANSFORMER
26(Jd9, J10) 1250-0118 2 CONNECTOR, BNC
27 9100-0865 1 TRANSFORMER, POWER
28 2360-0113 8 SCREW-MACH 6-32 .25-IN-LG
29 5060-9833 1 COVER, TOP
30 2190-0016 3 WASHER-LK INTL T NO. -3/8
31 2950-0001 2 NUT-HEX-DBL-CHAM 3/8-32-THD
32 2580-0004 4 NUT-HEX-DBL-CHAM 8-32-THD
33 2190-0087 4 WASHER-LK HLCL NO.-8
34 3050-0239 4 WASHER-FL NM NO. -8
35 04262-00603 1 DECK, CENTER
36 04262-00605 5 PLATE, SHIELD
37 5020-8835 4 STRUT CORNER
38 04262-00604 1 DECK, RIGHT
39 2360-0333 1 SCREW-MACH 6-32 .25-IN-LG
40 5020-8803 1 FRAME, FRONT
41 04262-00204 1 SUB PANEL, FRONT (STD}
41 04262-00214 1 SUB PANEL, FRONT (OPT. 004)
42 04262-00202 1 PANEL, FRONT (STD)
42 04262-00212 1 PANEL, FRONT (OPT. 004)
43 04262-00203 1 SUB PANEL, FRONT
44 04262-00201 1 PANEL, FRONT (HP)
44 04262-00211 1 PANEL, FRONT (YHP)
45 (J2 - J5) 1510-0090 4 BINDING POST GRAY
46 5000-4206 2 SHORTING LINK
47 (J1) 1510-0107 1 BINDING POST BLK
48 2190-0016 2 WASHER-LK INTL T NO. -3/8
49 2950-0043 5 NUT-HEX-DBL-CHAM 3/8-32-THD
50 0370-0451 1 BEZEL, PUSHBUTTON LINE
51 7120-1254 1 TRADE MARK (HP)
51 7120-0478 1 TRADE MARK (YHP)
52 04262-00607 1 PLATE, BLIND
53 2360-0115 2 SCREW-MACH 6-32 .312-IN-LG
54 0520-0129 6 SCREW-MACH 2-56 .312-IN-LG
55 04262-00608 3 PLATE, BLIND
56 2420-0006 2 NUT-HEX-W/LKWR 6-32-THD
57 0624-0045 6 SCREW-TPG 6-20 .375-IN-LG
58 2190-0008 6 WASER-LK EXT T NO. -6
59 0340-0458 3 INSULATOR, TRANSISTOR
60 1200-0080 4 INSULATOR, DIODE
61 3050-0226 2 WASHER-FL MTLC NO. -10
62 0360-0270 3 SOLDER LUG
63 2740-0003 3 NUT-HEX-W/LKWR 10-32-THD
64 04262-01201 1 PLATE, ANGLE
65 1490-0848 1 BUSHING
66 0590-0051 1 NUT-HEX-DBL-CHAM 1/4-32-THD
67 2190-0060 1 WASHER-LK INTL T NO. -1/4
6-22
See introduction to this section for ordering information
