Model
4262A
Section
VIII
Figure
8-11
SELF
TEST
FUNCTION
Pressing
the
SELF
TEST
button
(located
at
left
in
line
with
the
CIRCUIT
MODE
selection
buttons)
directs
the
instrument
to
begin
a
sequence
of
instrument
operated
self-test
functions.
This
is
an
outline
of
how
to
use
the
self test
function
for
failure
diagnosis.
Automatic
self
test
settings:
An
appropriate
equivalent
circuit
mode
(either
to
SER
or
PRL)
is
automatically
selected
for
the
duration
of
the
self
test.
Since
self
testing
is
done
in
a
particular
equivalent
circuit
mode
for
each
of
the
measurement
parameters
(L,
C
and
R),
auto
testing
is
limited
to
the
ranges
specified
for
these
circuit
modes.
The
table
below
shows
measurement
ranges
tested
by
self-
test
function.
However,
since,
during
self
test,
all
instrument
measurement
functions
are
brought
into
action
(including
all
the
range
resistors),
this
test
is
broad
check
of
overall
instrument
performance
for
all
ranges.
Table
8-5.
Self
Test
Ranges.
Range
Cs
m
Ls
~“T0W\
Rs
m
1
100pF
100uH
1000m&2
2
1000pF
1000uH
100
3
10nF
10mH
1009
4
100nF
100mH
100082
5
1000nF
1000mH
10kQ
Note
Multiply
range
by
10
at
120Hz
and
by
0.1
at
10kHz
test
signal
frequencies.
How
the
self test
function
operates:
To
perform
the
self
test,
the
instrument
simulates
a
measurement
of
either
zero
or
infinite
impedance.
For
these
tests,
the
UKNOWN
terminals
are
appropriately
terminated
(short
or
open).
Under
these
test
conditions,
the
integrator
develops
an
output
voltage
correspond-
ing
to
a2
1000
count
display
(full
scale)
for
the
LCR
measurement
test
cycle
and
a
000
count
display
for
the
DQ
measurement
test
cycle.
The
nanoprocessor
monitors
the
1000
and
000
counts
calculated
from
the
integrator
output.
If
either
or
both
of
the
counted
numbers
differ
by
more
than
5
counts from
their
respective
nominal
values,
a
FAIL
annunciation
is
displayed
on
the
LCR
DISPLAY.
The
nanoprocessor
also
monitors
a
SAT
signal
from
Saturation
Detector
(A13)
to
further
categorize
the
failures
into
other
subdivisions.

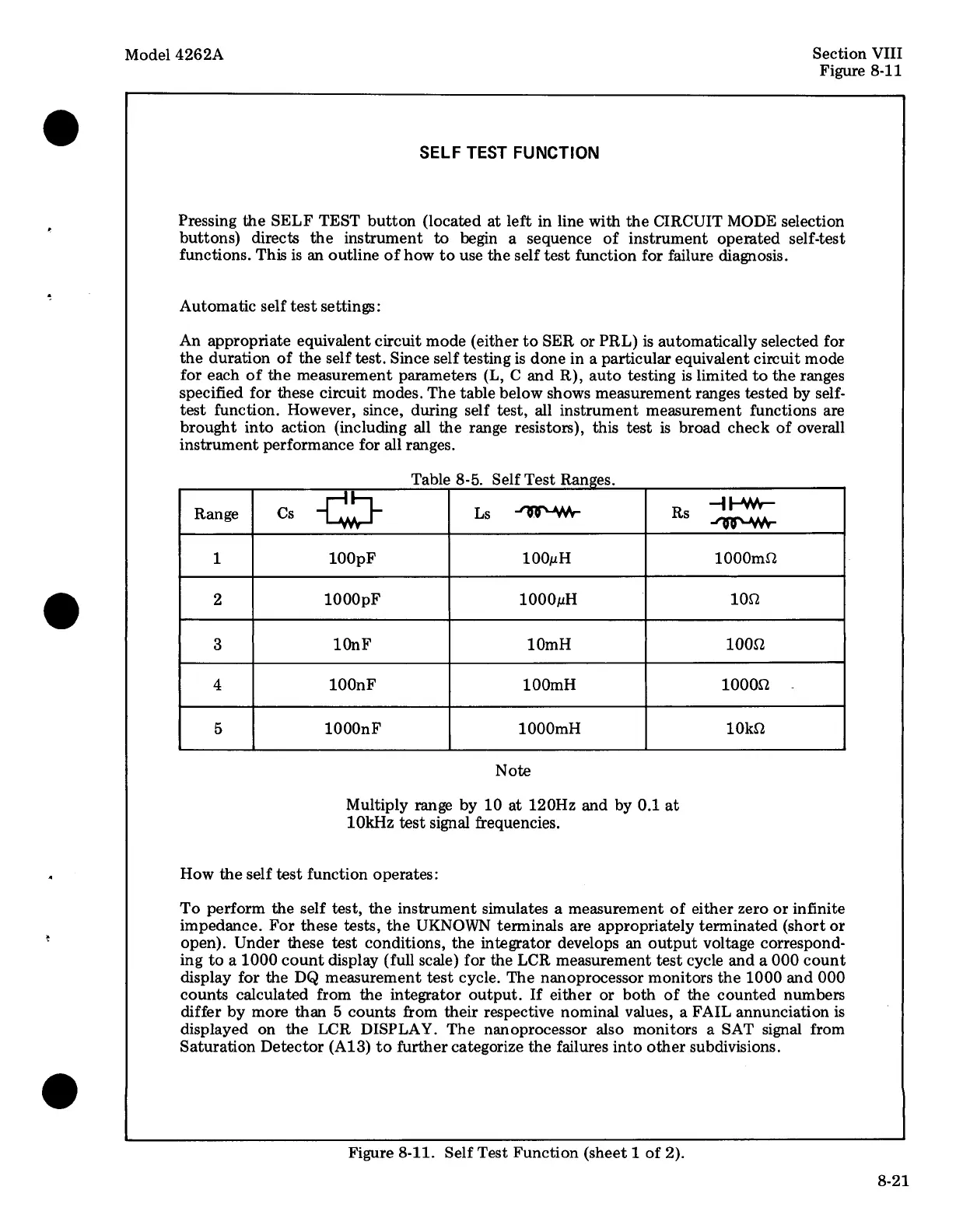

Figure
8-11.
Self
Test
Function
(sheet
1
of
2).
8-21
