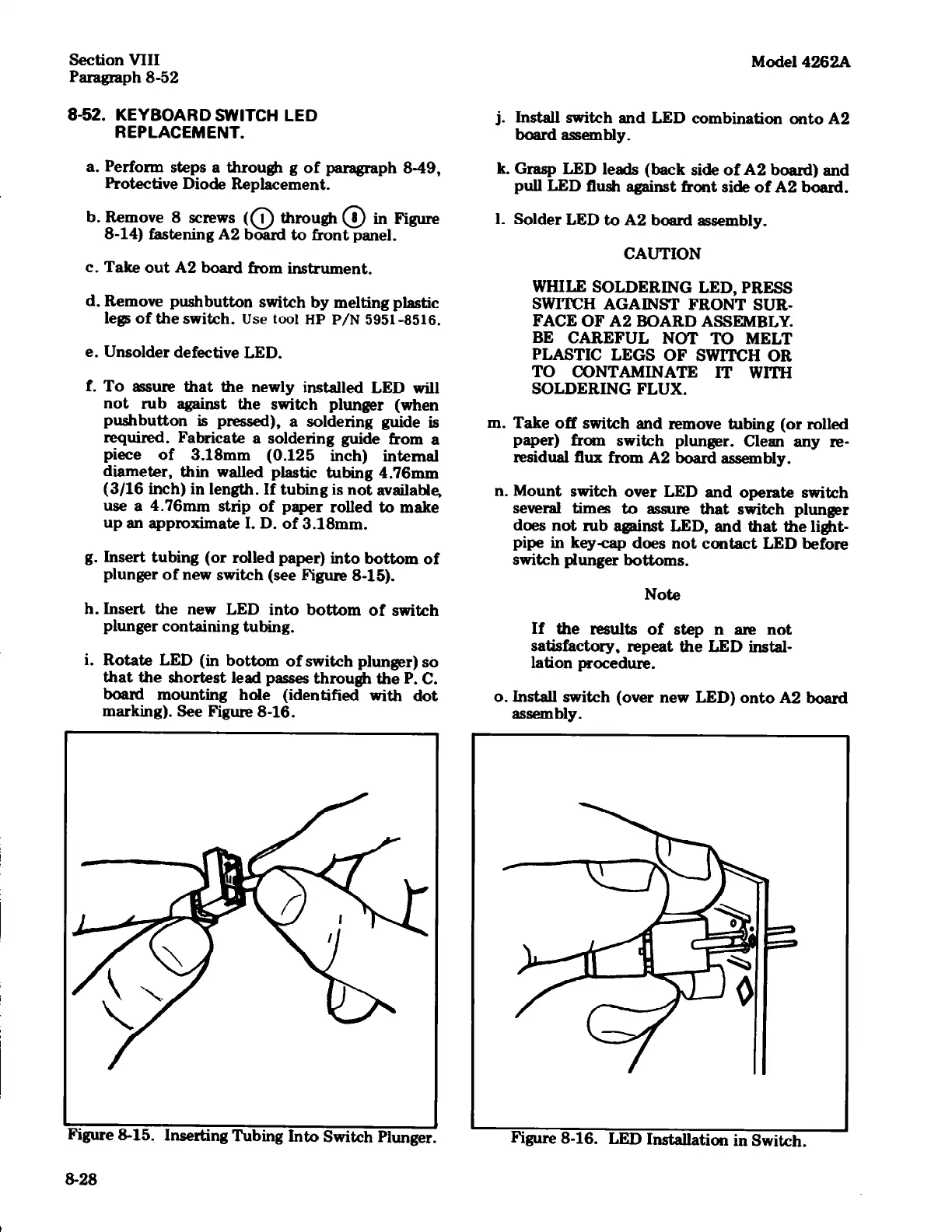

Section
VIII
Paragraph
8-52
8-52.
KEYBOARD
SWITCH
LED
REPLACEMENT.
a.
Perform
steps
a
through
g
of
paragraph
8-49,
Protective
Diode
Replacement.
b.
Remove
8
screws
((D
through
@
in
Figure
8-14)
fastening
A2
bgard
to
front
panel.
c.
Take
out
A2
board
from
instrument.
d.
Remove
pushbutton
switch
by
melting
plastic
legs
of
the
switch.
Use
tool
HP
P/N
5951-8516.
e.
Unsolder
defective
LED.
f.
To
assure
that
the
newly
installed
LED
will
not
rub
against
the
switch
plunger
(when
pushbutton
is
pressed),
a
soldering
guide
is
required.
Fabricate
a
soldering
guide
from
a
piece
of
3.18mm
(0.125
inch)
intemal
diameter,
thin
walled
plastic
tubing
4.76mm
(3/16
inch)
in
length.
If
tubing
is
not
available,
use
a
4.76mm
strip
of
paper
rolled
to
make
up
an
approximate
1.
D.
of
3.18mm.
g.
Insert
tubing
(or
rolled
paper)
into
bottom
of
plunger
of
new
switch
(see
Figure
8-15).
h.
Insert
the
new
LED
into
bottom
of
switch
plunger
containing
tubing.
i.
Rotate
LED
(in
bottom
of
switch
plunger)
so
that
the
shortest
lead
passes
through
the
P.
C.
board
mounting
hole
(identified
with
dot
marking).
See
Figure
8-16.
Model
4262A
j.
Install
switch
and
LED
combination
onto
A2
board
assembly.
k.
Grasp
LED
leads
(back
side
of
A2
board)
and
pull
LED
flush
against
front
side
of
A2
board.
1.
Solder
LED
to
A2
board
assembly.
CAUTION
WHILE
SOLDERING
LED,
PRESS
SWITCH
AGAINST
FRONT
SUR-
FACE
OF
A2
BOARD
ASSEMBLY.
BE
CAREFUL
NOT
TO
MELT
PLASTIC
LEGS
OF
SWITCH
OR
TO
CONTAMINATE
IT
WITH
SOLDERING
FLUX.
m.
Take
off
switch
and
remove
tubing
(or
rolled
paper)
from
switch
plunger.
Clean
any
re-
residual
flux
from
A2
board
assembly.
n.
Mount
switch
over
LED
and
operate
switch
several
times
to
assure
that
switch
plunger
does
not
rub
against
LED,
and
that
the
light-
pipe
in
key-cap
does
not
contact
LED
before
switch
plunger
bottoms.
Note
If
the
results
of
step
n
are
not
satisfactory,
repeat
the
LED
instal-
lation
procedure.
o.
Install
switch
(over
new
LED)
onto
A2
board
assembly.
Figure
8-15.
Inserting
Tubing
Into
Switch
Plunger.
8-28
Figure
8-16.
LED
Installation
in
Switch.
