HP 4262A User Manual

Section III
Figure 3-2
Model 4262A
BCD D/Q DATA OUTPUT Connector:
BCD parallel data of measured dissipation
factor (D) or quality factor (Q) are output-
ted through this 50 pin connector installed
on the 4262A Option 001.
BCD LCR DATA OUTPUT Connector:
With Option 001, BCD parallel data for in-
ductance,
capacitance
and
resistance
meas-
ured values are outputted through this 50
pin connector.
COMPARATOR
OUTPUT
Connector:
The
4262A
Option
004
provides
comparator
decision
outputs
for
LCR
and
D/Q
through
this
50
pin
connector.
HP-IB
Digital
Bus
Connector:
This
24
pin
connector
conveys
bus
signals
and
remote
programming
instructions
to
the
4262A
Option
101
and
transmits
data
from
the
4262A
Option
101
to
the
bus.
Address
Switch:
This
seven
section
switch
sets
address
code
of
4262A
Option
101
and
TALK ONLY or ADDRESSABLE mode of
operation.
EXT DC BIAS Connector: External dc
bias voltage can be applied to the sample
up to the maximum voltage of plus 40V
through this connector.
EXT TRIGGER Connector: This connector
is used for externally triggering the instru-
ment
by
inputting
an
external
trigger
signal.
TRIGGER SWITCH on front panel should
be set to EXT.

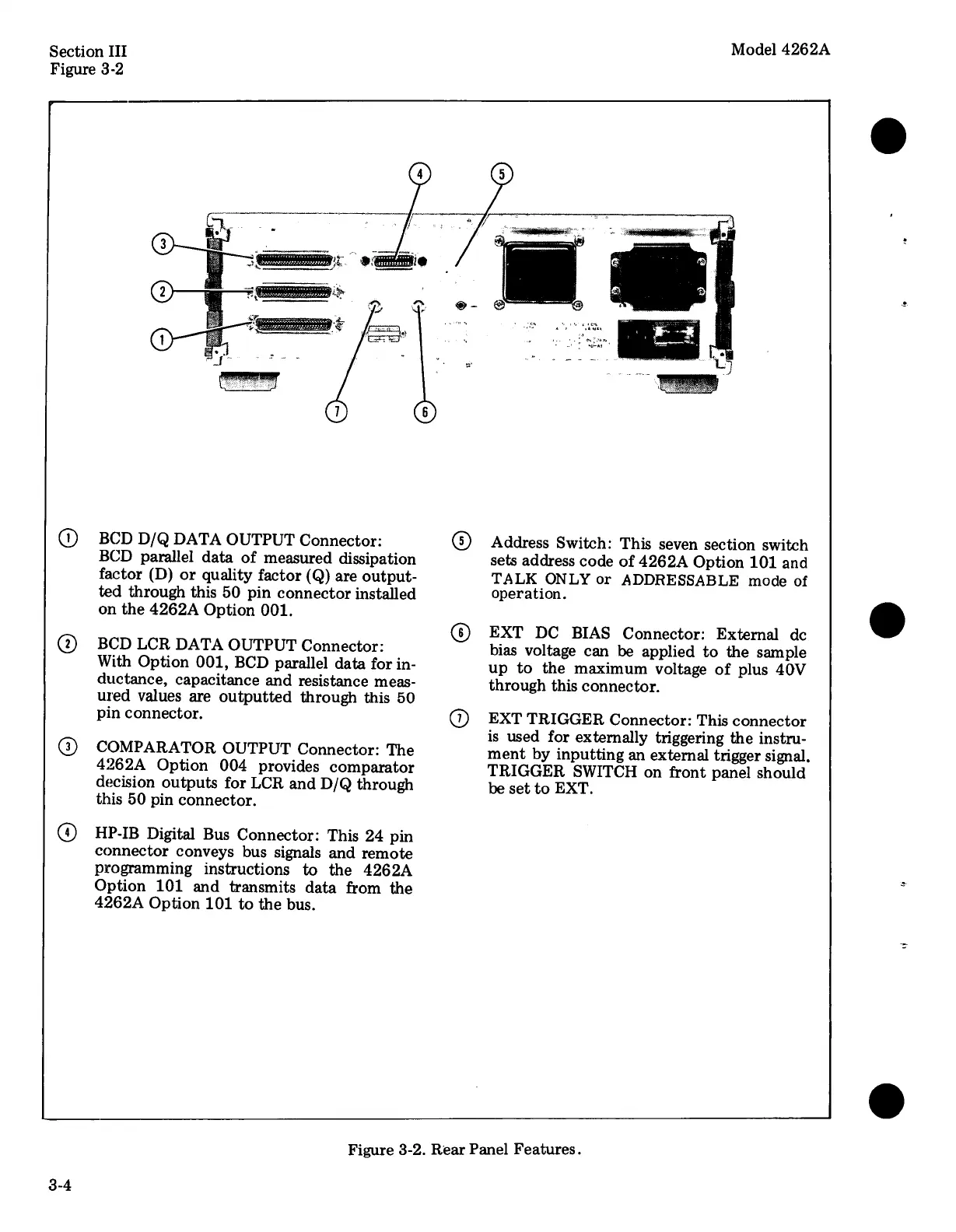

Figure 3-2. Rear Panel Features.
