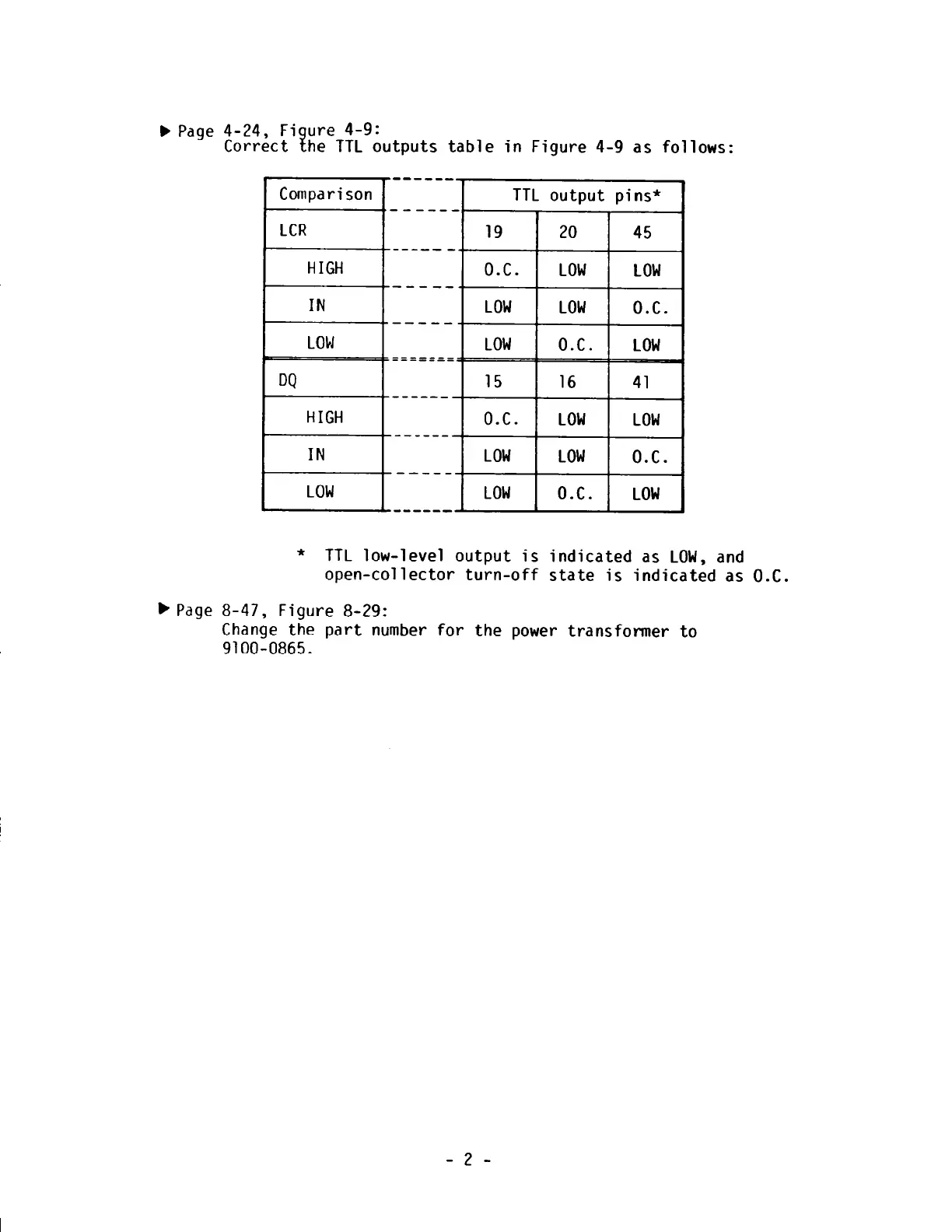

» Page 4-24, Figure 4-9: . )
Correct the TTL outputs table in Figure 4-9 as follows:
Comparison | TTL output pins*
LCR 19 20 45
WiGH | i 0.C. LOW LOW
w | LOW LOW 0.C.
LOW j_ _____ LOW 0.C. LOW
DQ o 15 16 41
HIGH 0.C. LOW LOW
N | LOW LOW 0.C.
oW | LOW 0.C. LOW
* TTL low-level output is indicated as LOW, and
open-collector turn-off state is indicated as 0.C.
» Page 8-47, Figure 8-29:
Change the part number for the power transformer to
9100-0865.
