HP 4262A User Manual

Section IV
Table 4-1

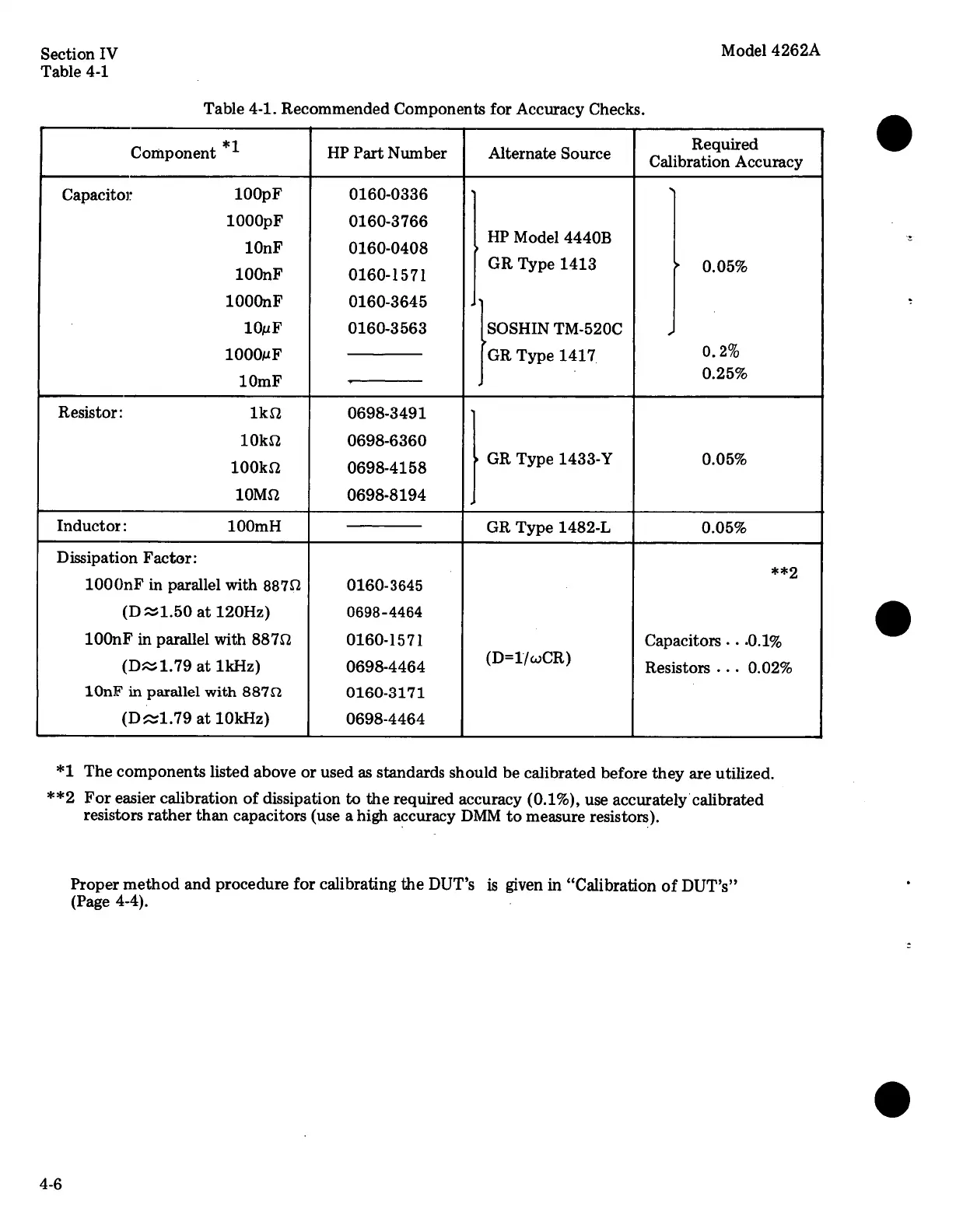

Table 4-1. Recommended Components for Accuracy Checks.
Model 4262A
Required
Component *1 HP Part Number Alternate Source Calibration Accuracy
Capacitor 100pF 0160-0336 3
1000pF 0160-3766
10nF 0160-0408 HP Model 4440B
100nF 0160-1571 GR Type 1413 [ 0.05%
1000nF 0160-3645
10uF 0160-3563 SOSHIN TM-520C ]
10004F GR Type 1417 0.2%
10mPF : 0.25%
Resistor: 1kQ 0698-3491
10k 0698-6360
100k 0698-4158 GR Type 1433-Y 0.05%
10MQ 0698-8194
Inductor: 100mH GR Type 1482-L 0.05%
Dissipation Factor: whg
1000nF in parallel with 8875 0160-3645
(D=21.50 at 120Hz) 0698-4464
100nF in parallel with 887 0160-1571 Capacitors - . .0.1%
(DA21.79 at 1kHz) 0698-4464 (D=1/wCR) Resistors - . . 0.02%
10nF in parallel with 887Q 0160-3171
(D=1.79 at 10kHz) 0698-4464
*1 The components listed above or used as standards should be calibrated before they are utilized.
**2 For easier calibration of dissipation to the required accuracy (0.1%), use accurately calibrated
resistors rather than capacitors (use a high accuracy DMM to measure resistors).
Proper method and procedure for calibrating the DUT’s is
(Page 4-4).
given in “Calibration of DUT’s”
