Expansion Cards
The computer has one PCI expansion slot, two PCI Express x1 expansion slots, and one PCI Express
x16 expansion slot. The expansion slots accommodate full-height or half-height expansion cards.

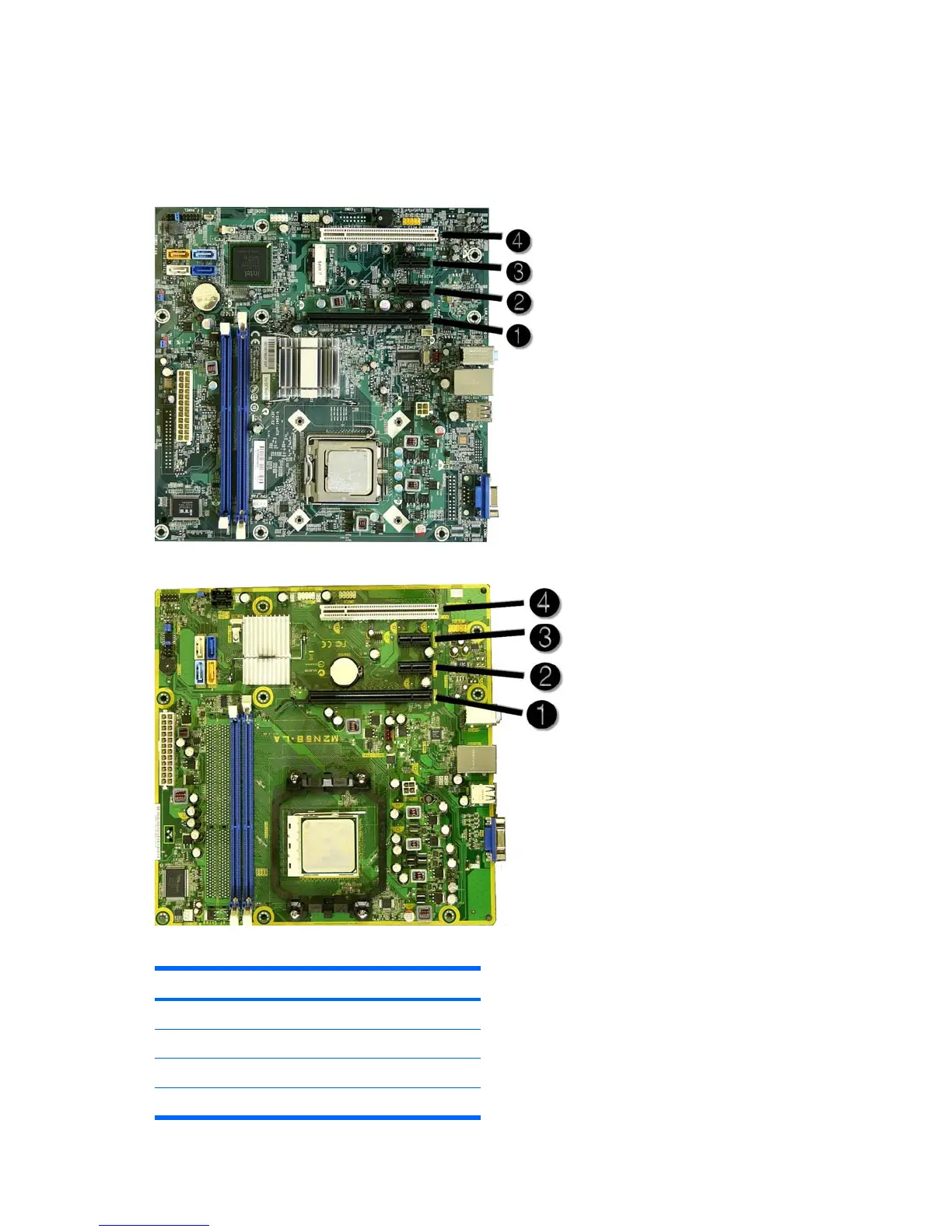

Figure 2-10 Expansion Slot Locations — 500B
Figure 2-11 Expansion Slot Locations — 505B
Table 2-2 Expansion Slot Locations
Item Description
1 PCI Express x16 expansion slot
2 PCI Express x1 expansion slot
3 PCI Express x1 expansion slot
4 PCI expansion slot
12 Chapter 2 Removal and Replacement Procedures Microtower (MT) Chassis
