Replacing an Optical Drive
To install an optical drive:
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 3).
2. Remove the access panel (
Access Panel on page 4).
3. Remove the front bezel (
Front Bezel on page 6).
4. If the new drive has screws installed on the sides of the drive, remove the screws before inserting
the drive into the chassis.
5. Push the replacement disc drive partially into the drive bay in the computer.

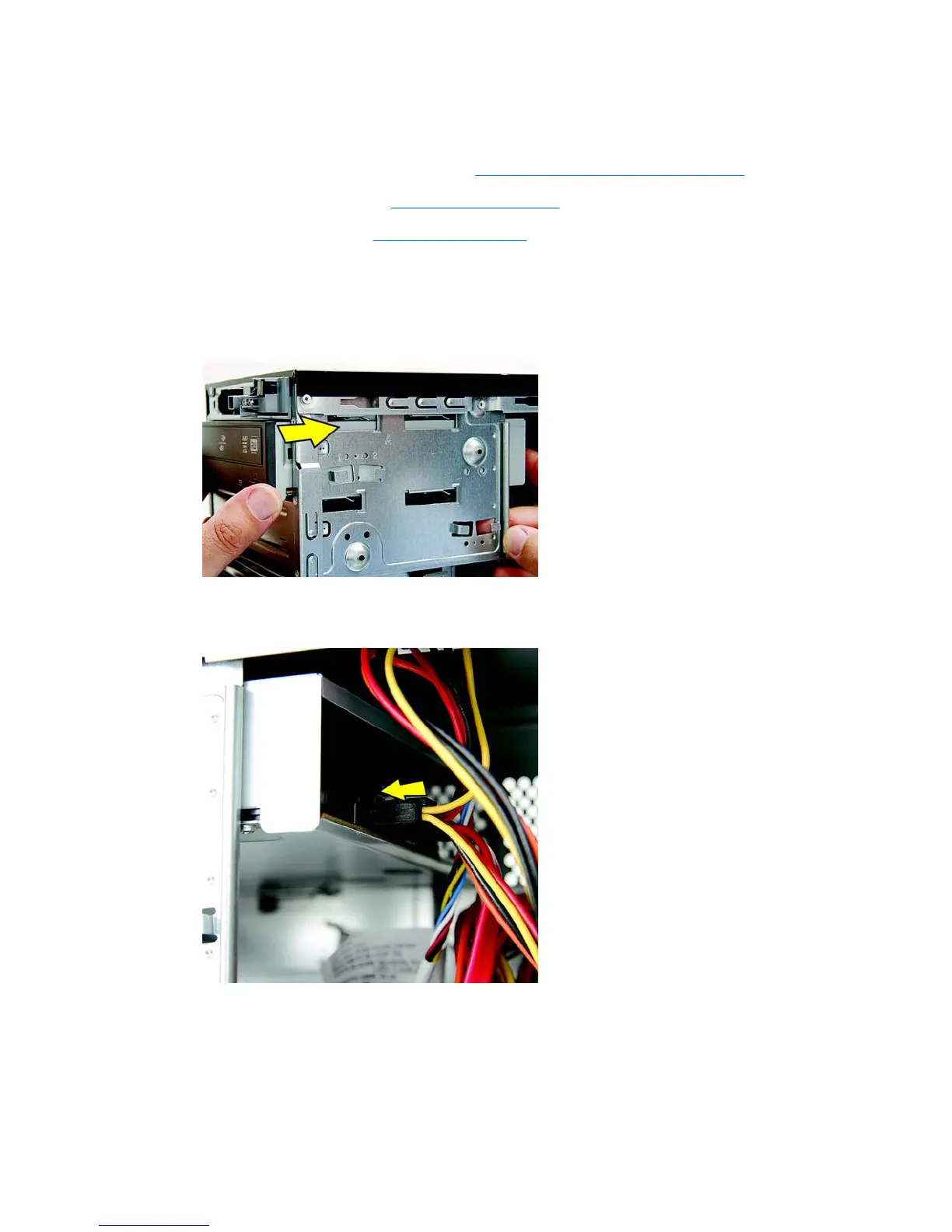

Figure 2-31 Installing the optical drive
6. Connect the power cable (1) and data cable (2) to the rear of the optical drive.
Figure 2-32 Connecting the power and data cables
Drives 25
