Removing an Optical Drive
CAUTION: All removable media should be taken out of a drive before removing the drive from the
computer.
To remove an optical drive:
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 3).
2. Remove the access panel (
Access Panel on page 4).
3. Remove the front bezel (
Front Bezel on page 6).

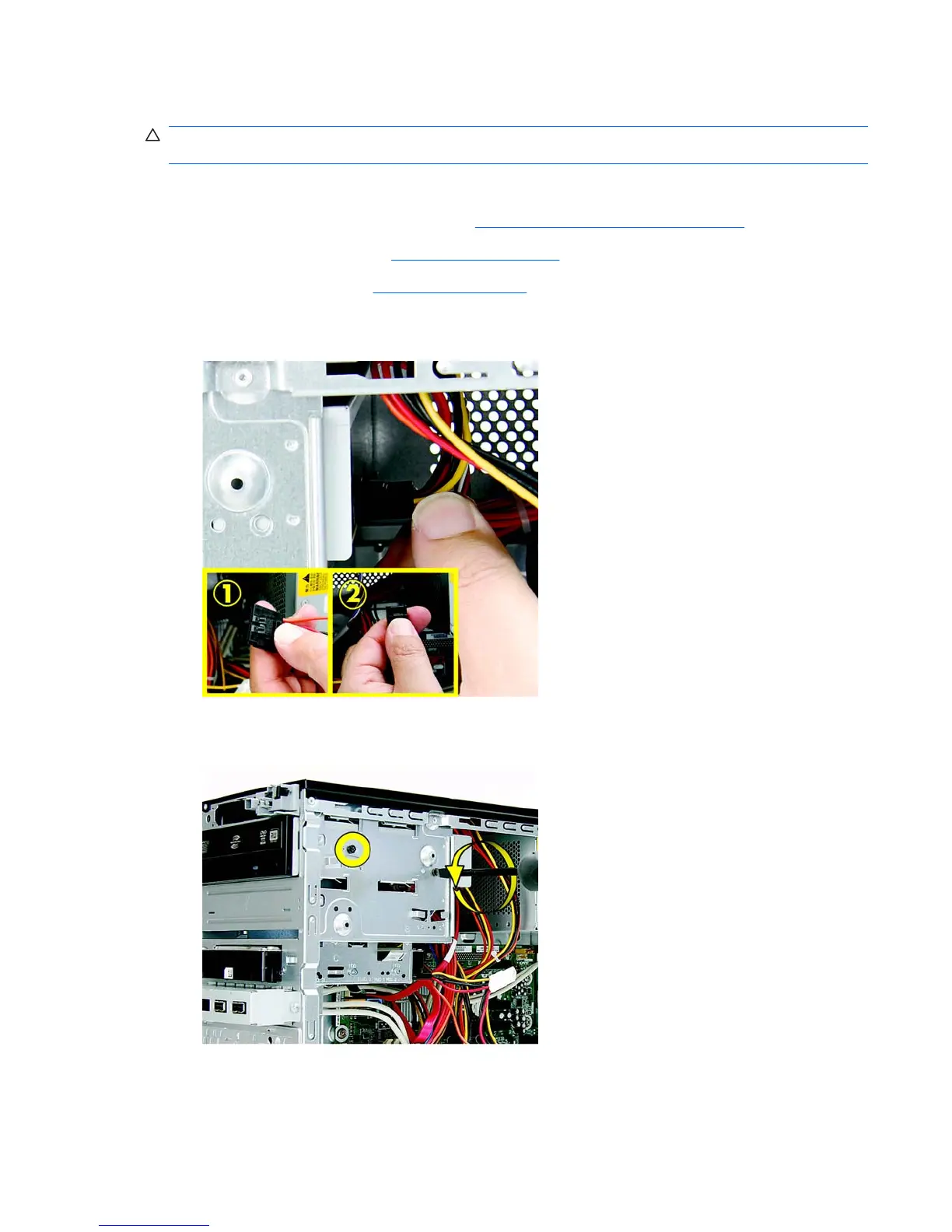

4. Disconnect the power cable (1) and data cable (2) from the rear of the optical drive.
Figure 2-27 Disconnecting the power and data cables
5. Remove the screws that fasten the disc drive in the computer.
Figure 2-28 Removing the optical drive screws
Drives 23
