HP 500B - Microtower PC User Manual

System Board Drive Connections
Refer to the following illustration and table to identify the system board drive connectors.

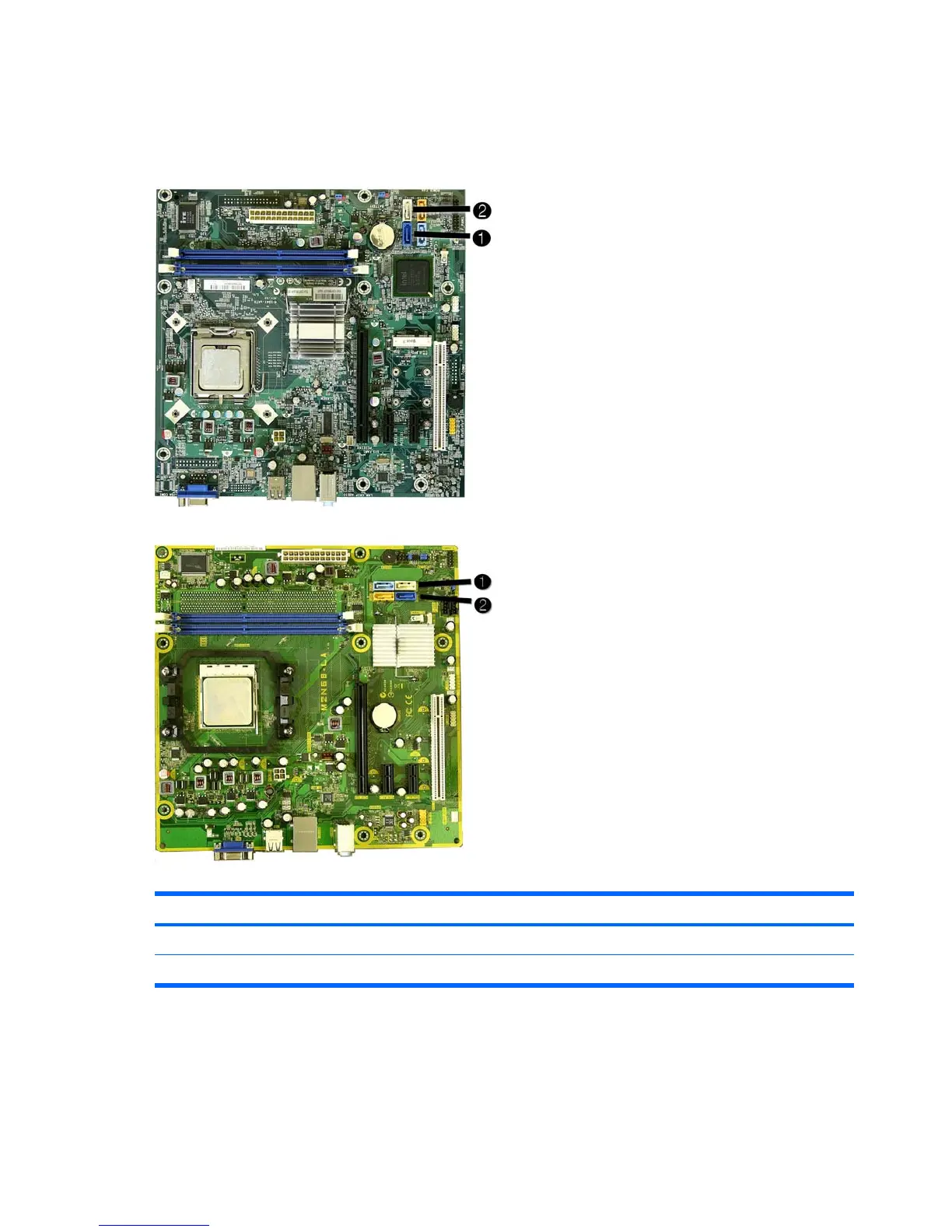

Figure 2-25 System Board Drive Connections — 500B
Figure 2-26 System Board Drive Connections — 505B
Table 2-5 System Board Drive Connections
No. System Board Label — 500B System Board Label — 505B Color
1 SATA1 SATA0 dark blue
2 SATA2 SATA1 white
22 Chapter 2 Removal and Replacement Procedures Microtower (MT) Chassis
