EAD fast deployment configuration example

Network requirements

As shown in Figure 36, the hosts at the intranet 192.168.1.0/24 are attached to port GigabitEthernet

1/0/1 of the network access device, and they use DHCP to obtain IP addresses.

Deploy EAD solution for the intranet so that all hosts must pass 802.1X authentication to access the

network.

To allow all intranet users to install and update 802.1X client program from a web server, configure the

following:

 Allow unauthenticated users to access the segment of 192.168.2.0/24, and to obtain IP address on

the segment of 192.168.1.0/24 through DHCP.

 Redirect unauthenticated users to a preconfigured web page when the users use a web browser to

access any external network except 192.168.2.0/24. The web page allows users to download the

802.1X client program.

 Allow authenticated 802.1X users to access the network.

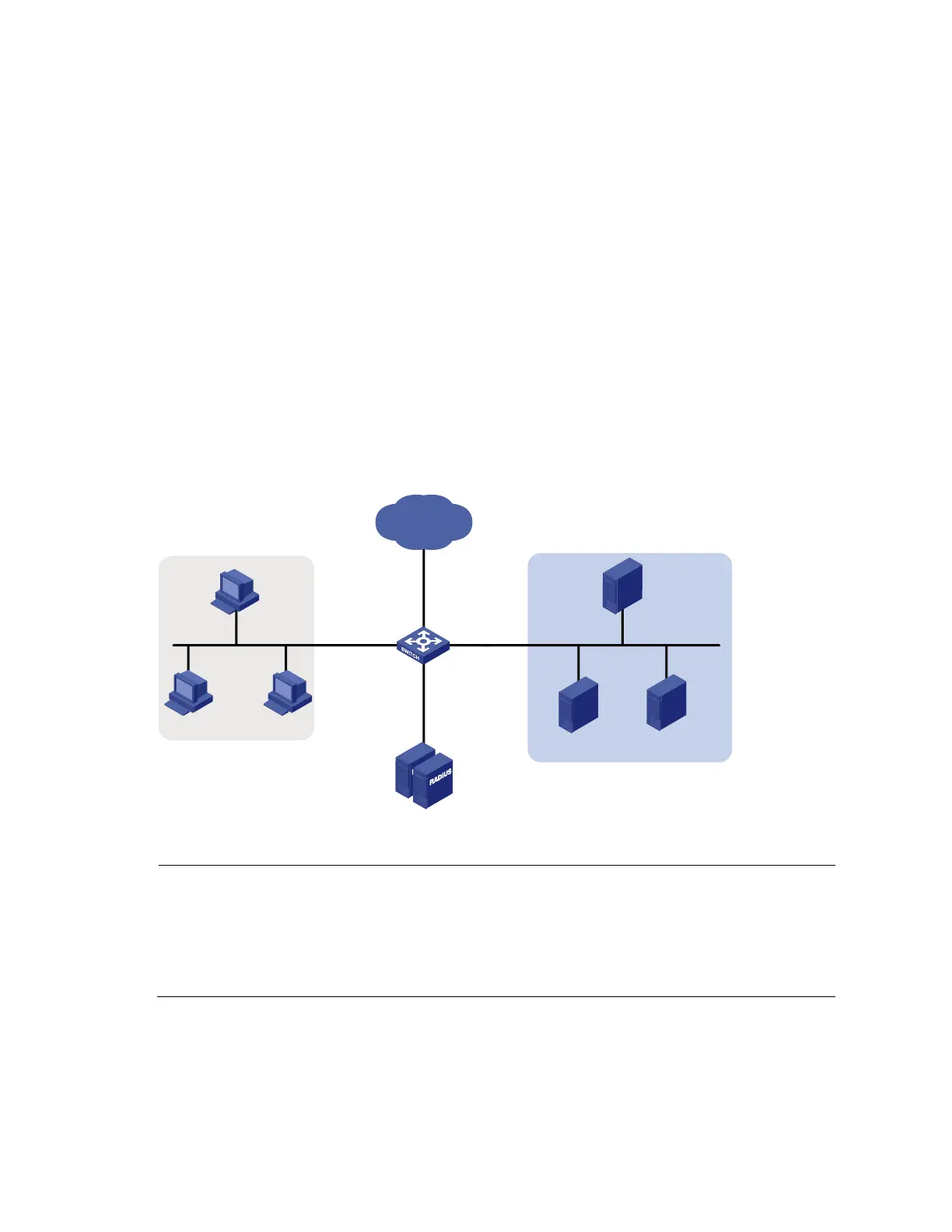

Figure 36 Network diagram for EAD fast deployment

GE1/0/2

10.1.1.10/24

GE1/0/1

Free IP:

Web server

192.168.2.3/24

Internet

192.168.1.0/24

Vlan-int 2

192.168.1.1/24

192.168.2.0/24

GE1/0/3

192.168.2.1/24

DHCP server

192.168.2.2/24

Authentication server cluster

10.1.1.1/10.1.1.2

NOTE:

In addition to the configuration on the access device, complete the following tasks:

 Configure the DHCP server so that the host can obtain an IP address on the segment of 192.168.1.0/24.

 Configure the web server so that users can log in to the web page to download 802.1X clients.

 Configure the authentication server to provide authentication, authorization, and accounting services.

Configuration procedure

1. Configure DHCP relay.

# Enable DHCP.

<Device> system-view
