HP 525 User Manual

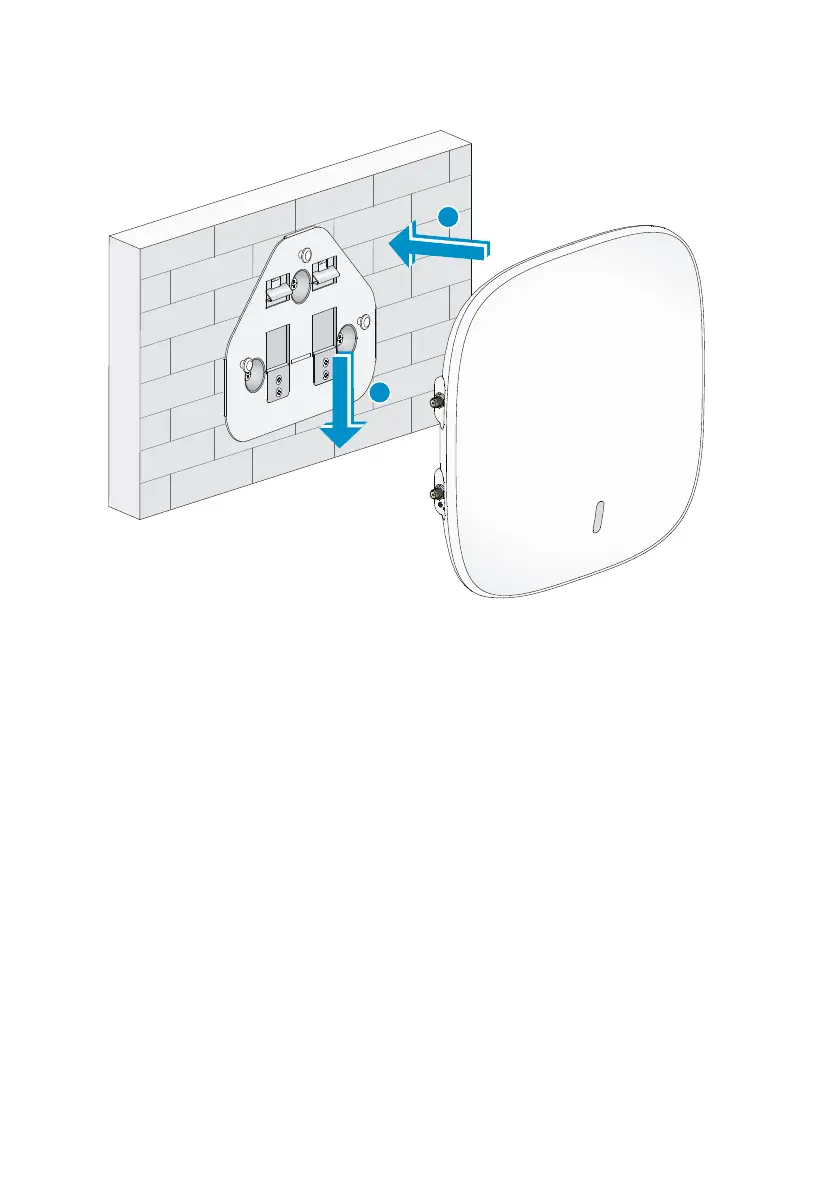

Figure 4 Mounting the AP to the wall mounting bracket
Mounting the AP on a suspended
ceiling
The AP can be mounted on a suspended ceiling by using a T-rail holder.
Note: The width of the T-rail must be in the range of 16 mm to 28 mm (0.63
in to 1.10 in).
1. Loosen the four M3 screws (7) on the clip holders (3).
1
2
8

HP 525 Specifications

General

Device Type	Wireless Access Point
Frequency Band	2.4 GHz and 5 GHz
Ethernet Ports	1
Wireless Protocol	802.11a/b/g/n
Ports	1 x 10/100/1000 Ethernet port
PoE	802.3af
Antennas	2 internal antennas
Security Features	WPA, WPA2
Power Source	PoE or External Power Adapter
Operating Temperature	0°C to 40°C (32°F to 104°F)
Dimensions	5.7 x 5.7 x 1.3 inches (145 x 145 x 33 mm)
