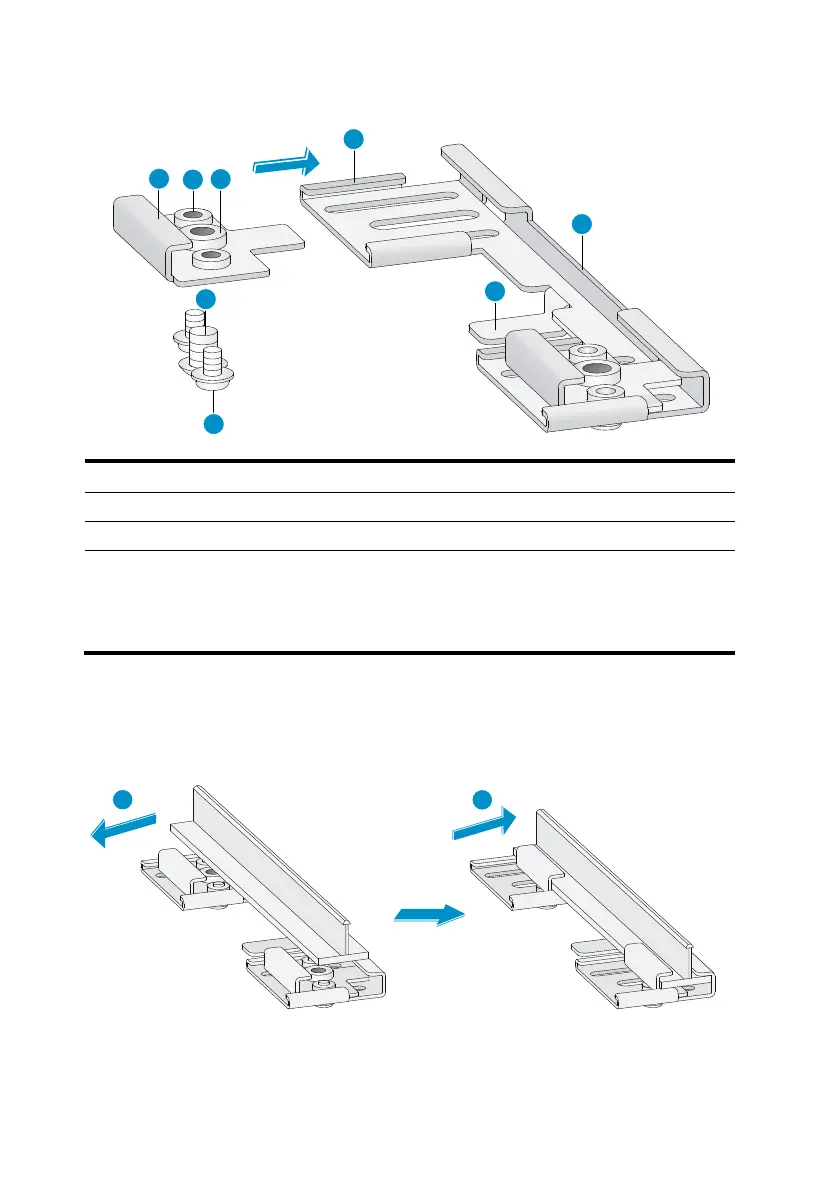

Figure 5 T-rail holder
1: T-rail clip
2: M3 screw nut
3: M4 screw nut
4: Clip holder
5: T-rail holder
6: Mounting hook
7: M4 × 5 screw, Length ( 7.6mm /
0.3in ), Wrench size ( 7mm / 0.28in ),
Thread size ( 4mm / 0.16in )
8: M3 × 8 screw, Length ( 10mm /
0.39in ), Wrench size ( 5.5mm /
0.22in ), Thread size ( 3 mm /
0.12in )
2. Slide the T-rail clips away from the T-rail holder until the opening is wider
than the T-rail (arrow 1).
Figure 6 Attaching the T-rail holder to the T-rail
1
3
4
6
7
8
2
5
1 2
