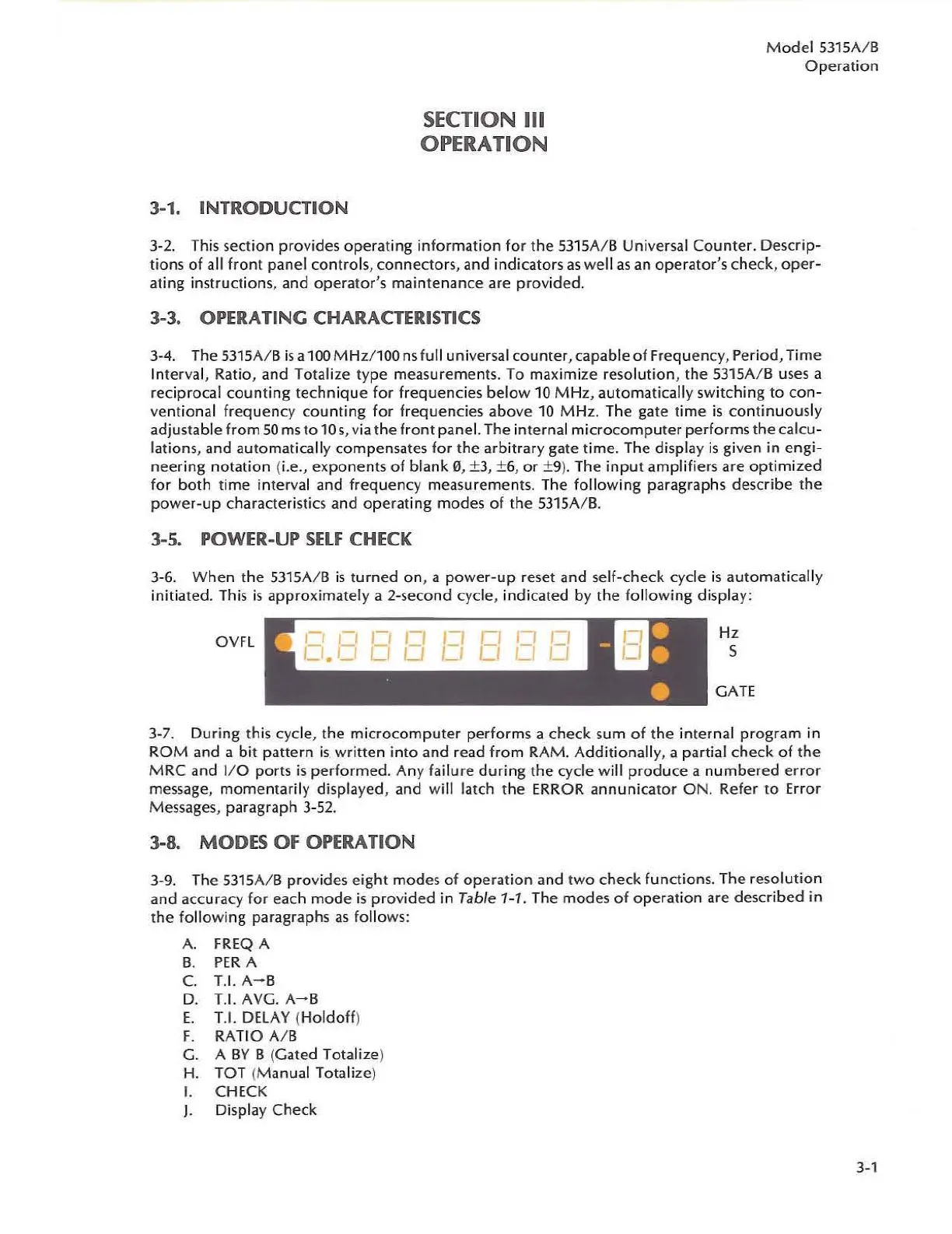

Mode l 5315A/ B
O peration
3-1. INTRODUCTION
SECTION III
OPERATION
3-2. This se cti on provides operating i nformation fo r the 53 15 A/ B Un iver sa l Counter. Descrip-
tions of all front panel control s, connedors, and ind icators as we ll as an operator's check, oper-
at ing in structions, a nd operator's ma in te na nce are prov ided.
3-3. OPERATING CHARACTERISTICS
3-4. The 5315A/B is a 100 M H z/ 100 ns full universa l counter, capable of Frequency, Period, Tim e
Interval, Ratio, a nd Totalize type mea su remen ts. To maxim i ze resol ution, the 5315A/ 8 uses a
recipr
oc al counting techn iqu e for frequencies be l ow 10 M Hz, automatically sw i tc hin g to co n-
ve ntional frequenc y cou nting fo r fr eque nci es a bo ve 10 M Hz. The gate t im e is co n tinuous ly
adju
sta ble fr om 50 ms to 10 s, via th e fr ont panel. The internal mic ro compute r performs the calcu-
lation
s, and au tomatic ally compensates f or the arb itr ary gate time. The display is given in en gi -
neering notati on (Le., exponents of blank 0, ±3, ±6, or ±9 ). The in put amplifiers are optimized
for both t im e i nte rval and frequency mea su remen ts. The fo ll owing paragraphs desc ribe t he
powe r-up char ac teristics and operating modes of the 5315 A/ B.
3-5. POWER-UP SELF CHECK
3-6. When the 5315 A/B is turned on , a po wer -up reset and se lf- check cycle is au tomatic ally
i ni tiated. This is approximately a 2-second cycle, indicated by th e fo ll ow in g display:
OV FL
Hz
5
GATE
3 -7 . Dur ing this cycle, th e mic rocomp uter perform s a check su m of the int ernal program in
ROM and a bi t pattern is written i nto and read f rom RAM. Addit ionally, a partial check of the
M RC a nd 1/ 0 ports is per formed . Any failure during the cycle w ill prod u ce a number ed error
message, momentarily d is pla ye d, and will la tch the ERROR a nnun icator ON . Refer to Error
M
es sages, paragraph 3 -5 2.
3-8. MODES OF OPERATION
3 -9. The 5315A/B pro vides eig ht mode s of operation and two check func tion s. The reso luti on
and accuracy for each mode is prov id ed in Table 1-1 . The modes of operation are desc rib ed in
the followi ng pa r ag raphs as fo llows:
A. FREQ A
B. PER A
C. T. I. A- B
D. T.I. AV G. A -B
E. T.I. DELAY (H oldoff )
F. RA TI O Al B
G.
H.
I.
J.
A BY B (Gated Totali ze )
TOT
( Man u al Totalize)
C HE CK
Di sp la y Check
3-1
