Model 5315A/B
Service

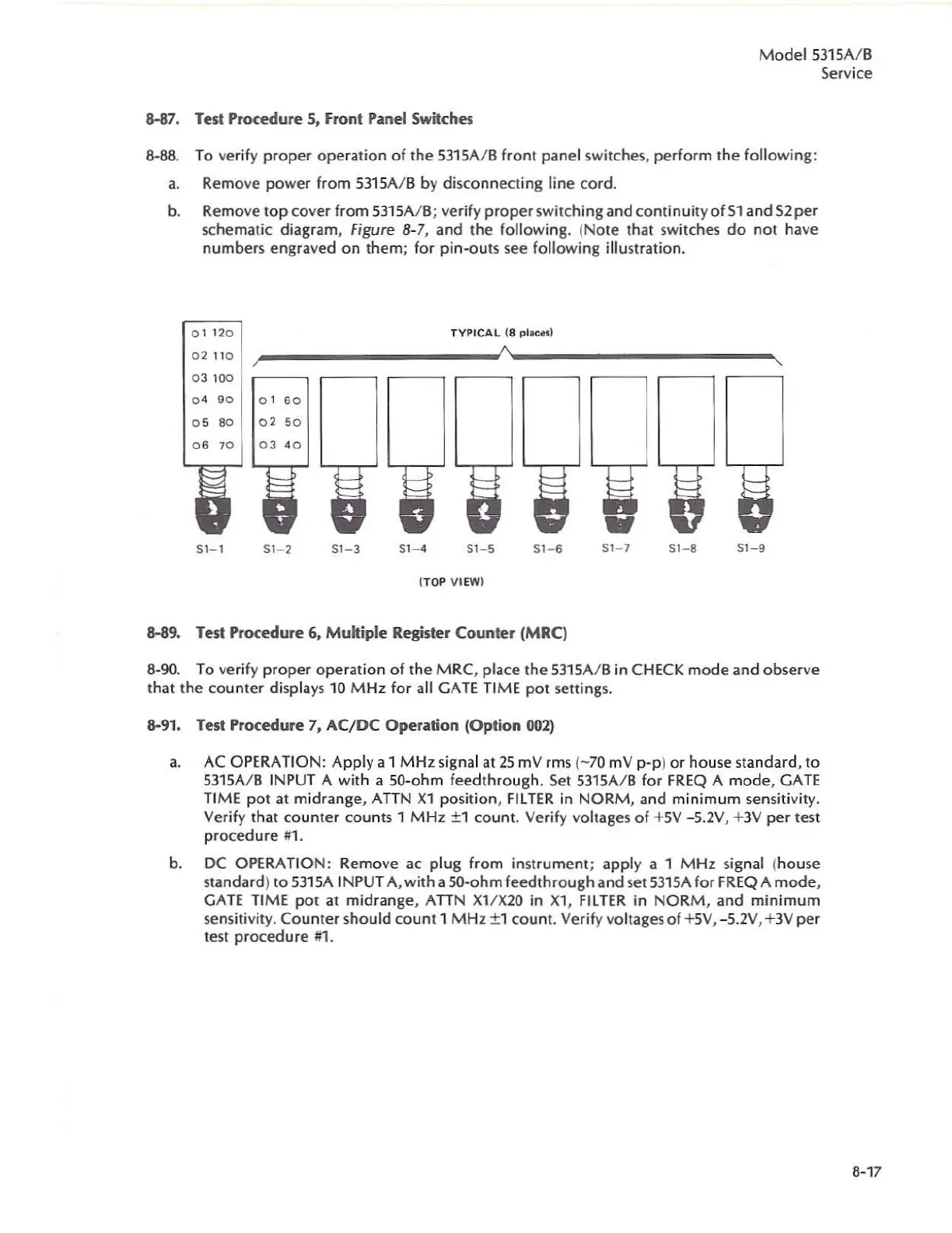

8-87. Test Procedure 5, Front Pimel Sw it ches
6·68. To ve ri fy pr oper operation of the 5315A/ B front panel switches, perform the following:
a. Remove power from 53 15A/ B by disconnecting line cord.
b. Remove
top cover from 5315A / B; verify proper switching and continuity of Sl and 52 per
schematic diagram,
figure 8· 7, and the followi n g. ( No te that switches do not have
numbers engraved on
them; for pin ·outs see follow ing illustration.
01 1 20
T YP I CAL (8 plKtf'
02 11 0
~ ________ ~A ____________ ~
,
0 310 0
O'
90
0 '
60
0 5
80
02 50
0 6 70
03 4 0
51-1 SI- 2
SI-3 51- 4 51 - 5 SI-6
51 - 1
SI- 8
51 - 9
( TOP VIEW)
8-89. Test Procedure 6. Multiple Register Counter (MRC)
8·90. To v erify proper operation of the MRC, place the 5315A/ B in CHECK mode and observe
that the
counter di sp la ys 10 MHz for all GATE TIME pot settings.
8-91 . Test Procedure 7. AC/DC Operation (Option 002)
a. AC OPERATION: Apply a 1 MHz signal at 25 mV rms (- 70 mV p.p ) or house standard. to
5315A/ B IN PUT A wit h a 50-ohm feedthrough. 5et 5315A/ B for FREQ A mode. GATE
TIME pot at midrange, ATTN Xl posi tion, FILTER in NORM. and minimum sensitivity.
Ver
if y that counter counts 1 MHz ±1 count. Ve rif y "ohages of + 5V -5.2V, +3V per test
procedure #
1.
b. DC OPERATI ON: Remove ac plug from instrument; apply a 1 M Hz signal ( hou se
standard) to 53 15A INPUT A, with a SO-ohm feed through and set 5315A for FREQ A mode ,
GATE TIME pot at midrange, A TT N XlIX20 in Xl , FILTER in NORM, and minimum
sensitivity. Counter should count 1 M Hz ±1 count. Ve rif y voltages of + 5V , - 5.2V , + 3V per
t
est procedure #1.
8-17
