Operating
Your
Oscilloscope
To
use
delayed
sw11p

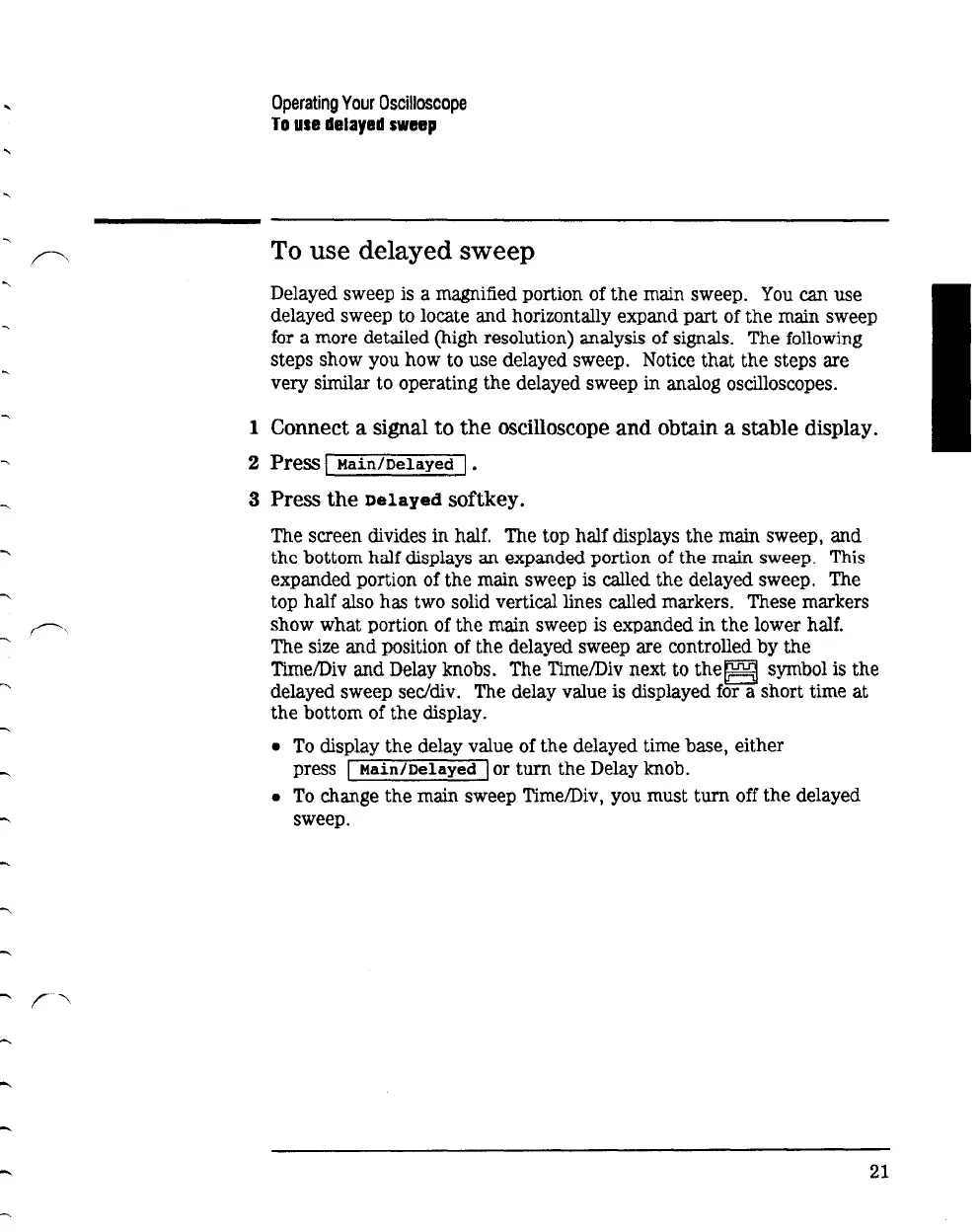

To use delayed sweep
Delayed sweep
is
a magnified portion of the main sweep.
You
can use
delayed sweep to locate and horizontally expand part of the main sweep
for
a more detailed
(high
resolution) analysis of signals. The following
steps show you how to use delayed sweep. Notice that the steps are
very similar to operating the delayed sweep
in
analog oscilloscopes.
1 Connect a signal to the oscilloscope and obtain a stable display.
2 Press I
Main/Delayed
I .
3 Press
the
Delayed
softkey.
The screen divides
in
half. The top half displays the main sweep, and
the bottom half displays an expanded portion of the
main sweep. This
expanded portion of the main sweep is called the delayed sweep. The
top half also has two solid vertical lines called markers. These markers
show what portion of the main sweep is expanded in the lower half.
The size and position of the delayed sweep are controlled by the
Time/Div and Delay knobs. The Time/Div next to
the~
symbol is the
delayed sweep sec/div. The delay value is displayed
for
a short time at
the bottom of the display.
•
To
display the delay value of the delayed time base, either
press
I
Main/Delayed
I or turn the Delay knob.
•
To
change the main sweep Time/Div, you must turn off the delayed
sweep.
21
