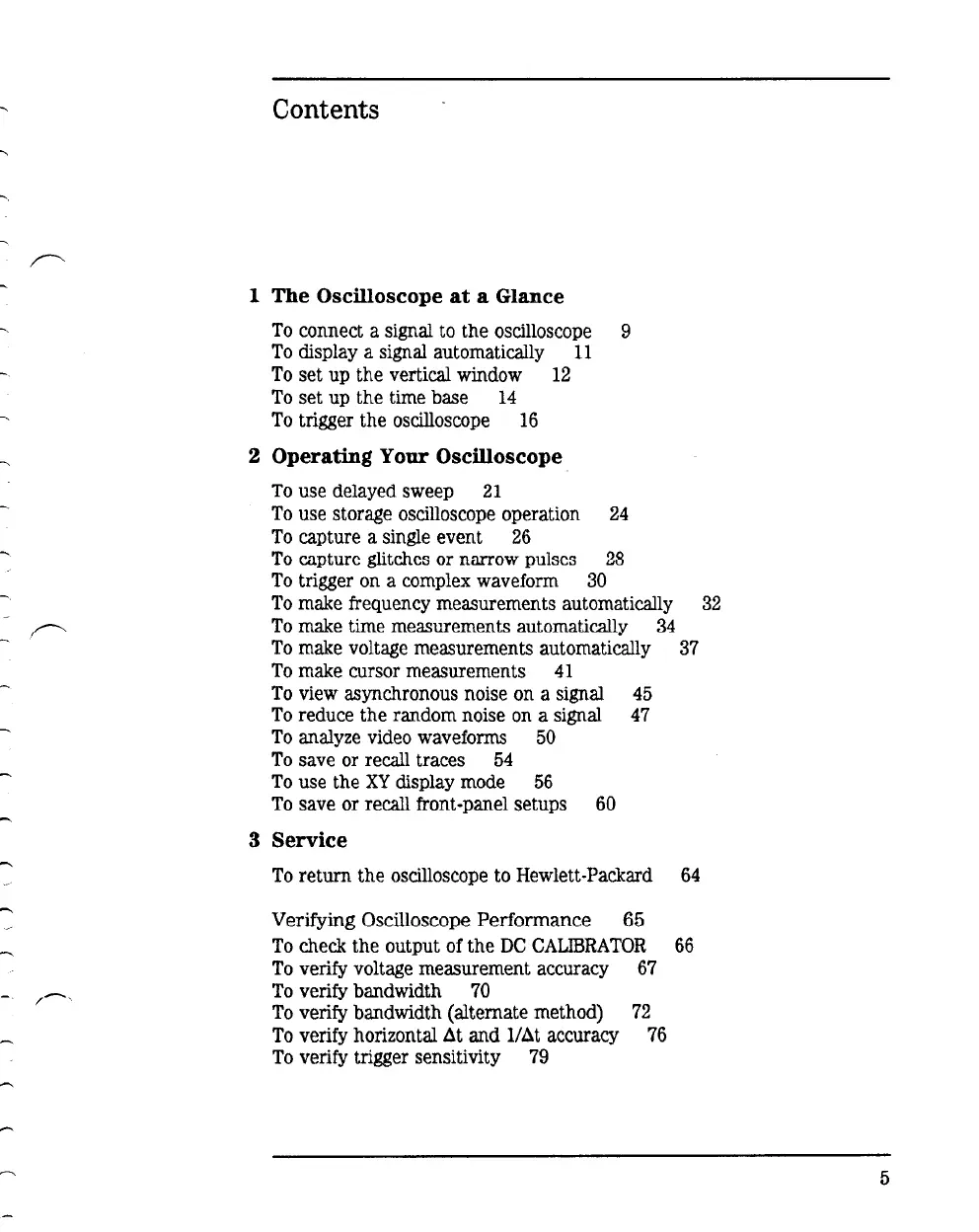

Contents
1 The Oscilloscope at a Glance
To connect a signal to the oscilloscope 9
To display a signal automatically 11
To set up the vertical window 12
To set up the time base 14
To trigger the oscilloscope 16
2 Operating Your Oscilloscope
To use delayed sweep 21
To use storage oscilloscope operation 24
To capture a single event 26
To capture glitches or narrow pulses 28
To trigger on a complex waveform 30
To make frequency measurements automatically 32
To make time measurements automatically 34
To make voltage measurements automatically 37
To make cursor measurements 41
To view asynchronous noise on a signal 45
To reduce the random noise on a signal 47
To analyze video waveforms 50
To save or recall traces 54
To use the XY display mode 56
To save or recall front-panel setups 60
3 Service
To return the oscilloscope to Hewlett-Packard 64
Verifying Oscilloscope Performance 65
To check the output of the DC CALIBRATOR 66
To verify voltage measurement accuracy 67
To verify bandwidth 70
To verify bandwidth (alternate method) 72
To verify horizontal.:lt and 1/.:lt accuracy 76
To verify trigger sensitivity 79
