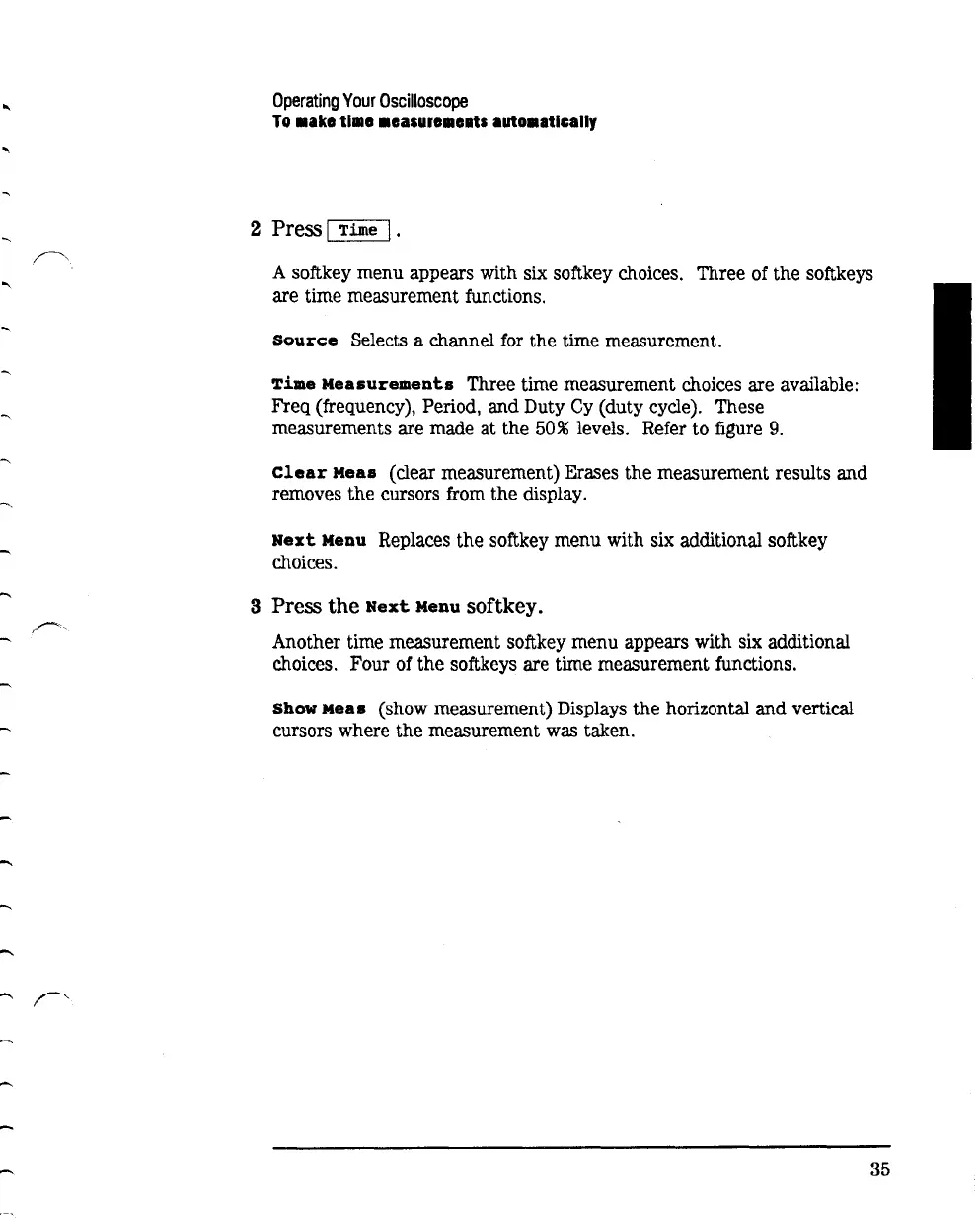

Operating
Your
Oscilloscope
To
•ake
time
•easureme1ts auto•atlcally
2 Press I Time
1.
A softkey menu appears with six softkey choices. Three of the softkeys
are time measurement functions.
Source
Selects a channel for
the
time measurement.
Time
Measurements
Three time measurement choices are available:
Freq (frequency), Period, and Duty
Cy
(duty cycle). These
measurements are made at the
50%
levels. Refer to figure
9.
Clear
Meas
{clear measurement) Erases the measurement results and
removes the cursors from the display.
Hext
Menu Replaces the softkey menu with six additional softkey
choices.
3 Press
the
Next
Menu softkey.
Another time measurement softkey menu appears with six additional
choices. Four of the softkeys are time measurement functions.
Show
Meas
(show measurement) Displays
the
horizontal
and
vertical
cursors where the measurement was taken.
35
