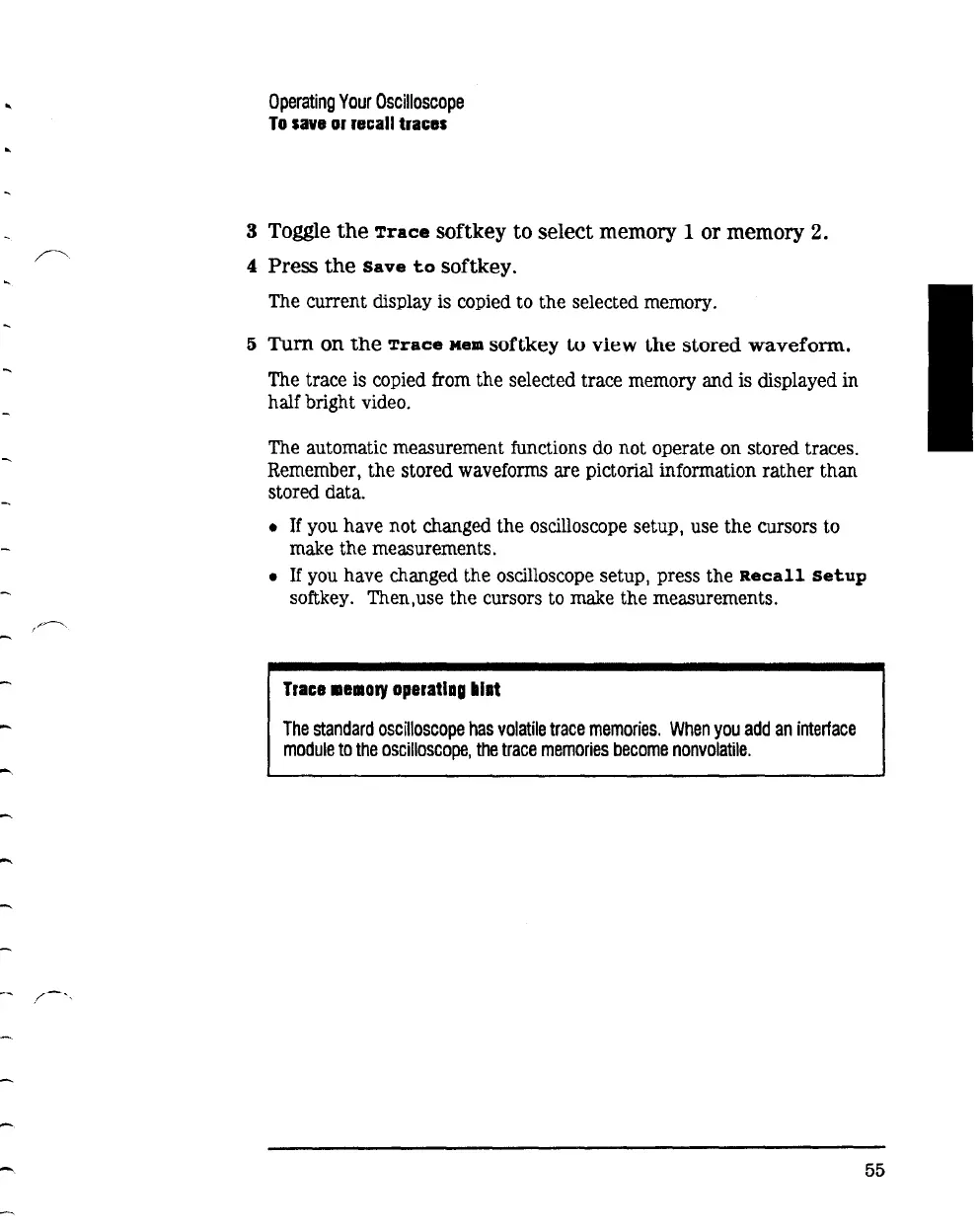

Operating
Your
Oscilloscope
To
save
or
recall
traces
3 Toggle
the
Trace
softkey to select memory 1 or memory
2.
4 Press
the
save
to
softkey.
The current display is copied to the selected memory.
5
Tum
on
the
Trace
Mem
softkey
tu
view
the
stored
waveform.
The trace is copied from the selected trace memory and is displayed in
half bright video.
The automatic measurement functions
do
not operate on stored traces.
Remember, the stored waveforms are pictorial information rather than
stored data.
•
If
you have not changed the oscilloscope setup, use the cursors to
make the measurements.
•
If
you have changed the oscilloscope setup, press the
Recall
setup
softkey. Then,use the cursors to make the measurements.
Trace
memory
operatiaglllat
The
standard
oscilloscope
has
volatile
trace
memories.
When
you
add
an
inter1ace
module
to
the
oscilloscope,
the
trace
memories
become
nonvolatile.
55
