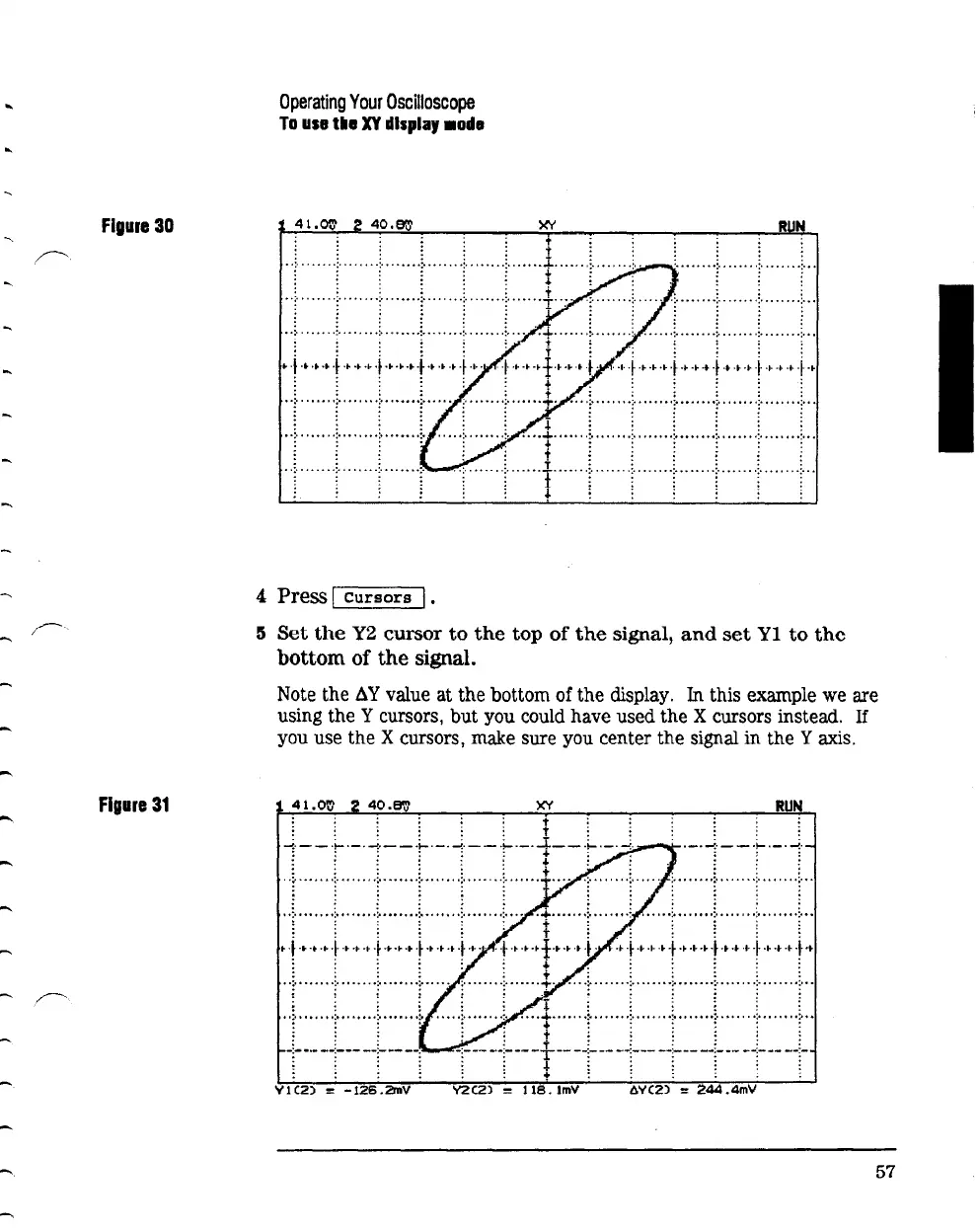

Figure 30
~··
Figure 31
Operating Your Oscilloscope
To use tile XY display •ode
4 Press I cursors I .
R
·• ·•... ...... ... . ..
5 Set the Y2 cursor to the top of the signal, and set Yl to the
bottom of the signal.
Note the 11Y value at the bottom of the display. In this example we are
using
theY cursors, but you could have used the X cursors instead. If
you use the X cursors, make sure you center the signal in theY axis.
41.0~ 40.~
RUN
: t
~·-- ·r ·-·l·-- ·r ·-·l·-- -~ ·-·i-- ·~ ·-· _;.
V1C2) = -126.2mV
V2C2) =
tJ.VC2) = 244.4mV
57
