EVA6400 storage system connections
Figure 23 (page 28) shows a typical EVA6400 SAN topology:
• The HSV400 controllers connect via four host ports (FP1, FP2, FP3, and FP4) to the Fibre
Channel fabrics. The hosts that will access the storage system are connected to the same
fabrics.
• The HP P6000 Command View management server also connects to both fabrics.
• The controllers connect through one loop pair to the drive enclosures. The loop pair consists
of two independent loops, each capable of managing all the disks should one loop fail.

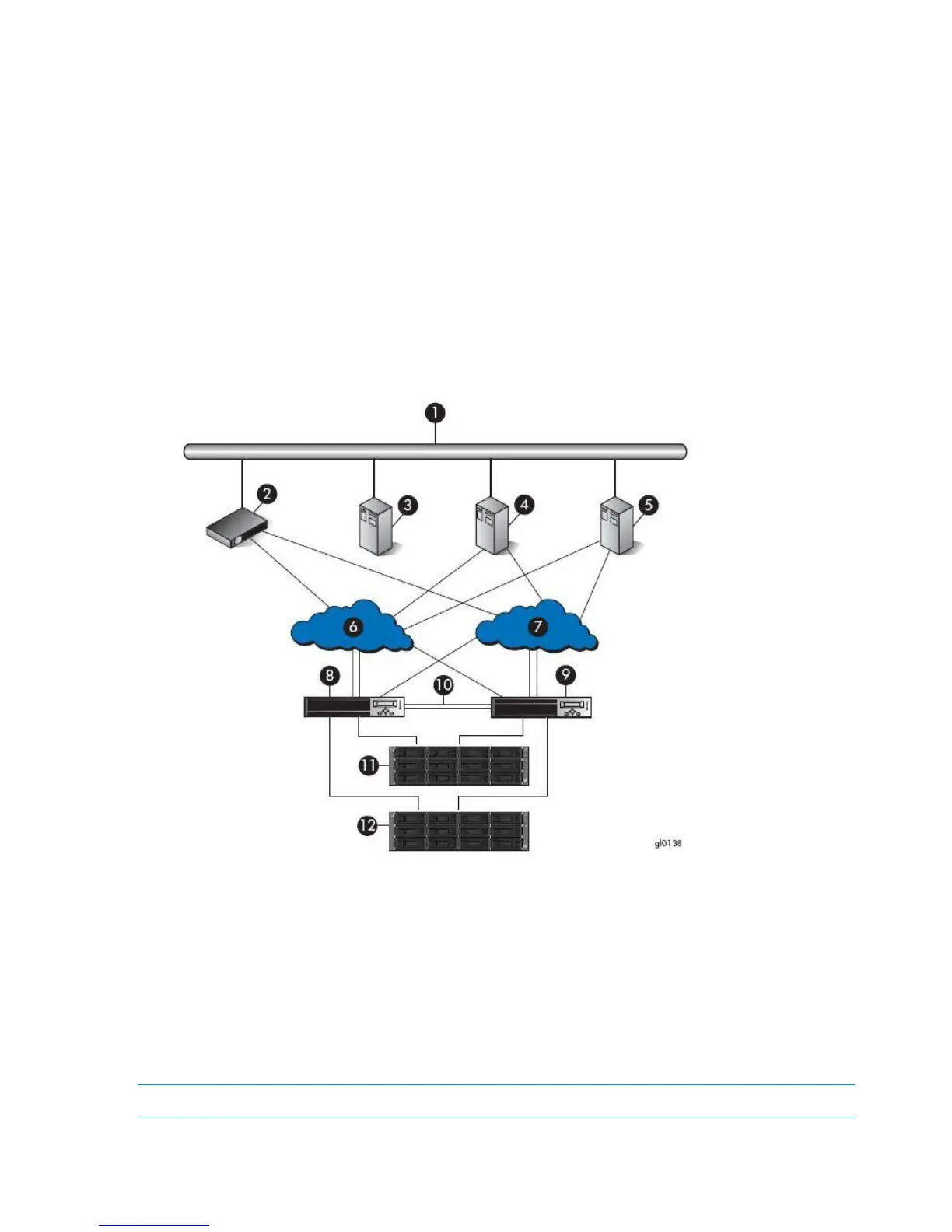

Figure 23 EVA6400 configuration
7 Fabric 21 Network interconnection
8 Controller A2 Management server
9 Controller B3 Non-host
10 Cache mirror ports4 Host A
11 Drive enclosure 15 Host B
12 Drive enclosure 26 Fabric 1
Direct connect
NOTE: Direct connect is currently supported on Microsoft Windows only.
Direct connect provides a lower cost solution for smaller configurations. When using direct connect,
the storage system controllers are connected directly to the host(s), not to SAN Fibre Channel
28 Enterprise Virtual Array startup
