Installation Guide

Connecting the cabling

1. Connect the injector(s) to the GC. Use the tray cable, HP part number

G2614-60610, to connect the tray to the use GC. See Figure 7.

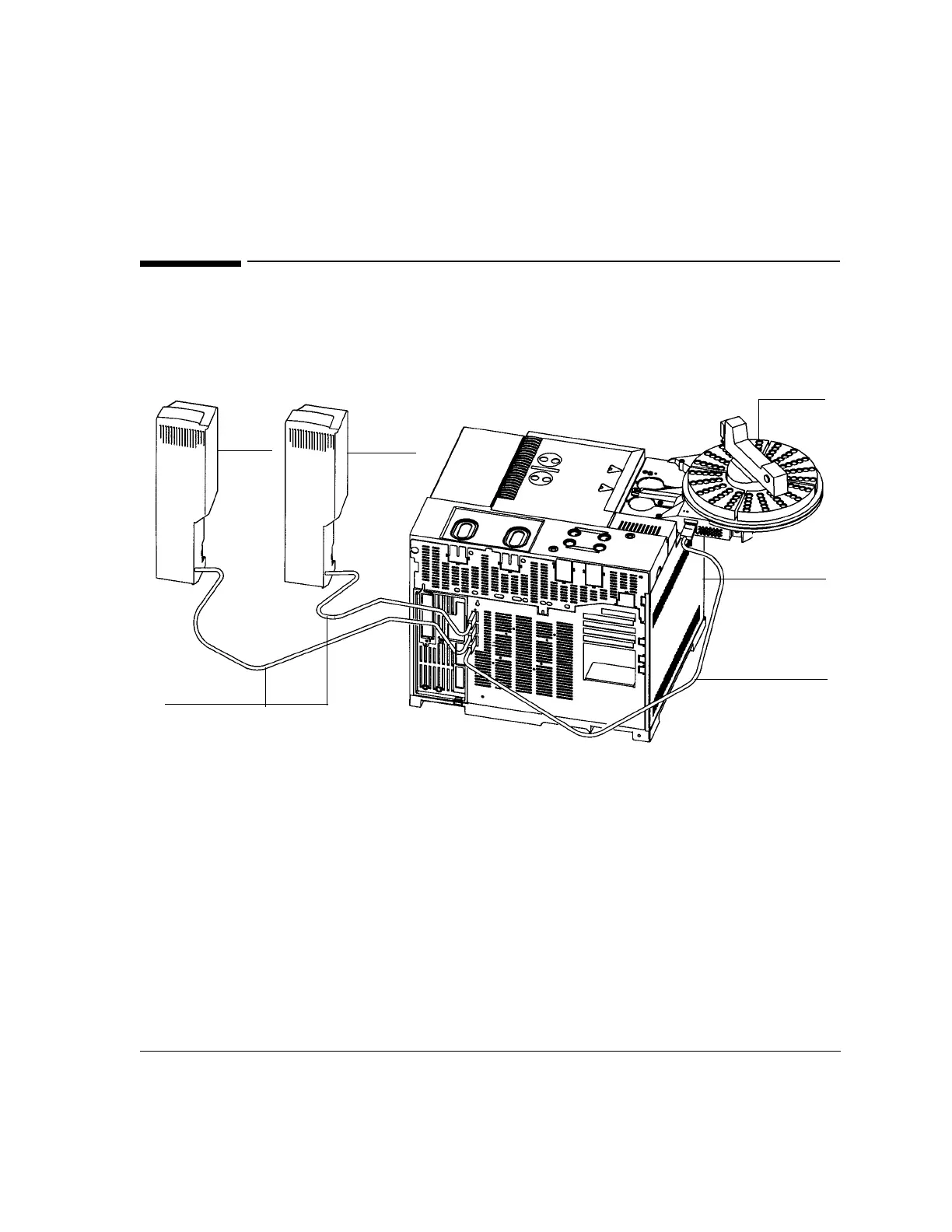

Figure 7 HP 7683 Automatic Liquid Sampler cabling

2. When the cables are connected, turn on the GC power. The tray will beep

twice. After the start-up process ends, the Ready light on the injector tower

should be on.

If the Align Mode light is on, see Turret alignment on page 16.

If either the Fault or Run light is on, see Faults on page 25.

HP 6890 Plus GC

G2613A

Injector

(Front)

G2613A

Injector

(Back)

Injector cables

Tray cable

G2614A

Tray
