HP-IB Status Commands
This chapter gives a list of the HP 8153A HP-IB commands and queries used for
determining the status of the instrument.
The Statius Registers
The building blocks of the status information circuitry are three types of
register, and two kinds of transition filters. These registers and filters are
grouped together to make a node. Each node has a condition register, a positive
transition register, a negative transition register, an event register and an enable
register.
I 1 i I i lEnable Reqister
4
J
To the
OR Condition Rnyister
of the Next N'ode
U
T_n
riLJ Event Reqister
1
L
j
(-'
—
h
[~|
3-,
111
b±
febl.
i i I L I j rriTlTl Trans ition Registers
III III CoJiclition Register

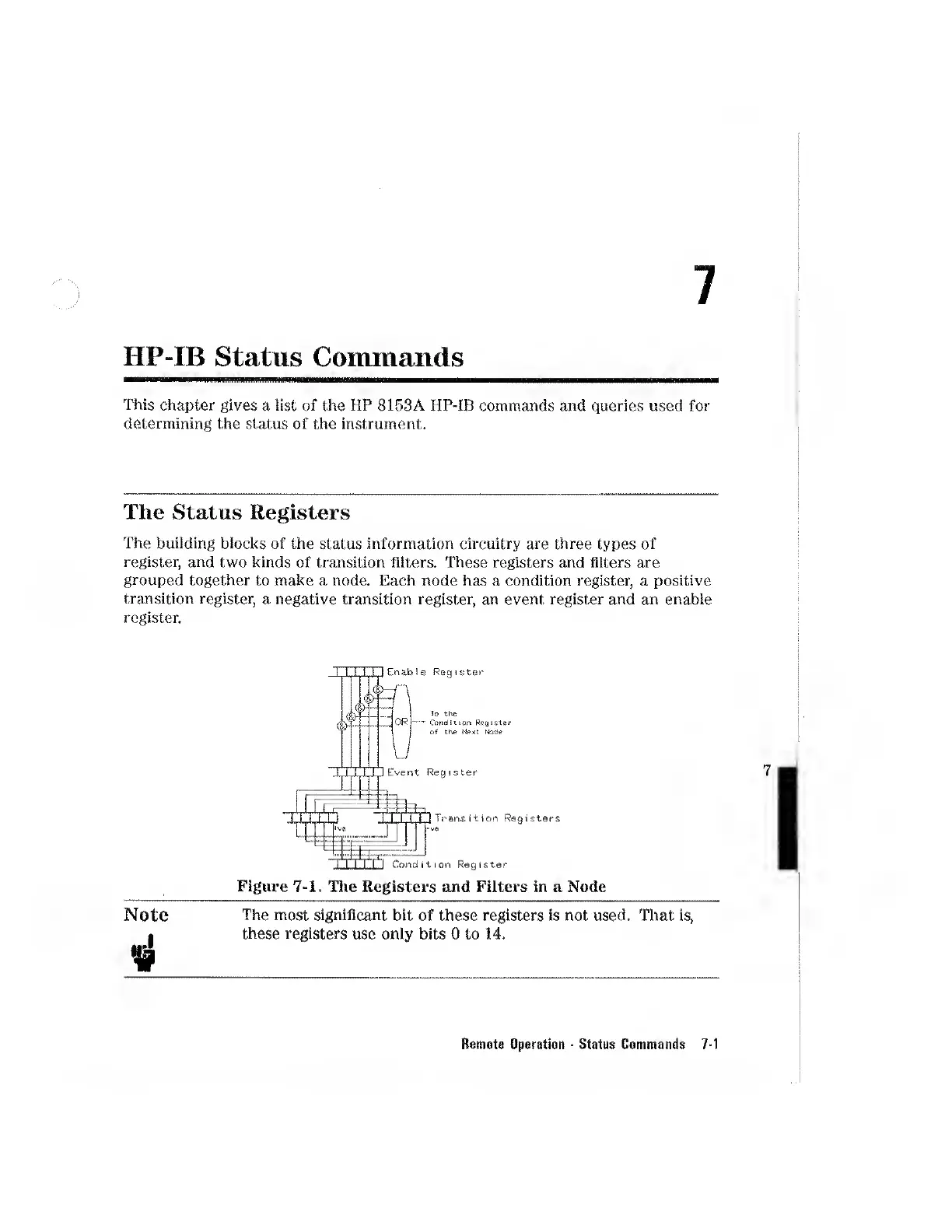

Figure 7-1. The Eegisters and Filters in a Node
Note The most significant bit of these registers is not used. That is,
I these registers use only bits 0 to 14.
Remote Operation ■ Status Commands 7-1
