HP 8153A - Page 155

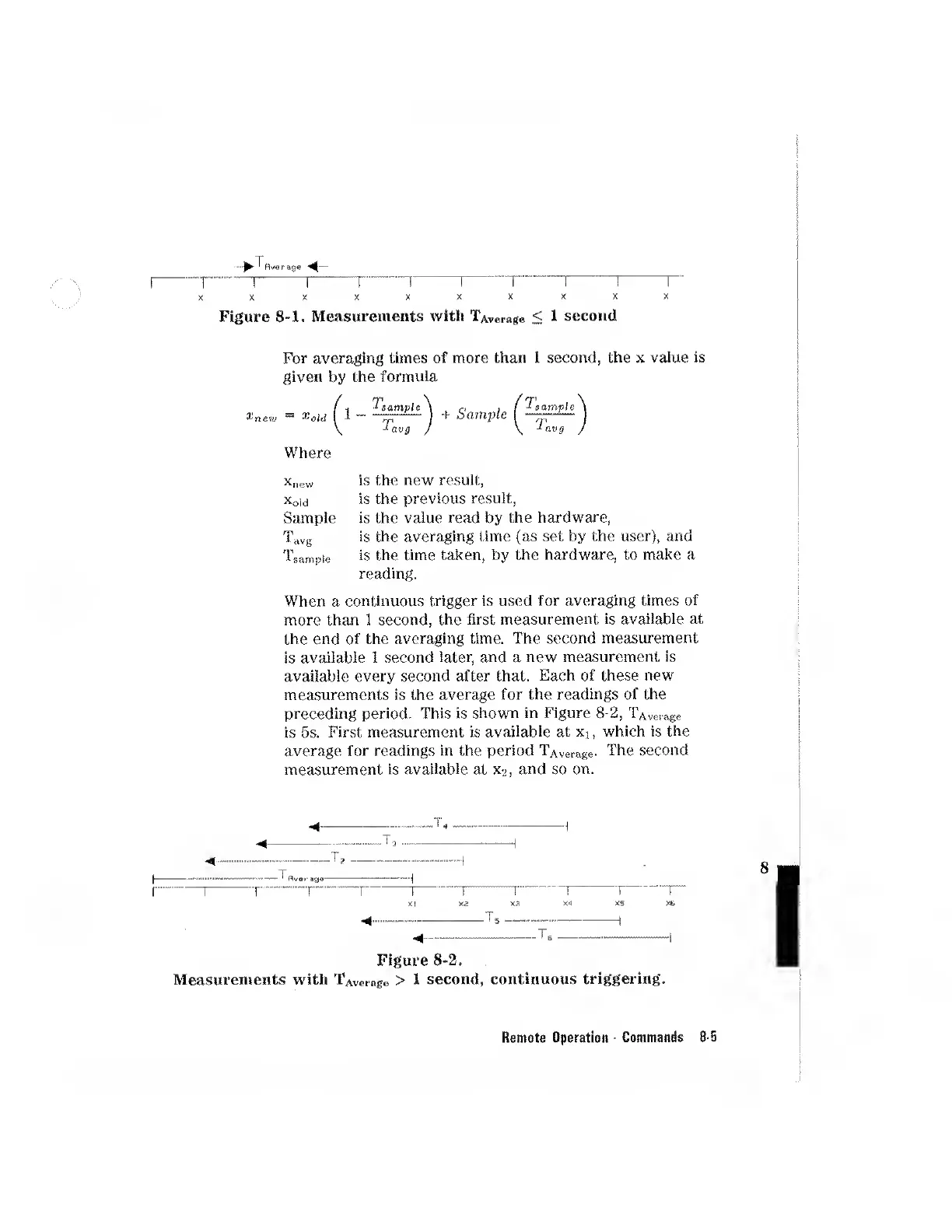

Figure 8-1. Measurements with TAverago < 1 second
For averaging times of more than 1 second, the x value is
given by the formula
'^'sample] . / ■ ^samplc\
I-+ Sample .—
-iavg / \ -^avg J
Where
Knew is tho uBw result,
Xoid is the previous result,
Sample is the value read by the hardware,
Tavg is the averaging lime {as set by the user), and
Tsampie is the time taken, by the hardware, to make a
reading.
When a continuous trigger is used for averaging times of
more than 1 second, the first measurement is available at
the end of the averaging time. The second measurement
is available I second later, and a new measurement is
available every second after that. Each of these new
measurements is the average for the readings of the
preceding period. This is shown in Figure 8-2, TAverage
is 5s. First measurement is available at Xi, which is the
average for readings in the period TAverage- The second
measurement is available at X 2 , and so on.
Figure 8-2.
Measurements with TAvemgo > 1 second, continuous triggering.
Remote Operation ■ Commands 8-5
