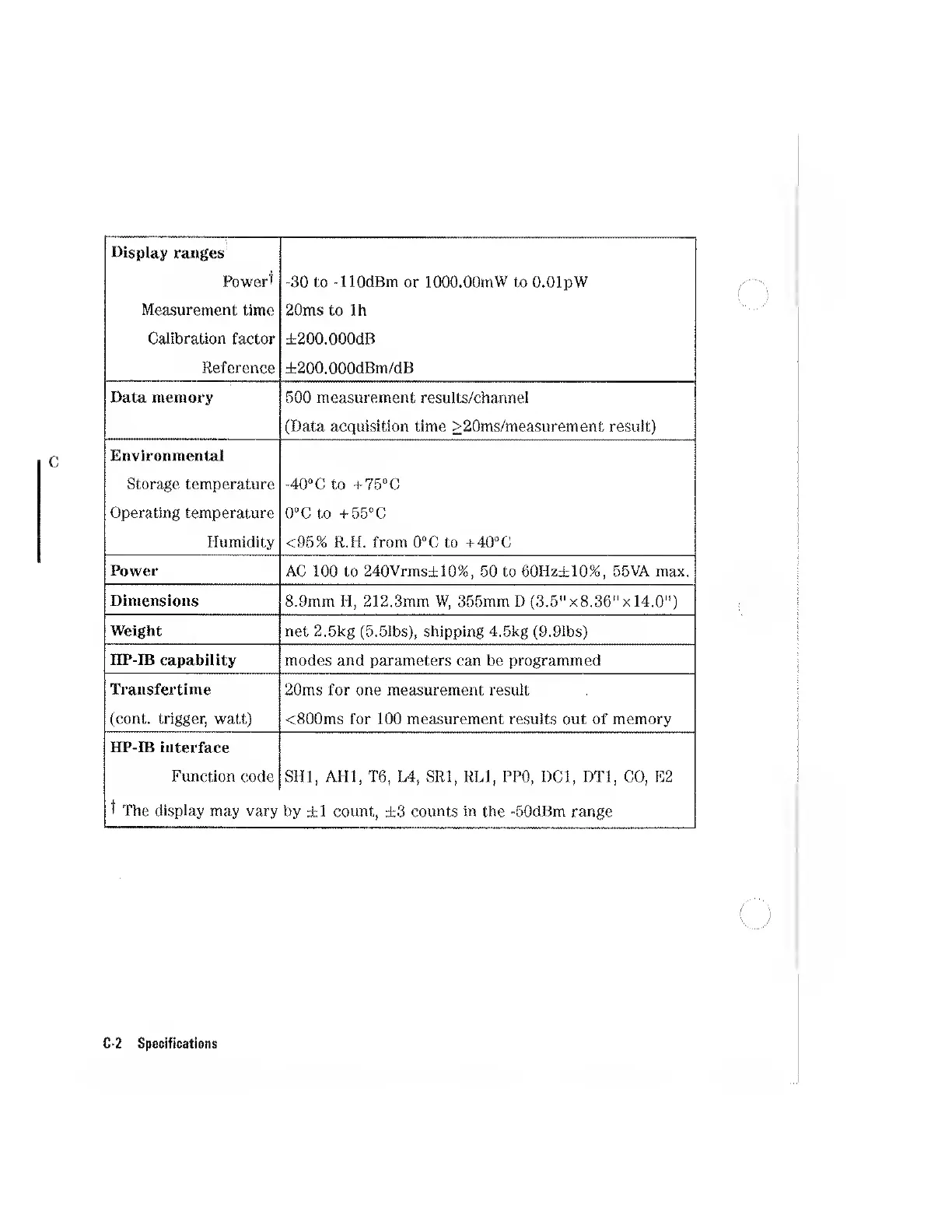

Display ranges
Fowert
Measurement time
Calibration factor
Reference
-30 to -llOdBm or lOOO.OOmW to O.OlpW
20ms to Ih
±200.000dB
±200.000dBm/dB
Data memory
500 measurement results/channel
(Data acquisition time >20ms/measurement result)
Environmental
Storage temperature
Operating temperature
Humidity
-40° C to +75°C
0°C to +55°C
<95% R.H. from 0°C to +40°G
Power
AC 100 to 240Vrms±10%, 50 to 60Hz±10%, 55VA max.
Dimensions
8.9mm H, 212.3mm W, 355mm D (3.5"x8.36"xl4.0'*)
Weight
net 2.5kg (5.51bs), shipping 4.5kg (9.91bs)
HP-IB capability
modes and parameters can be programmed
Traiisfertime
(cont. trigger, watt)
20ms for one measurement result
<800ms for 100 measurement results out of memory
HP-IB interface
Function code
^ The display may vary
SHI, AHl, T6, L4, SRI, RLl, PPO, DCl, DTI, CO, E2
by ±1 count, ±3 counts in the -50dBm range
C-2 Specifications
