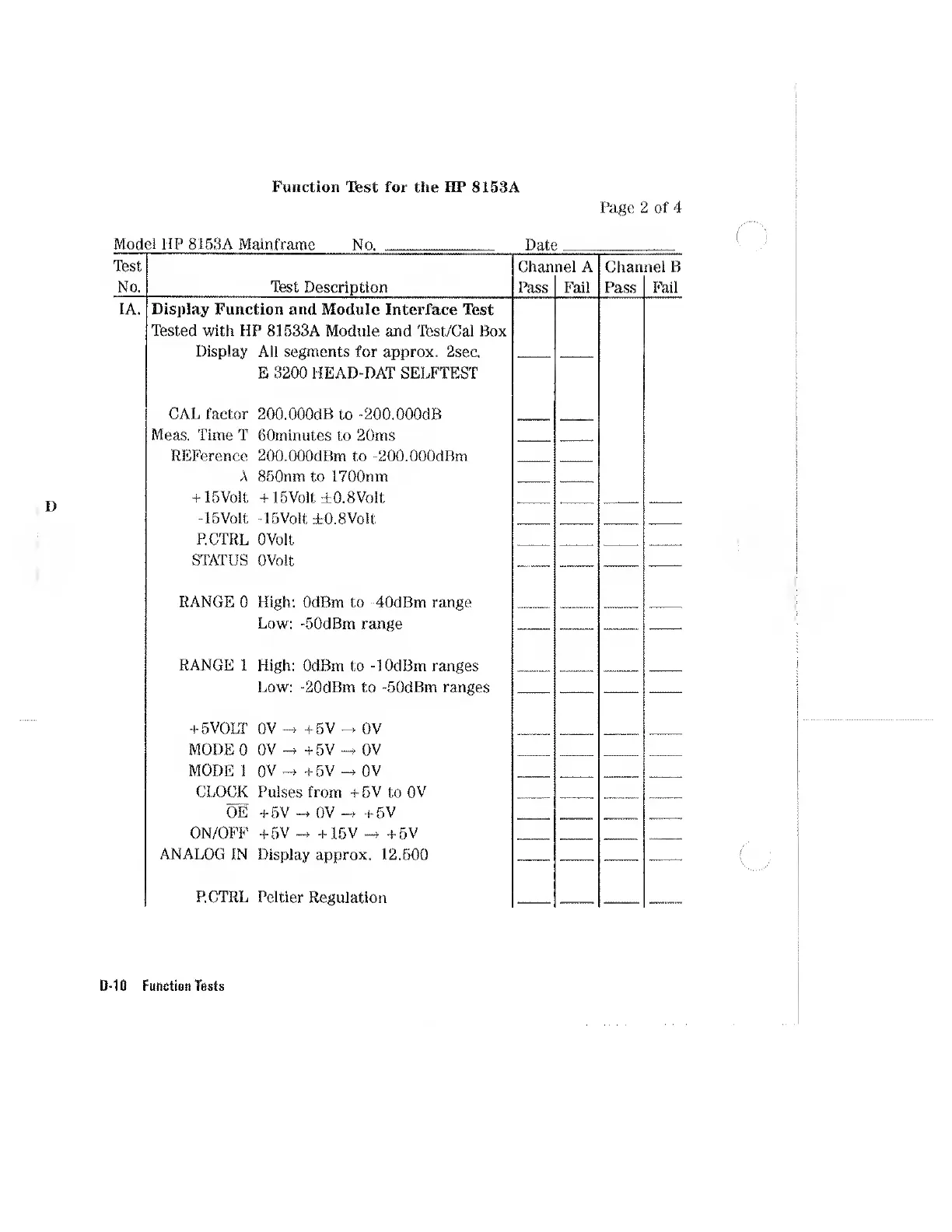

Function Test for the HP 8153A
Pag(^ 2 of 4
Model HP 8i53A Mainframe
No. Date
Test
No.
Ttest Description
Channel A
Pass I Fail
Channel B
Pass I Fail
lA.
Display Function and Module Interface Test
Tested with HP 81533A Module and 'Ihst/Cal Box
Display All segments for approx. 2sec.
E 3200 HEAD-DAT SELFTEST
CAL factor 200.000dB to -200.000dB
Meas. Time T GOminutes to 20ms
REFerence 200.000dBm to -200.000dBm
A 850nm to ITOOnm
+ 16Volt +]5Volt±0.8Voit
-ISVolt -16Voit±0.8Volt
P.CTRL OVolt
STATUS OVolt
RANGE 0 High: OdBm to -40dBm range
Low: -50dBm range
RANGE 1 High: OdBm to -lOdBm ranges
Low: -20dBm to -50dBm ranges
+ 5VOLT OV ^ +5V ^ OV
MODEO 0V~. +6V-.0V
MODEl OV^ +5V-.0V
CLOCK Pulses from +5V to OV
OE -I-5V OV +5V
ON/OFF +6V +15V -t-OV
ANALOG IN Display approx. 12.500
P.CTRL Peltier Regulation
D-1D Function Tests
