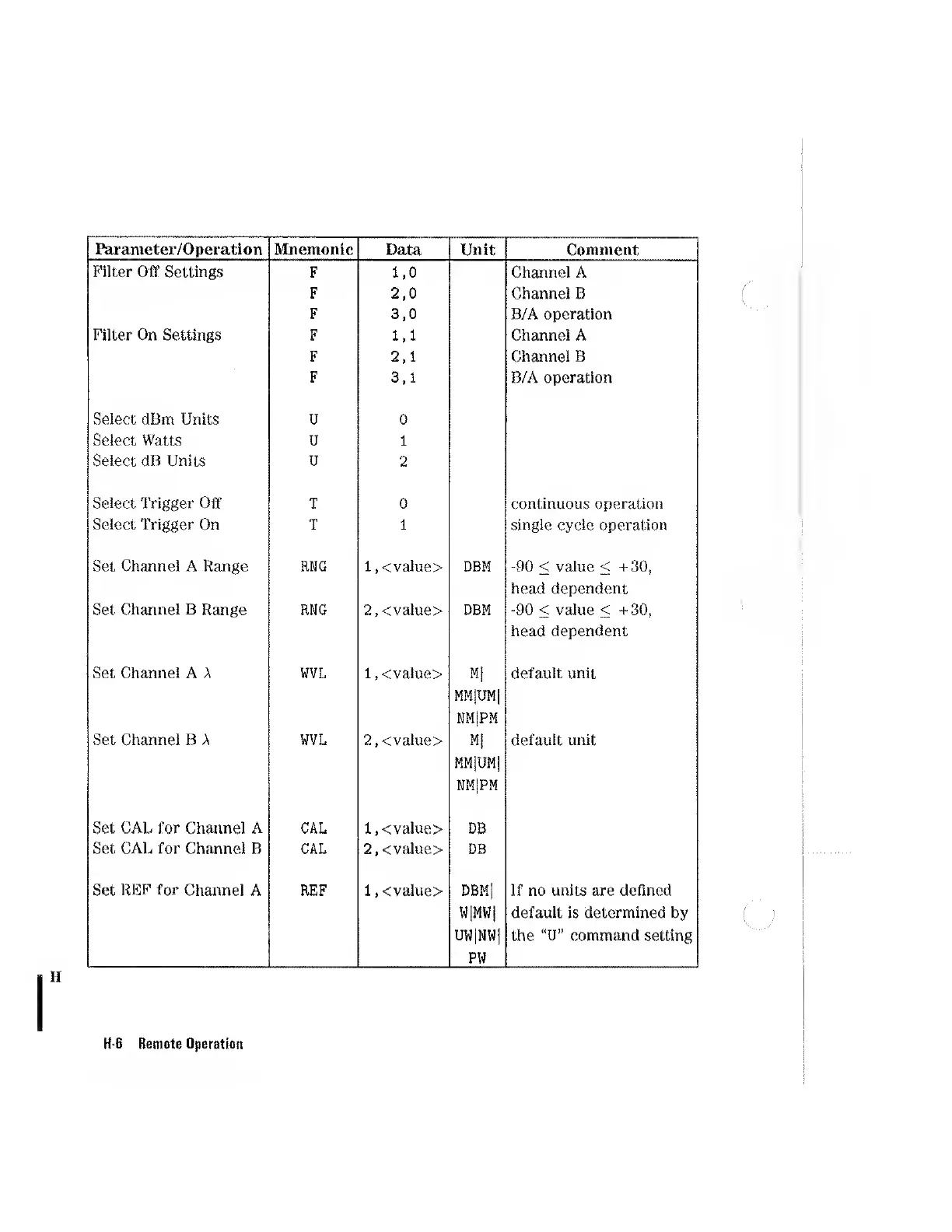

HP 8153A - Page 256

Paiameter/Operation
Mnemonic Data
Unit Comment
Filter Off Settings
F
1>0
Channel A
F 2,0
Channel B
F 3,0
B/A operation
Filter On Settings F 1,1
Channel A
F 2,1
Channel B
F
3,1
B/A operation
Select dBm Units U 0
Select Watts U 1
Select dB Units
u
2
Select Trigger Off T 0
continuous operation
Select Trigger On T 1
single cycle operation
Set Channel A Range RWG 1,< value > DBM -90 < value < -+-30,
head dependent
Set Channel B Range RNG
2,<value>
DBM -90 < value < +30,
head dependent
Set Channel A A WVL
l,<value>
M| default unit
MM|UM|
NMjPM
Set Channel B A
WVL
2,<value>
M|
default unit
MMjUMI
HMiPM
Set CAL for Channel A CAL
l,<value>
DB
Set CAL for Channel B CAL
2,<value>
DB
Set REF for Channel A REF
l,<value>
DBMl If no units are defined
W|MWi default is determined by
UW|NW| the "U” command setting
PW
H-6 Remote Operation
