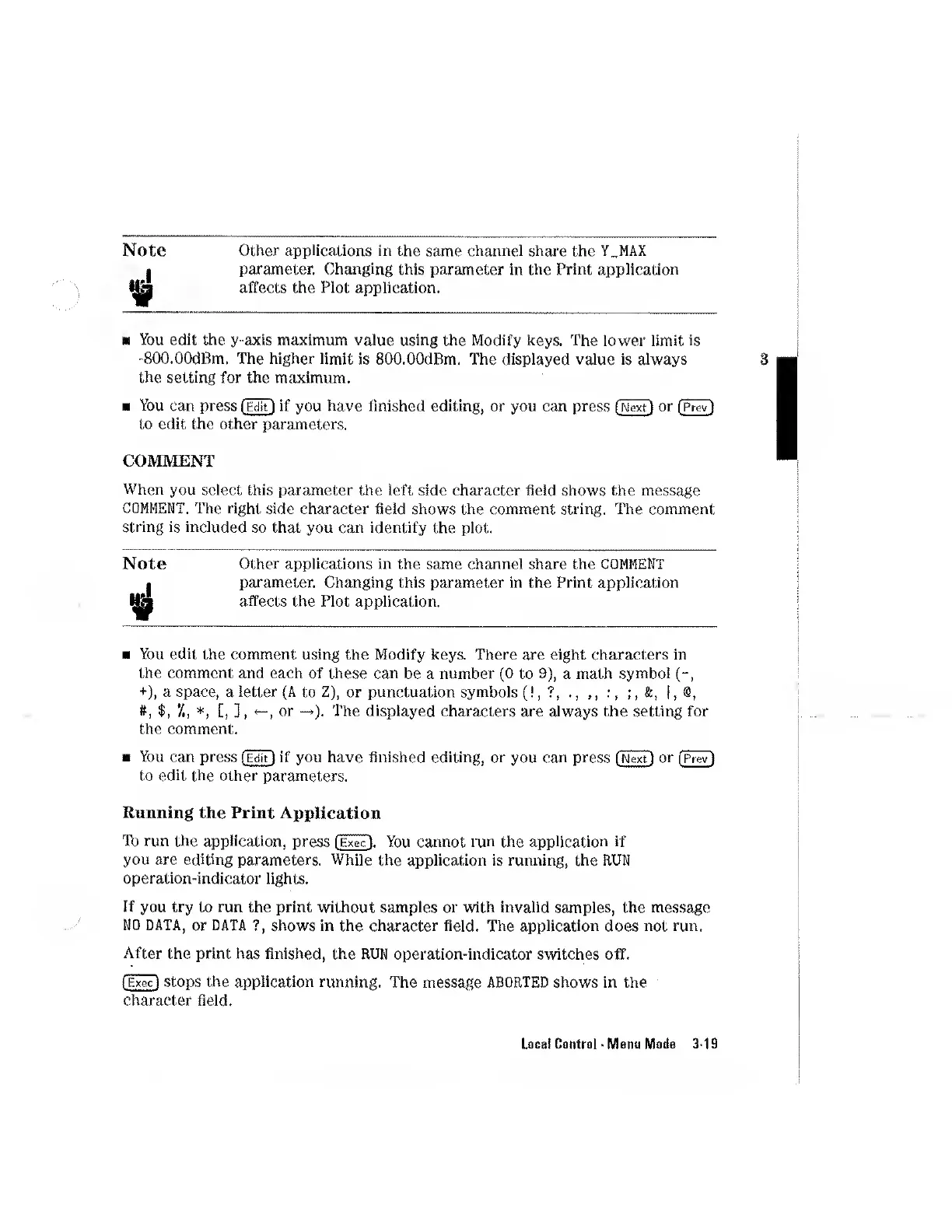

Note
Other applications in the same channel shai'e the Y_MAX
parameter Changing this parameter in the Print application
affects the Plot application.
■ You edit the y-axis maximum value using the Modify keys. The lower limit is
'SOO.OOdBm. The higher limit is SOO.OOdBm. The displayed value is always
the setting for the maximum.
■ You can press (Editl if you have finished editing, or you can press or
to edit the other parameters.
COMMENT
When you select this parameter the left side character field shows the message
COMMENT. The right side character field shows the comment string. The comment
string is included so that you can identify the plot.
Note Other applications in the same channel share the COMMENT
parameter. Changing this parameter in the Print application
affects the Plot application.
■ You edit the comment using the Modify keys. There are eight characters in
the comment and each of these can be a number (0 to 9), a math symbol (-,
+), a space, a letter (A to Z), or punctuation symbols (!, ?, ,, j,@,
$, '/•, *, C, ], , or —*). The displayed characters are always the setting for
the comment.
■ You can press [Edit] if you have finished editing, or you can press (Next) or (Prevl
to edit the other parameters.
Running the Print Application
To run the application, press (Exed . You cannot run the application if
you are editing parameters. While the application is running, the RUN
operation-indicator lights.
If you try to run the print without samples or with invalid samples, the message
NO DATA, or DATA ?, shows in the character field. The application does not run.
After the print has finished, the RUN operation-indicator switches off.
( Exec ) stops the application running. The message ABORTED shows in the
character field.
Local Control - Menu Mode 3-19
