Service
ERROR
CODES
500
SERIES
Errors
in
this
series
indicate
a
problem
in
the
A5
Processor
Assembly.
Py
PROCESSOR
ASSEMBLY
AS
Summary
Description
The
Processor
controls
the
operation
of
the
instrument.
Phase
At Display/
Keyboard
Jt
P = Power
D/C/P
=
Data/Control/Power

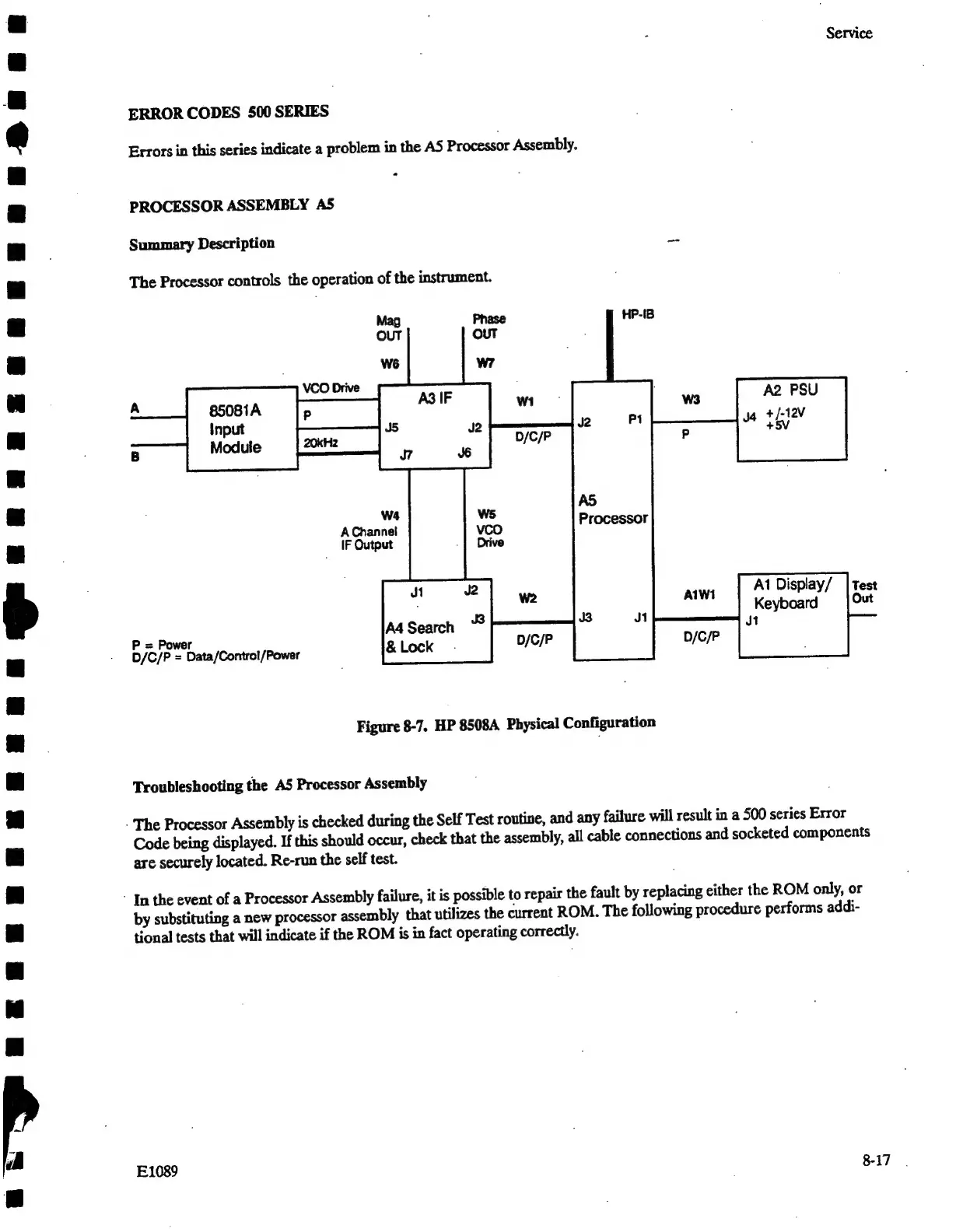

Figure
8-7.
HP
8508A
Physical
Configuration
Troubleshooting
the
A5
Processor
Assembly
.
The
Processor
Assembly
is
checked
during
the
Self
Test
routine,
and
any
failure
will
result
in
a
500
series
Error
Code
being
displayed.
If
this
should
occur,
check
that
the
assembly,
all
cable
connections
and
socketed
components
are
securely
located.
Re-run
the
self
test.
-
In
the
event
of
a
Processor
Assembly
failure,
it
is
possible
to
repair
the
fault
by
replacing
either
the
ROM
only,
or
by
substituting
a
new
processor
assembly
that
utilizes
the
current
ROM.
The
following
procedure
performs
addi-
tional
tests
that
will
indicate
if
the
ROM
is
in
fact
operating
correctly.
E1089
8-17
