Operation
3-10 TYPICAL CONFIGURATIONS
Probing measurements with external source
I
!
I
I
l
I
Probe Tee t
|
t
t
l
I
Circuit Under Test

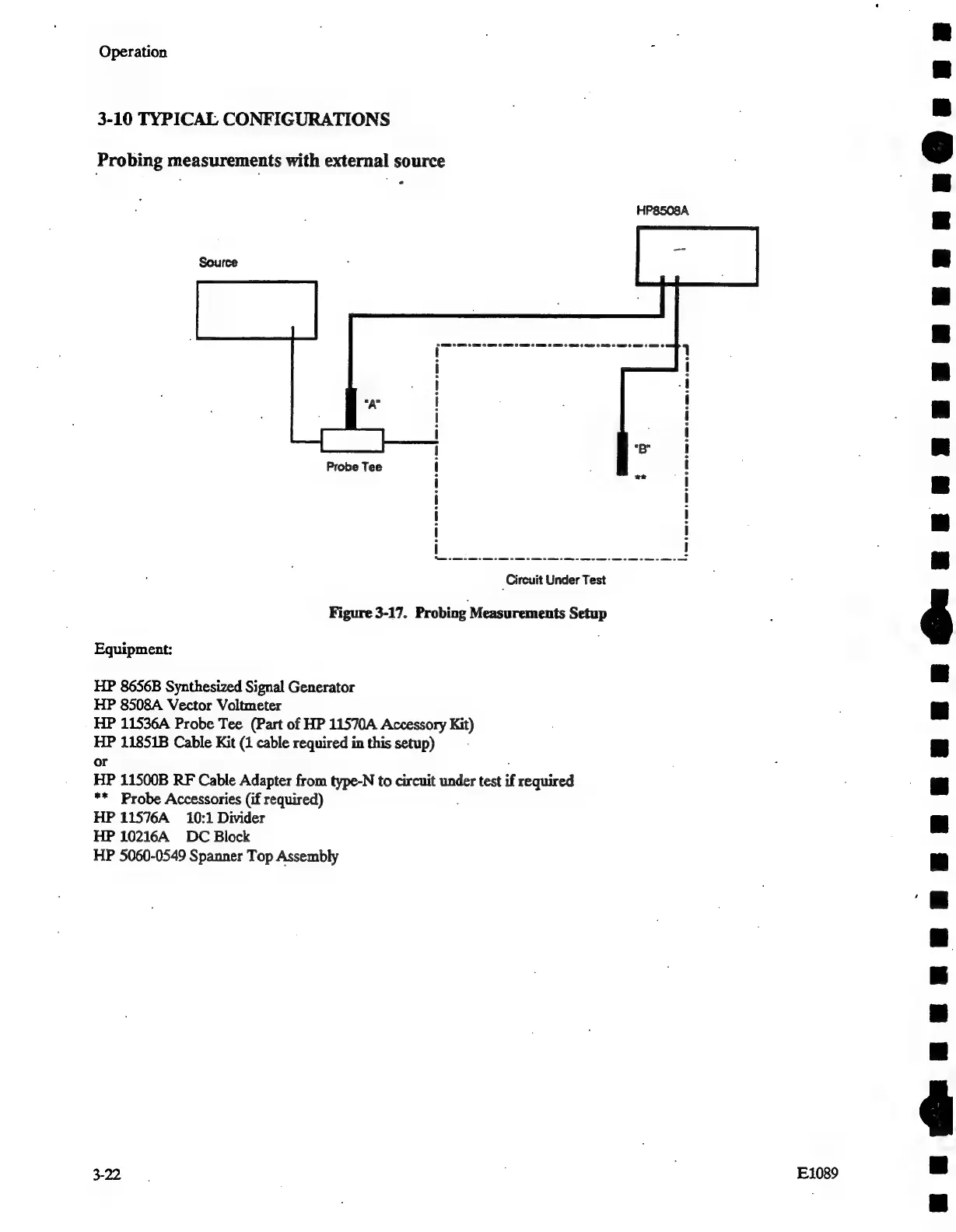

Figure 3-17. Probing Measurements Setup
Equipment:
HP 8656B Synthesized Signal Generator
HP 8508A Vector Voltmeter
HP 11536A Probe Tee (Part of HP 11570A Accessory Kit)
HP 11851B Cable Kit (1 cable required in this setup)
or
HP 11500B RF Cable Adapter from type-N to circuit under test if required
** Probe Accessories (if required)
HP 11576A 10:1 Divider
HP 10216A DC Block
HP 5060-0549 Spanner Top Assembly
3-22
