Operation
.
Transmission
measurements
in
50
ohms
-
Probe
inputs
Device Under Test
Termination
Probe Tee : CAL ; Probe Tee

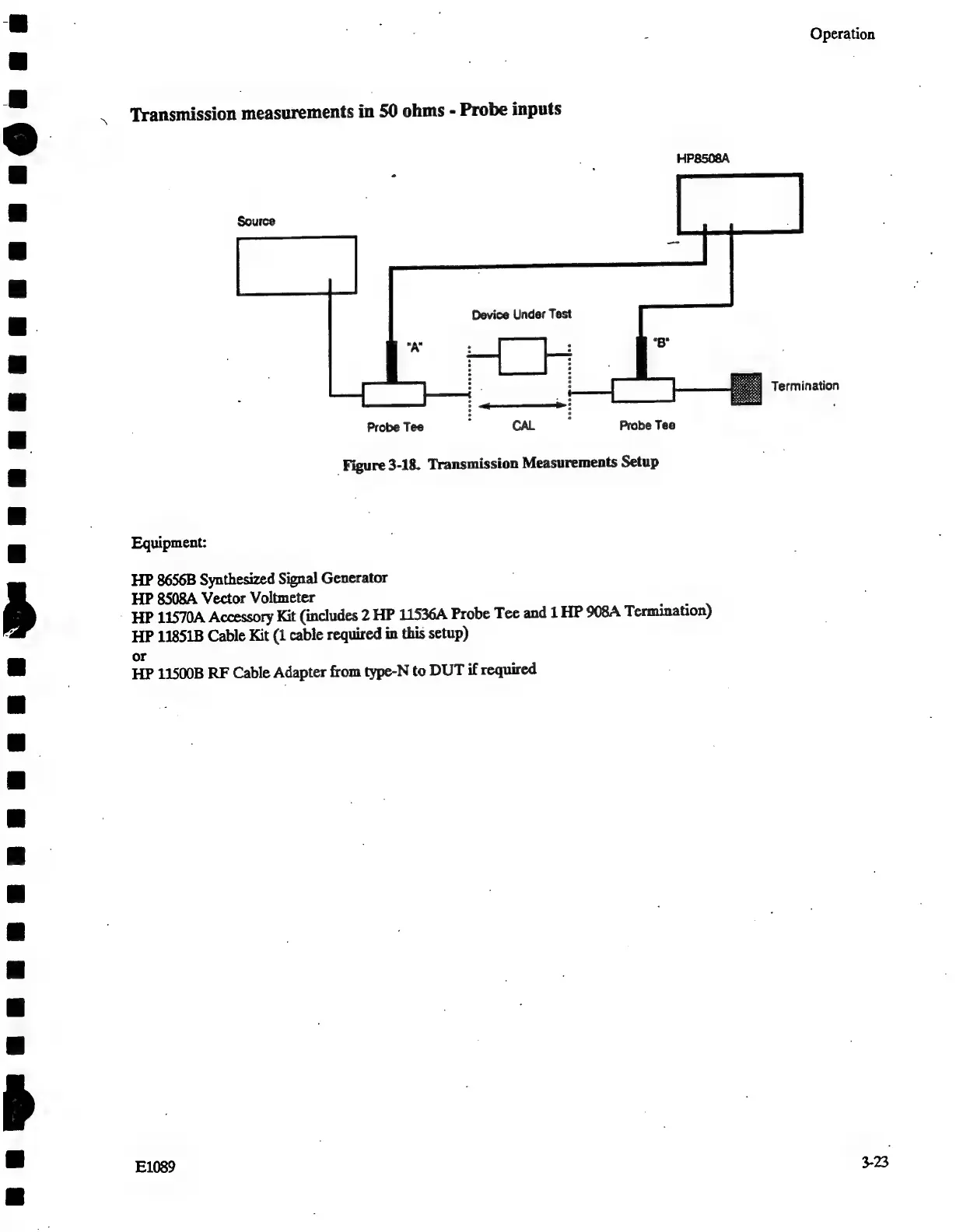

Figure
3-18.
Transmission
Measurements
Setup
Equipment:
HP
8656B
Synthesized
Signal
Generator
HP 8508A Vector Voltmeter
-
HP
11570A
Accessory
Kit
(includes
2
HP
11536A
Probe
Tee
and
1
HP
908A
Termination)
HP
11851B
Cable
Kit
(1
cable
required
in
this
setup)
or
HP
11500B
RF
Cable
Adapter
from
type-N
to
DUT
if
required
E1089
3-23
