Operation
Transmission measurements in 50 ohms - Direct inputs
Power Splitter : CAL

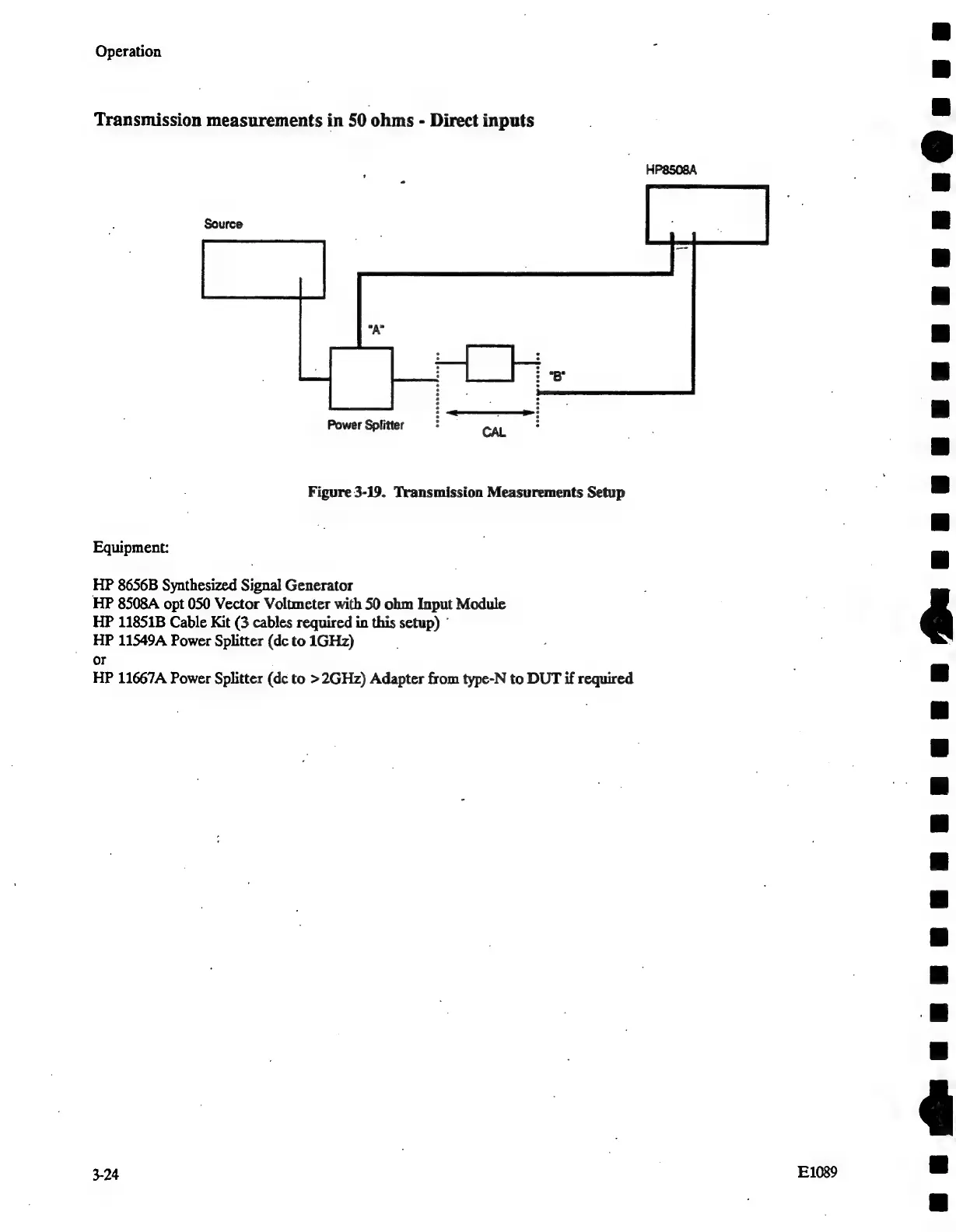

Figure 3-19. Transmission Measurements Setup
Equipment:
HP 8656B Synthesized Signal Generator
HP 8508A opt 050 Vector Voltmeter with 50 ohm Input Module
HP 11851B Cable Kit (3 cables required in this setup) ©
HP 11549A Power Splitter (dc to 1GHz)
or
HP 11667A Power Splitter (de to >2GHz) Adapter from type-N to DUT if required
