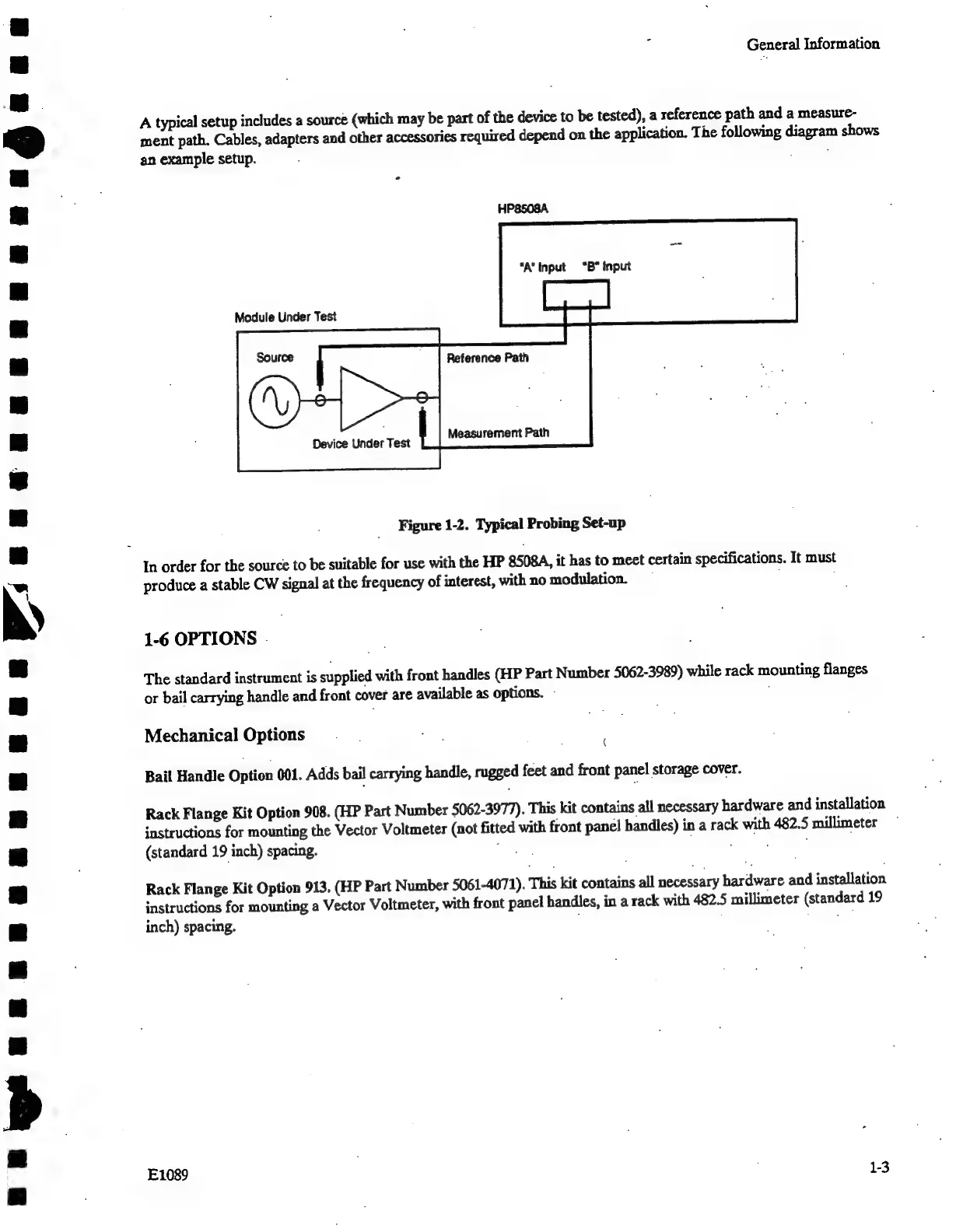

HP 8508A - Page 13

a 2 A hole
é General Information
A
typical
setup
includes
a
source
(which
may
be
part
of
the
device
to
be
tested),
a
reference
path
and
a
measure-
ment
path.
Cables,
adapters
and
other
accessories
required
depend
on
the
application.
The
following
diagram
shows
an example setup.
HP8S08A
“B" Input
"A’ Input
Module Under Test
Reference Path
Device
Under
Test
Mesaiement
eat
Figure
1-2.
Typical
Probing
Set-up
In
order
for
the
source
to
be
suitable
for
use
with
the
HP
8508A,
it
has
to
meet
certain
specifications.
It
must
produce
a
stable
CW
signal
at
the
frequency
of
interest,
with
no
modulation.
,
1-6 OPTIONS .
The
standard
instrument
is
supplied
with
front
handles
(HP
Part
Number
5062-3989)
while
rack
mounting
flanges
or
bail
carrying
handle
and
front
cover
are
available
as
options.
-
Mechanical
Options
—
aS
1.
|
Bail
Handle
Option
001.
Adds
bail
carrying
handle,
rugged
feet
and
front
panel
storage
cover.
Rack
Flange
Kit
Option
908.
(HP
Part
Number
5062-3977).
This
kit
contains
all
necessary
hardware
and
installation
instructions
for
mounting
the
Vector
Voltmeter
(not
fitted
with
front
panel
handles)
in
a
rack
with
482.5
millimeter
(standard 19 inch) spacing.
Rack
Flange
Kit
Option
913.
(HP
Part
Number
5061-4071).
This
kit
contains
all
necessary
hardware
and
installation
instructions
for
mounting
a
Vector
Voltmeter,
with
front
panel
handles,
in
a
rack
with
482.5
millimeter
(standard
19
inch)
spacing.
,
:
2
E1089
13
