HP 8719/20/22ES Specifications and Characteristics
Corrected System Performance (HP 8719/20ES)
Table 1-4 3.5-mm Device Connector Type
Network Analyzer: HP 8719ES/20ES, Standard
Calibration Kit: HP 85052B (3.5-mm, 50 Ω)
Cables: HP 85131F
Calibration: Full 2-Port
IF BW = 10 Hz, Avg off, Temp = 23 ± 3°C with < 1°C deviation from cal temp, Isol cal with avg = 8
Description Specification
50 to 500 MHz 0.5 to 2 GHz 2 to 8 GHz 8 to 20 GHz
Directivity (dB) 48 48 44 44
Source Match (dB) 40 40 33 31
Load Match (dB) 48 48 44 44
Refl. Tracking
Magnitude (dB) ±(0.006 + .02/°C) ±(0.006 + .03/°C) ±(0.006 + .03/°C) ±(0.008 + .04/°C)
Phase (deg) ±(0.040 + 0.1/°C) ±(0.040 + 0.1/°C) ±(0.040 + 0.3/°C) ±(0.053 + 0.5/°C)
Trans. Tracking
Magnitude (dB) ±(0.017 + .02/°C) ±(0.018 + .03/°C) ±(0.066 + .03/°C) ±(0.099 + .04/°C)
Phase (deg) ±(0.112 + 0.1/°C) ±(0.119 + 0.1/°C) ±(0.436 + 0.3/°C) ±(0.653 + 0.5/°C)

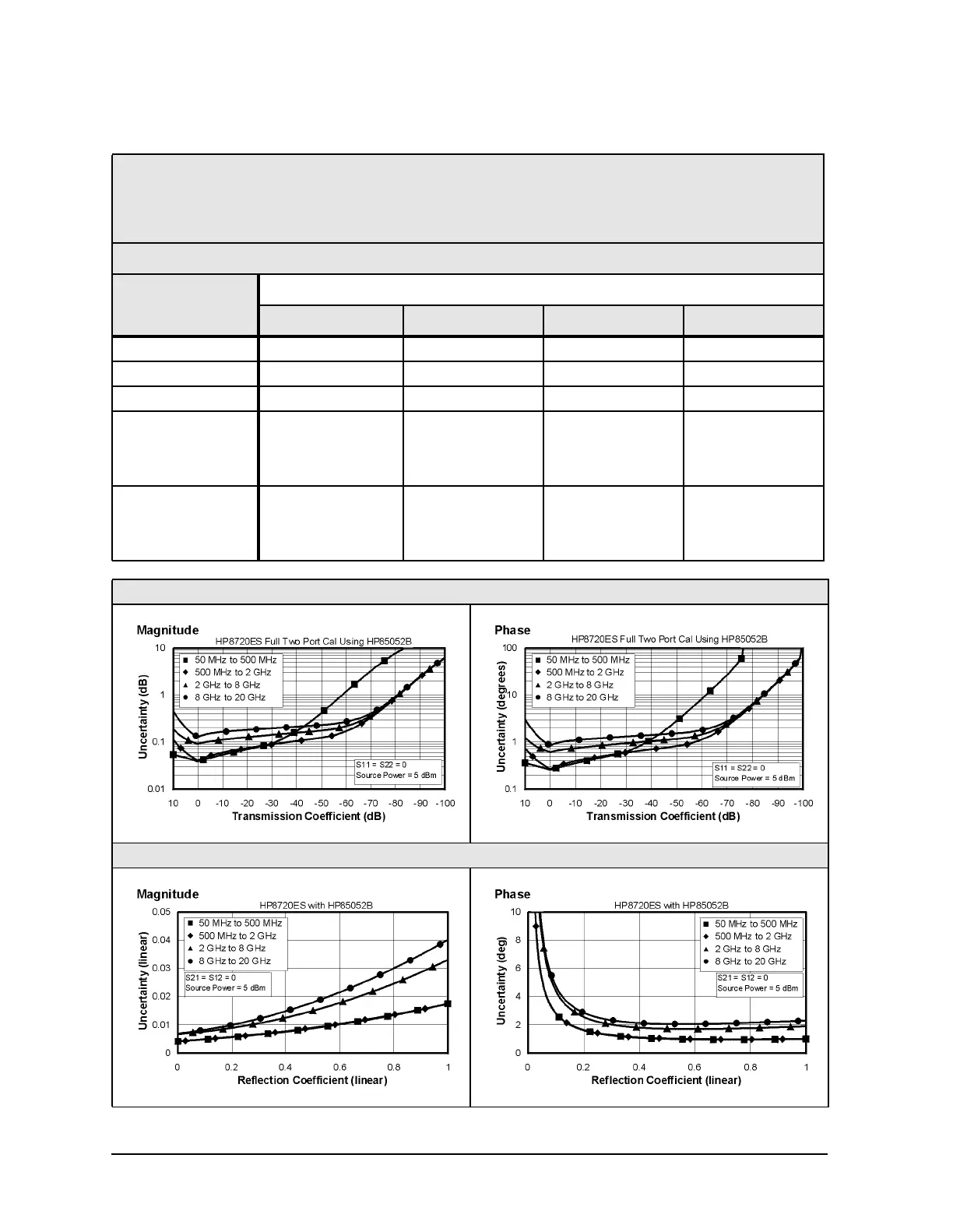

Transmission Uncertainty (Specification)
Reflection Uncertainty (Specification)
