1-7

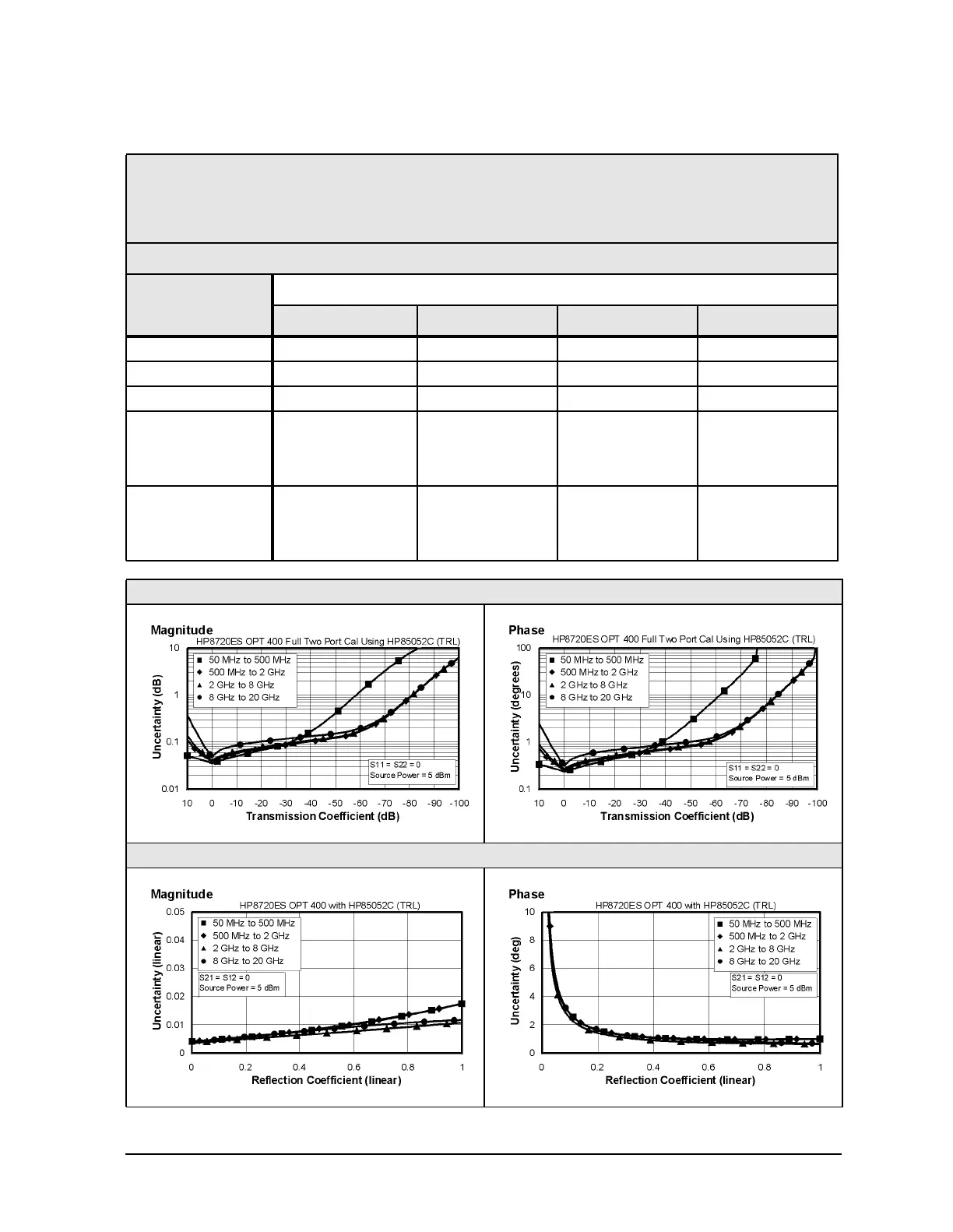

HP 8719/20/22ES Specifications and Characteristics
Corrected System Performance (HP 8719/20ES)
Table 1-5 3.5-mm Device Connector Type
Network Analyzer: HP 8719ES/20ES, Option 400
Calibration Kit: HP 85052C (3.5-mm, 50 Ω)
Cables: HP 85131F
Calibration: TRL
IF BW = 10 Hz, Avg off, Temp = 23 ± 3°C with < 1°C deviation from cal temp, Isol cal with avg = 8
Description Specification
50 to 500 MHz 0.5 to 2 GHz 2 to 8 GHz 8 to 20 GHz
Directivity (dB) 48 48 50 50
Source Match (dB) 40 40 50 50
Load Match (dB) 48 48 50 50
Refl. Tracking
Magnitude (dB) ±(0.006 + .02/°C) ±(0.006 + .03/°C) ±(0.005 + .03/°C) ±(0.005 + .04/°C)
Phase (deg) ±(0.040 + 0.1/°C) ±(0.040 + 0.1/°C) ±(0.033 + 0.3/°C) ±(0.033 + 0.5/°C)
Trans. Tracking
Magnitude (dB) ±(0.013 + .02/°C) ±(0.017 + .03/°C) ±(0.016 + .03/°C) ±(0.019 + .04/°C)
Phase (deg) ±(0.086 + 0.1/°C) ±(0.112 + 0.1/°C) ±(0.107 + 0.3/°C) ±(0.125 + 0.5/°C)
Transmission Uncertainty (Specification)
Reflection Uncertainty (Specification)
